MAGNETO (DS185C ~F.NO.104239)
DS185 1980 (T) USA (E03)

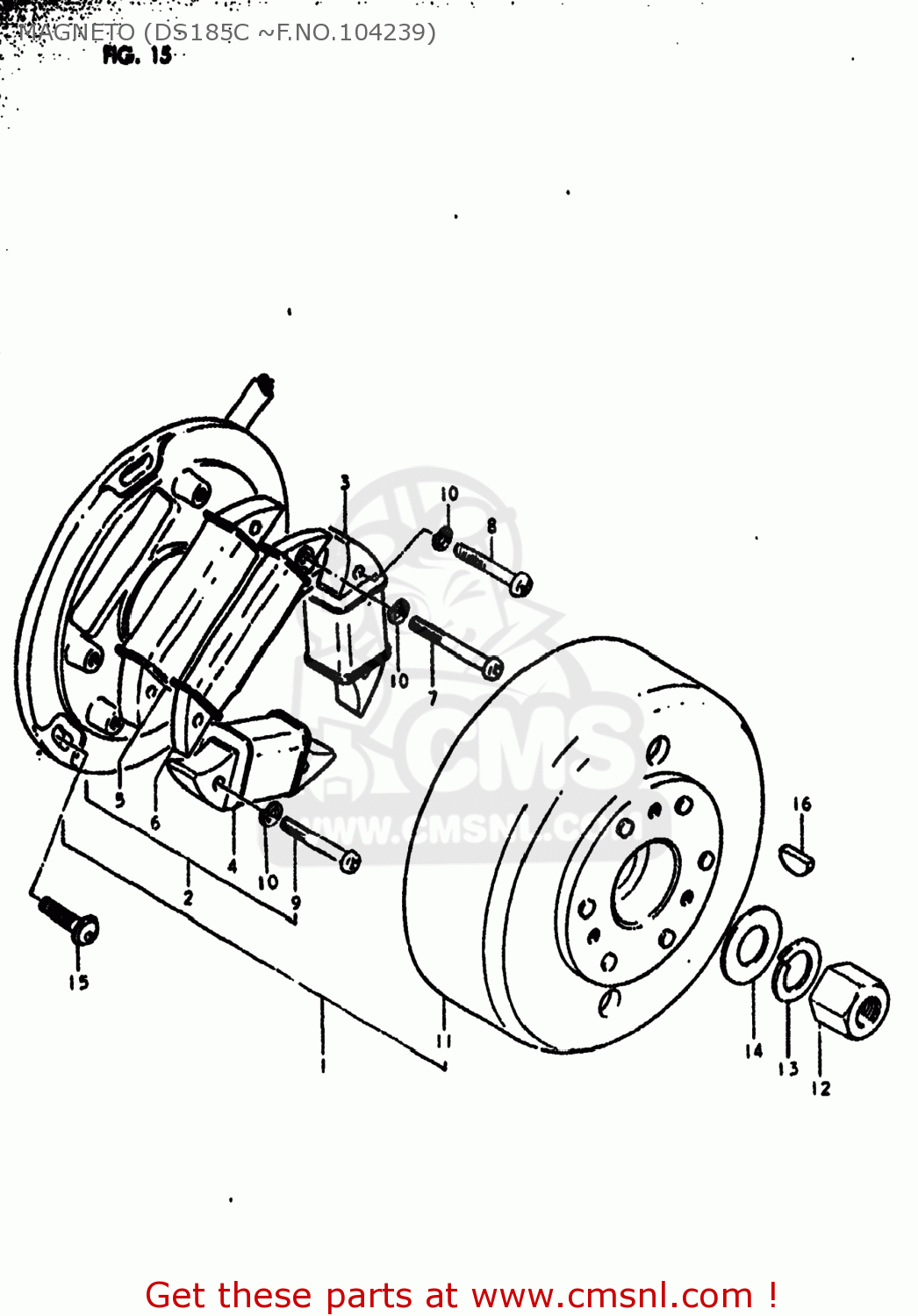

Magneto (ds185c ~f.no.104239) diagram DS185 1980 (T) USA (E03)
MAGNETO (DS185C ~F.NO.104239) DS185 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210029420
ref: 1
32101-29420
MAGNETO ASSEMBLY
€ 135.50
2
3210129420
ref: 2
STATOR ASSEMBLY
€ 135.50
3
3212029420
ref: 3
COIL,LIGHTING
€ 26.50
4
3212529420
ref: 4
COIL
€ 25.50
5
3214032020
ref: 5
32140-32021
COIL
€ 224.50
6
3215032020
ref: 6
COIL,PULSER
€ 210.50
7
0211105357
ref: 7
02112-05357
SCREW 5X35
€ 1.50
8
0211205308
ref: 8
02112-0530A
SCREW
€ 1.50
9
0211205208
ref: 9
02112-05207
SCREW 5X20
€ 3.00
10
0832121058
ref: 10
08321-0105A
LOCK WASHER
€ 2.00
11
3210229420
ref: 11
ROTOR ASSEMBLY
€ 142.50
12
0914014011
ref: 12
NUT
€ 3.50
13
0832121148
ref: 13
08321-0114A
LOCK WASHER
€ 2.00
14
0916014015
ref: 14
WASHER(14X27X3)
€ 4.00
15
0913905011
ref: 15
SCREW(5X14)
€ 3.00
16
0834131049
ref: 16
09420-04008
KEY 4MM
€ 3.50
