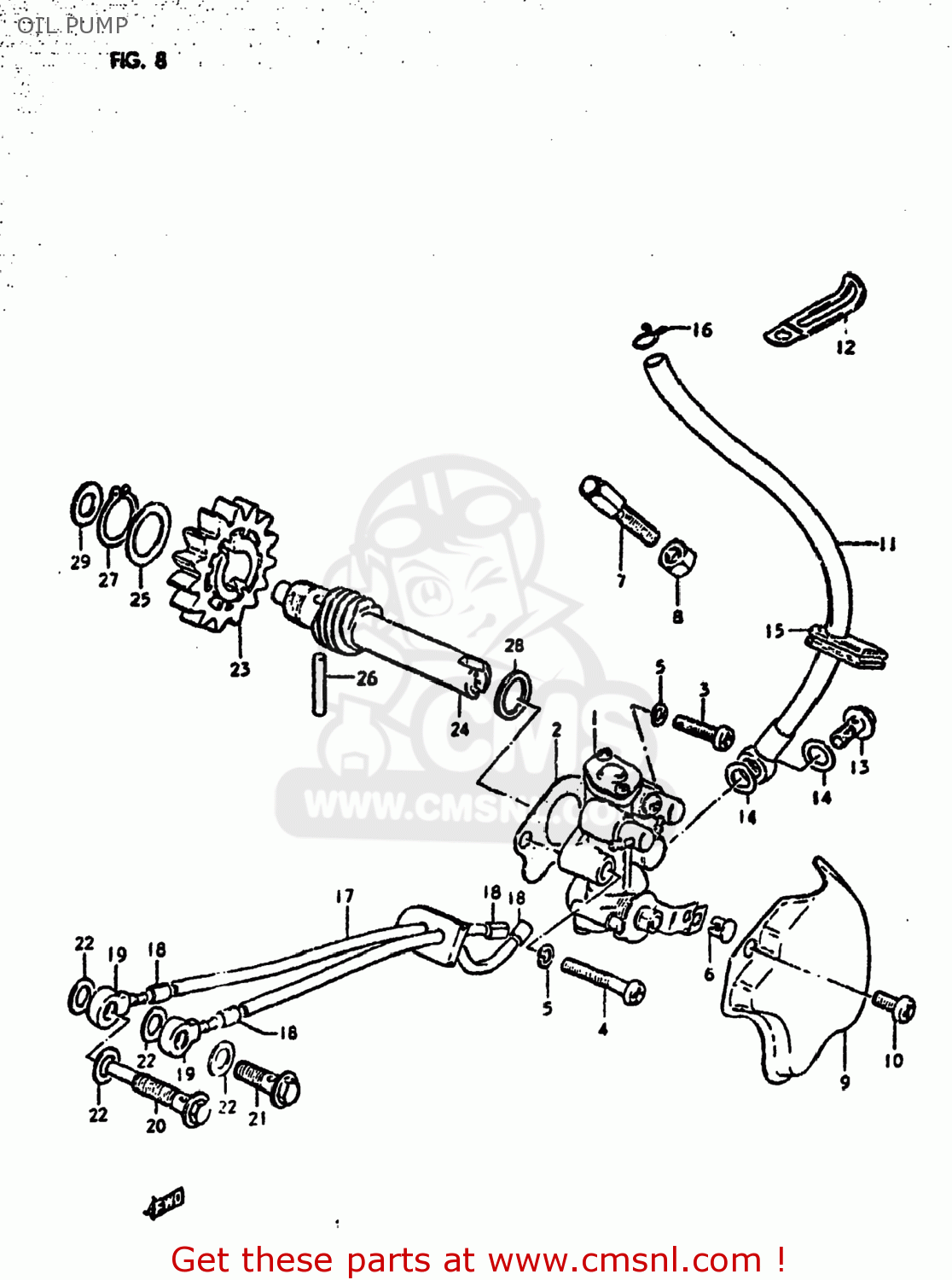

OIL PUMP

ref

part #

description

quantity

1

1610030910
ref: 1
16100-30911

PUMP ASSEMBLY,OIL

€ 272.50

2

1673103101
ref: 2

GASKET,OIL PUMP (NAS)

€ 2.50

3

0211205168
ref: 3
02112-05167

SCREW

€ 2.50

4

0211205308
ref: 4
02112-0530A

SCREW

€ 1.50

5

0832121058
ref: 5
08321-0105A

LOCK WASHER

€ 2.00

6

1629203111
ref: 6
16292-03112

TERMINAL,CABLE

€ 3.50

7

0911908014
ref: 7

BOLT

€ 3.50

8

0831012088
ref: 8
08310-00087

NUT

€ 2.00

9

1138530000
ref: 9

CAP,OIL PUMP INSPECTION

€ 17.00

10

0211206108
ref: 10
02112-06107

SCREW

€ 1.50

11

1681030500
ref: 11
16810-07520

HOSE,OIL NO.1

€ 17.50

12

0940410403
ref: 12
09404-10205

CLAMP

€ 2.50

13

0936006003
ref: 13

UNION BOLT

€ 5.00

14

0916806004
ref: 14

GASKET(6.2X11X1).2 (NAS)

€ 1.50

15

0930908002
ref: 15

GROMMET

€ 3.00

16

0940108401
ref: 16

CLIP

€ 1.50

17

1682030500
ref: 17

HOSE,OIL NO.2

€ 5.50

18

0940104401
ref: 18

CLIP

€ 2.50

19

0936302001
ref: 19
09363-02002

UNION

€ 8.00

20

0936006009
ref: 20

UNION

€ 7.00

21

0936006003
ref: 21

UNION BOLT

€ 5.00

22

0916806004
ref: 22

GASKET(6.2X11X1).2 (NAS)

€ 1.50

23

1632130030
ref: 23

GEAR,OIL PUMP DRIVE

€ 21.00

24

1632230001
ref: 24

SHAFT,OIL PUMP IDLE GEAR

€ 2.00

25

0821114241
ref: 25

WASHER, INNER

€ 1.50

26

0926104005
ref: 26

ROLLER(4X23.8)

€ 1.50

27

0833111149
ref: 27
08331-3114A

CIRCLIP

€ 2.00

28

0821112202
ref: 28

WASHER

€ 0.00

29

0822108166
ref: 29

THRUST WASHER

€ 5.50
