REAR WHEEL
DS250 1980 (T) USA (E03)

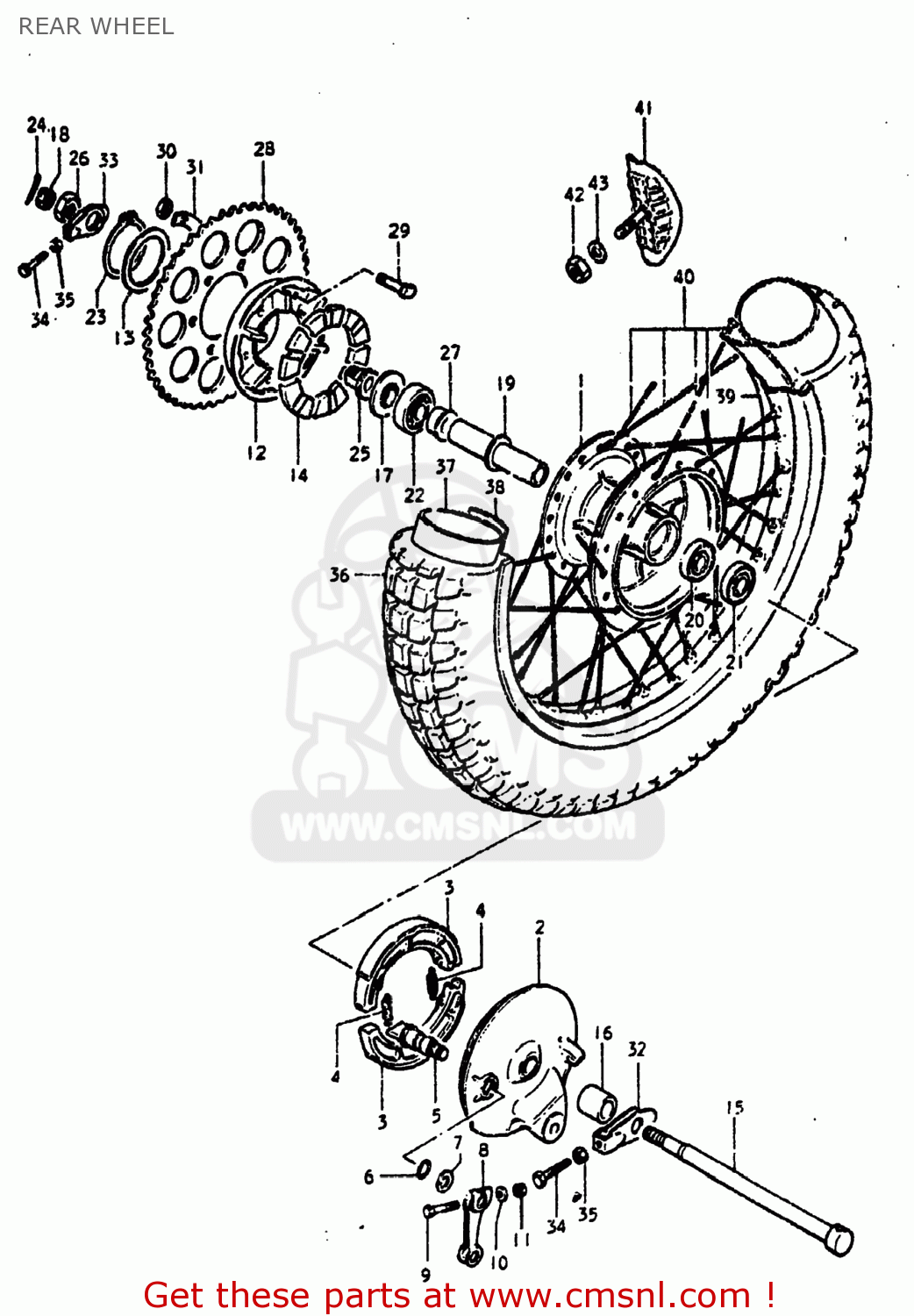

Rear wheel diagram DS250 1980 (T) USA (E03)
REAR WHEEL DS250 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411016500
ref: 1
DRUM,REAR HUB
€ 295.00
2
6421016501
ref: 2
PANEL,REAR HUB
€ 49.50
3
5441032400
ref: 3
64400-02830
SHOE,BRAKE (MCA)
€ 35.00
4
5542041100
ref: 4
SPRING
€ 5.50
5
5444008003
ref: 5
54440-08004
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
09160-15048
WASHER (15X24X1.6)
€ 2.50
8
6445139100
ref: 8
LEVER,RR BRAKE CAM
€ 48.00
9
0110706408
ref: 9
01500-0640B
BOLT 6X40
€ 2.00
10
0832221068
ref: 10
08322-01067
WASHER
€ 2.00
11
0831011068
ref: 11
08310-00067
NUT
€ 2.50
12
6461016501
ref: 12
64610-30001
DRUM,REAR SPROCKET MOUNT
€ 100.50
13
0916062001
ref: 13
WASHER(62.5X77X1.6)
€ 4.00
14
6465016520
ref: 14
ABSORBER,RR WHEEL HUB SHOCK
€ 26.50
15
6471116500
ref: 15
AXLE,REAR
€ 41.00
16
0918015014
ref: 16
SPACER (15.2X26X20)
€ 9.00
16
0918015014
ref: 16
SPACER (15.2X26X20)
€ 9.00
17
6475030000
ref: 17
SPACER,REAR AXLE,RIGHT
€ 8.50
18
0914114001
ref: 18
NUT
€ 4.50
19
6473030000
ref: 19
SPACER,REAR HUB BEARING
€ 10.50
20
0811363020
ref: 20
09262-15027
BEARING, RH
€ 17.50
21
0928426001
ref: 21
OIL SEAL
€ 6.00
22
0812363047
ref: 22
BEARING
€ 14.00
23
0833111628
ref: 23
CIRCLIP
€ 4.00
24
0411130408
ref: 24
04111-3040A
PIN 30X40
€ 1.50
25
6479130000
ref: 25
SPACER,REAR AXLE,LEFT
€ 17.00
26
0914024002
ref: 26
09140-24010
NUT
€ 8.50
27
6473330000
ref: 27
SPACER,REAR HUB BEARING
€ 16.50
28
6451130700
ref: 28
64511-30701
SPROCKET,REAR
€ 71.50
29
0910508001
ref: 29
BOLT(8X33.5)
€ 2.50
30
0831012088
ref: 30
08310-00087
NUT
€ 2.00
31
0916908011
ref: 31
WASHER
€ 2.50
32
6141030002
ref: 32
61410-30003
ADJUSTER,CHAIN
€ 18.50
33
6142030002
ref: 33
ADJUSTER,CHAIN,L
€ 13.50
34
0910408006
ref: 34
09104-08034
BOLT
€ 3.00
35
0831012088
ref: 35
08310-00087
NUT
€ 2.00
36
6510040230
ref: 36
65100-14130
TIRE
€ 0.00
37
6520041330
ref: 37
65200-42AA0
TUBE ASSEMBLY,WHEEL,INNER
€ 34.00
38
6526133030
ref: 38
PROTECTOR,INNER TUBE
€ 5.50
39
6531130020
ref: 39
RIM,WHEEL
€ 108.50
40
6532016520
ref: 40
SPOKE SET,RR
€ 54.00
41
6527030001
ref: 41
65270-43D00
STOPPER,BEAD
€ 30.50
42
0831012088
ref: 42
08310-00087
NUT
€ 2.00
43
0832211088
ref: 43
08322-01087
WASHER
€ 2.00
