MUFFLER
DS80 1987 (H) USA (E03)

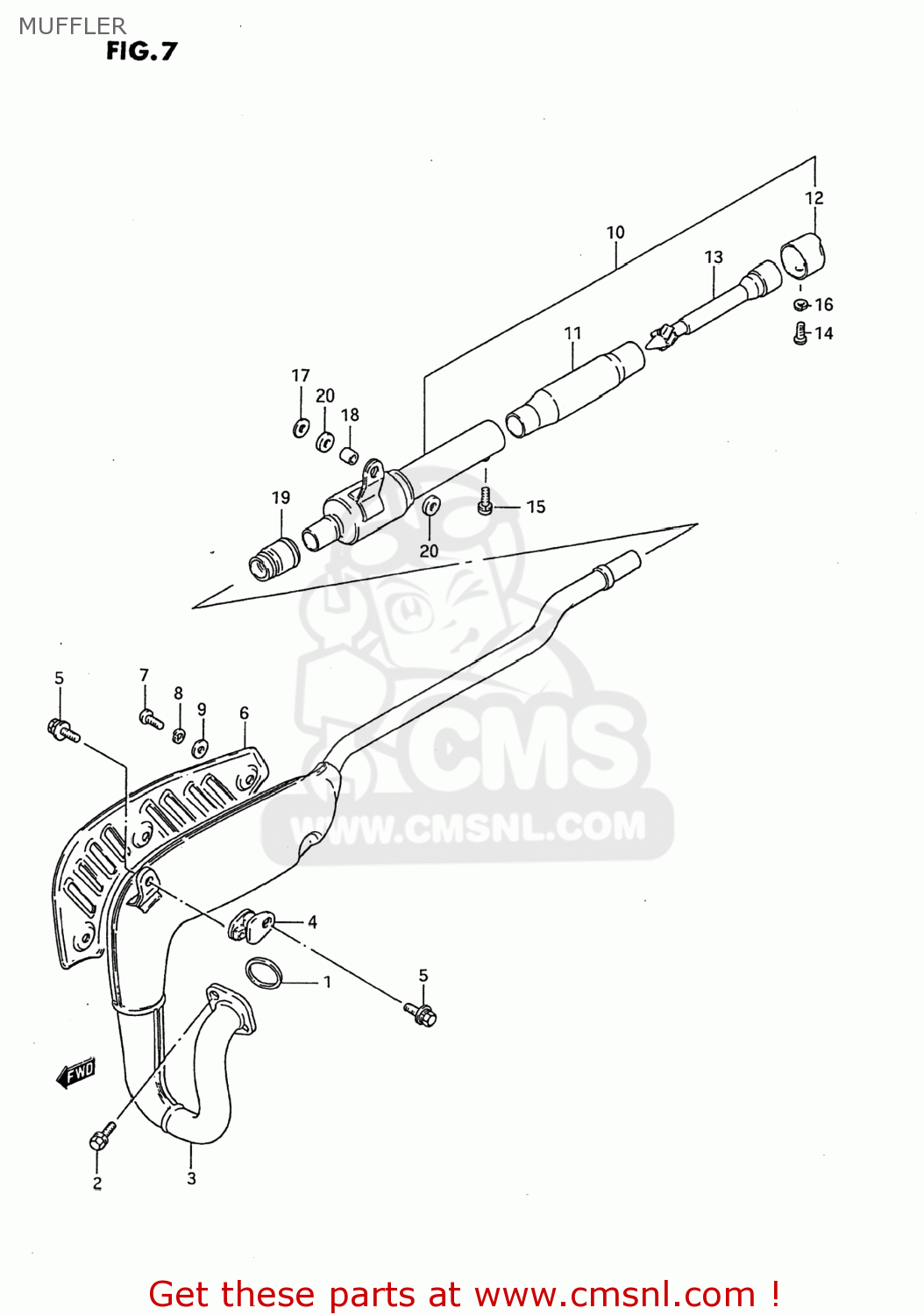

Muffler diagram DS80 1987 (H) USA (E03)
MUFFLER DS80 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1418105020
ref: 1-1
14181-18C00
GASKET,EXHAUST PIPE (NAS)
€ 6.50
1-2
1418118C00
ref: 1-2
GASKET,EXHAUST (NAS)
€ 6.50
2-1
0113706205
ref: 2-1
01570-0620A
BOLT
€ 2.50
2-2
0157006203
ref: 2-2
01570-0620A
BOLT
€ 2.50
3
1431003420H01
ref: 3
BODY,MUFFLER 1ST
€ 213.50
4
1477020400
ref: 4
14770-20401
DAMPER,MUFFLER SUPPORT
€ 10.00
5-1
0117706128
ref: 5-1
01580-06127
BOLT
€ 1.50
5-2
0158006123
ref: 5-2
01580-0612A
BOLT
€ 2.00
6
1478103400
ref: 6
COVER,MUFFLER
€ 15.00
7-1
0211206104
ref: 7-1
02112-0610B
SCREW
€ 1.50
7-2
0211276103
ref: 7-2
02112-7610A
SCREW
€ 2.00
8
0832121064
ref: 8
08321-0106A
WASHER,LOCK
€ 2.00
9
0832221064
ref: 9
08322-0106B
WASHER
€ 2.00
10-1
1430303410H01
ref: 10-1
14303-03441-H01
MUFFLER ASSEMBLY
€ 156.50
10-2
1430303440H01
ref: 10-2
14303-03441-H01
MUFFLER ASSEMBLY
€ 156.50
10-3
1430303441H01
ref: 10-3
MUFFLER ASSY,2ND
€ 156.50
11
1481546600
ref: 11
SHELL,ARRESTER
€ 0.00
12-1
1481703400
ref: 12-1
14817-46600
CUTTER,MUFFLER TAIL
€ 15.50
12-2
1481703411
ref: 12-2
14817-46600
CUTTER,MUFFLER TAIL
€ 15.50
12-3
1481703412
ref: 12-3
14817-46600
CUTTER,MUFFLER TAIL
€ 15.50
13
1485030602
ref: 13
TUBE,CLEAN OUT
€ 34.00
14-1
0211206087
ref: 14-1
SCREW
€ 2.00
14-2
0211206087
ref: 14-2
SCREW
€ 2.00
15-1
0211236168
ref: 15-1
02112-36167
SCREW
€ 2.00
15-2
0211236163
ref: 15-2
02112-3616A
SCREW
€ 2.50
16-1
0832121067
ref: 16-1
08321-01067
WASHER,LOCK
€ 2.50
16-2
0832101063
ref: 16-2
08321-0106A
LOCK WASHER
€ 2.00
17
0916008004
ref: 17
09160-08134
WASHER
€ 2.50
18
0918008050
ref: 18
09180-08199
SPACER (8.6X13.8X9)
€ 2.50
19
1477148002
ref: 19
CONNECTOR,MUFFLER
€ 8.00
20
0932014006
ref: 20
CUSHION
€ 3.50
