DS80 1987 (H) USA (E03)

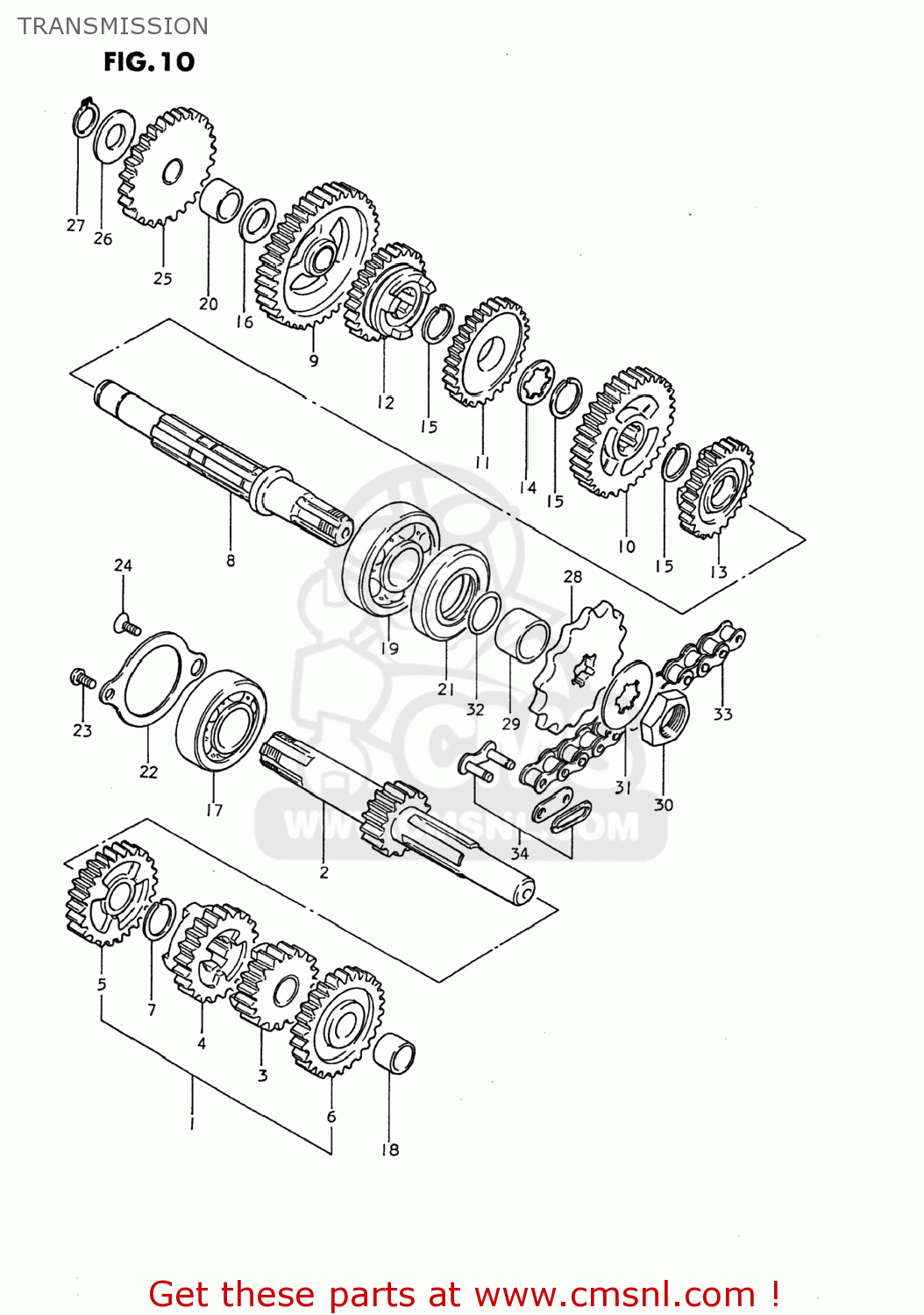

Transmission diagram DS80 1987 (H) USA (E03)
TRANSMISSION DS80 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412046001
ref: 1-1
24120-46002
SHAFT,COUNTER
€ 169.00
1-2
2412046002
ref: 1-2
SHAFT,COUNTER
€ 0.00
2
2412146001
ref: 2
SHAFT,COUNTER(NT:13)
€ 47.50
3
2422046000
ref: 3
GEAR,2ND DRIVE(NT:19)
€ 0.00
4
2423146001
ref: 4
GEAR,3RD DRIVE(NT:22)
€ 0.00
5
2424146000
ref: 5
GEAR,4TH DRIVE(NT:24)
€ 31.50
6-1
2425146000
ref: 6-1
24251-46001
GEAR,FIFTH DRIVE
€ 32.50
6-2
2425146001
ref: 6-2
GEAR,FIFTH DRIVE
€ 32.50
7
0938017007
ref: 7
CIRCLIP
€ 2.00
8
2413146000
ref: 8
SHAFT,DRIVE
€ 77.00
9
2431046001
ref: 9
GEAR,1ST DRIVEN(NT:35)
€ 31.50
10
2432146001
ref: 10
GEAR,2ND DRIVEN(NT:32)
€ 50.00
11
2433146000
ref: 11
GEAR,3RD DRIVEN(NT:29)
€ 38.50
12
2434146000
ref: 12
GEAR,4TH DRIVEN(NT:36)
€ 39.50
13
2435146000
ref: 13
GEAR,5TH DRIVEN(NT:24)
€ 40.00
14
0916013006
ref: 14
WASHER(13X24X1)
€ 2.50
15
0938017007
ref: 15
CIRCLIP
€ 2.00
16
0916717003
ref: 16
WASHER,LOCK
€ 1.50
17
0926217023
ref: 17
BEARING(17X40X12)
€ 14.00
18
0930313001
ref: 18
BUSH
€ 6.50
19
0811363030
ref: 19
BEARING
€ 15.50
20
0930313001
ref: 20
BUSH
€ 6.50
21
0928321003
ref: 21
SEAL,OIL(21X40X6)
€ 5.50
22
2474146000
ref: 22
RETAINER,CNTR SHAFT BEARING
€ 3.50
23-1
0211206108
ref: 23-1
02112-06107
SCREW
€ 1.50
23-2
0211206103
ref: 23-2
02112-0610B
SCREW
€ 1.50
24-1
0212206108
ref: 24-1
02122-0610A
SCREW
€ 1.50
24-2
0212206123
ref: 24-2
02122-0612A
SCREW
€ 3.00
25
2626046001
ref: 25
GEAR,KICK STARTER IDLE
€ 24.00
26
0821112261
ref: 26
WASHER
€ 2.50
27
0833131126
ref: 27
08331-3112A
CIRCLIP,12 MM
€ 2.00
28
2751146700
ref: 28
SPROCKET,ENGINE
€ 9.50
29
0918017008
ref: 29
SPACER(17X21X13)
€ 7.00
30
0914016002
ref: 30
NUT
€ 4.00
31
0916716001
ref: 31
WASHER,LOCK
€ 1.50
32
0928017001
ref: 32
O RING(D:1,ID:16.8)
€ 2.00
33-1
2760017421
ref: 33-1
27600-27412
CHAIN ASSEMBLY,DRIVE
€ 86.50
33-2
2760027412
ref: 33-2
CHAIN,DRIVE
€ 86.50
34-1
2762005220
ref: 34-1
27620-40220
JOINT ASSEMBLY,CHAIN
€ 7.00
34-2
2762020910
ref: 34-2
JOINT,CHAIN
€ 3.00
