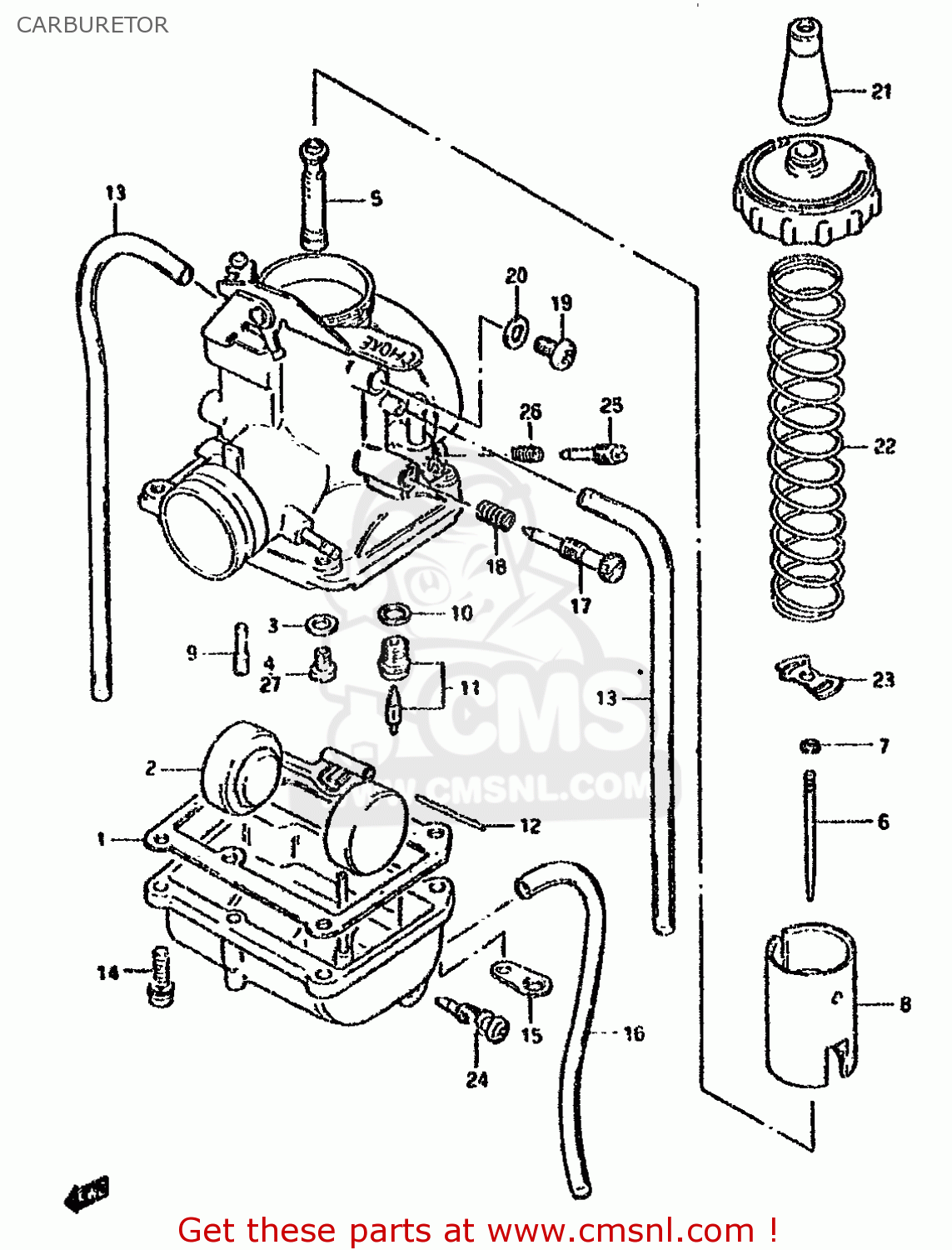

CARBURETOR

ref

part #

description

quantity

0

1320003400
ref: 0

CARBURETOR ASSY

€ 0.00

1

1325123010
ref: 1

GASKET,FLOAT CHAMBER (NAS)

€ 4.50

2

1325203400
ref: 2

FLOAT

€ 21.50

3

1333244080
ref: 3

WASHER,NEEDLE NOZZLE

€ 2.50

4

0949187005
ref: 4

JET,MAIN(87.5)

€ 6.50

5

0949400398
ref: 5

JET,NEEDLE

€ 12.50

6

1338303400
ref: 6

NEEDLE,JET

€ 10.50

7

1339410010
ref: 7

CLIP

€ 4.50

8

1355103400
ref: 8

VALVE,THROTTLE

€ 0.00

9

0949225005
ref: 9

JET,PILOT(25)

€ 6.50

10

1339201010
ref: 10

GASKET,NEEDLE VALVE (NAS)

€ 2.50

11

1337023010
ref: 11

VALVE ASSY,NEEDLE

€ 34.00

12

1325401010
ref: 12

PIN,FLOAT

€ 3.00

13

1368336A00
ref: 13
L:300-200

HOSE

€ 8.00

14

1360104148
ref: 14

SCREW

€ 2.50

15

1369397010
ref: 15

PLATE

€ 0.00

16

1368440A00
ref: 16
L:650-160

HOSE(3X5X650)

€ 7.50

17

1326795110
ref: 17

SCREW,THROTTLE STOP

€ 6.00

18-1

1327102330
ref: 18-1
MODEL F/G/H/J/K/L/M/

SPRING

€ 3.50

18-2

1326848700
ref: 18-2
MODEL S

SPRING,THROTTLE SCREW

€ 3.50

19-1

0211205066
ref: 19-1
MODEL F/G/H/J/K/L/M/

SCREW

€ 2.00

19-2

0211205063
ref: 19-2
MODEL S

SCREW

€ 2.00

20

1352346110
ref: 20

GASKET,DRAIN PLUG (NAS)

€ 3.00

21

1368133010
ref: 21

CAP,CABLE ADJUSTER

€ 8.00

22

1357336110
ref: 22

SPRING,THROTTLE VALVE

€ 3.00

23

1358109210
ref: 23

STOPPER,NEEDLE CLIP

€ 5.50

24

1324702340
ref: 24

PLUG,DRAIN

€ 5.50

25

1326946010
ref: 25

SCREW,PILOT AIR

€ 8.50

26

1326801010
ref: 26

SPRING

€ 3.50

27-1

0949182003
ref: 27-1
OPT

JET,MAIN

€ 8.50

27-2

0949185008
ref: 27-2
OPT

JET,MAIN(85)

€ 8.50

27-3

0949190007
ref: 27-3
OPT

JET,MAIN(90)

€ 10.50

27-4

0949192004
ref: 27-4
OPT

JET,MAIN(92.5)

€ 8.50

27-5

0949195005
ref: 27-5
OPT

JET,MAIN(95)

€ 8.50
