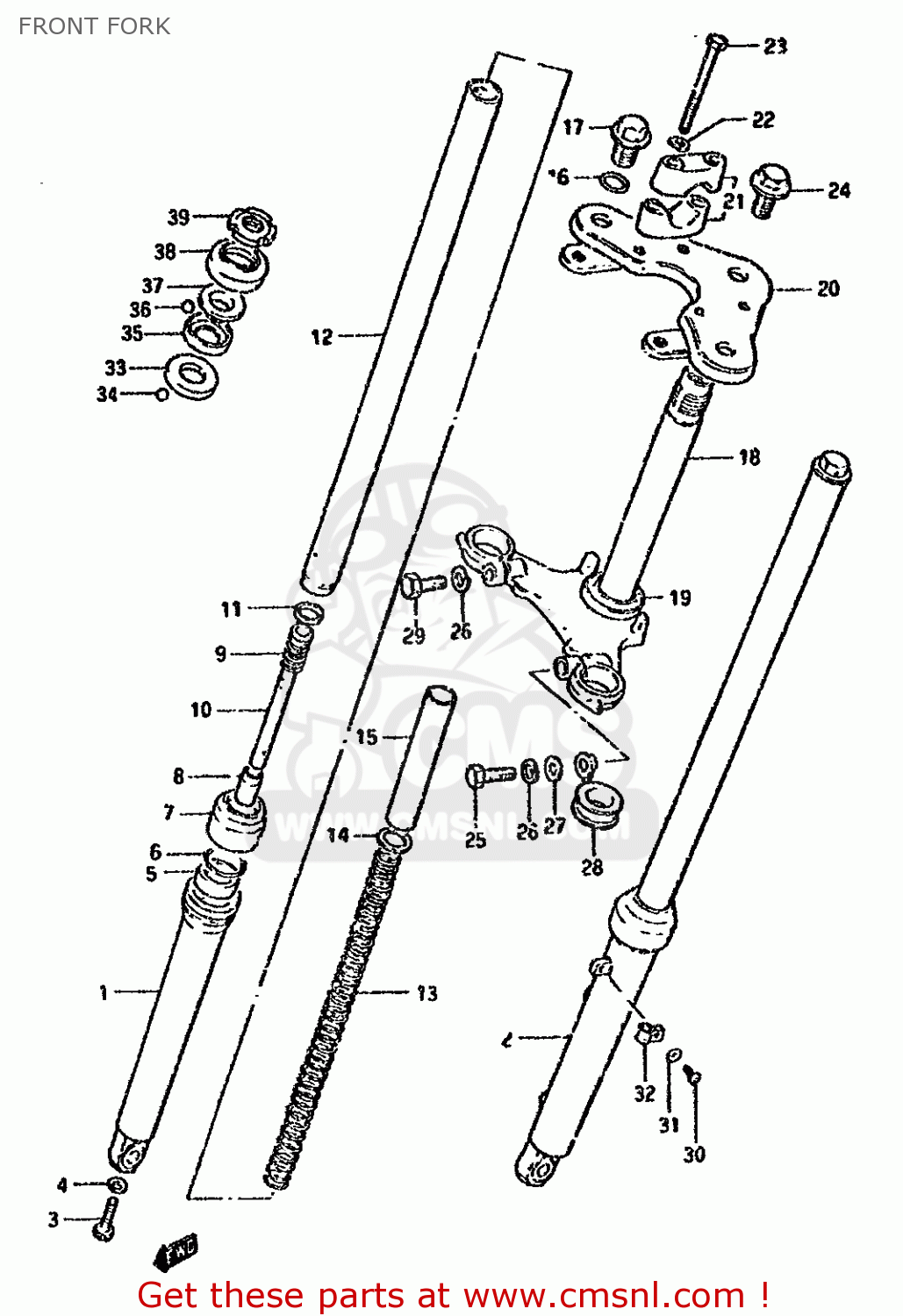

FRONT FORK

ref

part #

description

quantity

0

5110003410163
ref: 0
MODEL F/G

FORK SET,FRONT

€ 459.50

0

5110003411163
ref: 0
MODEL H/J/K/L/M/N

FORK ASSEMBLY,FRONT

€ 459.50

0

5110003430
ref: 0
MODEL P/R/S

FORK ASSEMBLY,FRONT

€ 459.50

1-1

5113103400163
ref: 1-1
MODEL F/G/H/J/K/L/M/

TUBE,OUTER,RIGHT

€ 126.00

1-2

5113103430
ref: 1-2
MODEL P/R/S

TUBE,OUTER,RIGHT

€ 0.00

2-1

5114103400163
ref: 2-1
MODEL F/G/H/J/K/L/M/

TUBE,OUTER,LEFT

€ 0.00

2-2

5114103430
ref: 2-2
MODEL P/R/S

TUBE,OUTER,LEFT

€ 0.00

3

5114748130
ref: 3

BOLT(8X27)

€ 3.50

4

5114836011
ref: 4

GASKET (NAS)

€ 4.00

5

5115303400
ref: 5

SEAL,OIL

€ 10.50

6

5115648130
ref: 6

RING,OIL SEAL STOPPER

€ 3.50

7

5157146100
ref: 7

DUST SEAL

€ 6.00

8

5119546684
ref: 8

PIECE,OIL LOCK

€ 0.00

9

5117746100
ref: 9

SPRING,REBOUND

€ 3.50

10

5114603400
ref: 10

CYLINDER,FR FORK

€ 0.00

11

5119646100
ref: 11

RING,PISTON

€ 6.00

12

5111046450
ref: 12

TUBE,INNER

€ 105.50

13

5117103400
ref: 13

SPRING

€ 18.00

14

5119246100
ref: 14

JOINT,SPRING

€ 2.50

15

5117646100
ref: 15

SPACER,SPRING

€ 6.50

16

5118146190
ref: 16

O-RING,FORK INNER TUBE

€ 5.50

17

5135146190
ref: 17

CAP

€ 15.00

18

5141003410126
ref: 18

STEM,STEERING

€ 54.50

19

5162133001
ref: 19

RACE,STEERING OUTER LWR

€ 10.00

20-1

5131003410126
ref: 20-1
MODEL F/G

HEAD,STEERING STEM

€ 0.00

20-2

5131003411126
ref: 20-2
MODEL H/J/K/L/M/N/P/

HEAD,STEERING STEM

€ 0.00

21

5621113620126
ref: 21

HOLDER,HANDLEBAR

€ 10.00

22

0832101087
ref: 22

WASHER,LOCK

€ 2.00

23

0120408557
ref: 23

BOLT

€ 2.50

24

5135246101
ref: 24

BOLT

€ 5.50

25

0110710358
ref: 25

BOLT,M10X1.25X

€ 2.50

26

0832101107
ref: 26

WASHER,LOCK

€ 2.00

27

0832201107
ref: 27

WASHER

€ 2.50

28-1

5145503400
ref: 28-1
MODEL F/G

CLIP,CABLE

€ 12.50

28-2

5145503401
ref: 28-2
MODEL H/J/K/L/M/N/P/

CLIP

€ 12.50

29

0110710308
ref: 29

BOLT 10X30

€ 3.00

30

0211204127
ref: 30

SCREW

€ 1.50

31

0832121047
ref: 31

WASHER,LOCK 4M

€ 2.00

32-1

5145246040
ref: 32-1
MODEL F/G/H/J/K/L/M/

CLIP,FR BRAKE CABLE

€ 5.50

32-2

5145246030
ref: 32-2
MODEL R/S

CLIP,CABLE

€ 5.50

33

5161133002
ref: 33

LACE,STEERING INNER LWR

€ 7.00

34

0611108003
ref: 34

BALL

€ 1.50

35

5161120002
ref: 35

RACE,STEERING INNER UPR

€ 5.50

36

0611106003
ref: 36

BALL

€ 1.50

37

5162128000
ref: 37

RACE,STEERING OUTER UPR

€ 7.00

38

5164325001
ref: 38

DUST SEAL,STEERING UPR

€ 4.50

39

5163128000
ref: 39

NUT,STEERING STEM(25X44X10)

€ 12.50

all assemblies
