CYLINDER
DS80 1989 (K) USA (E03)

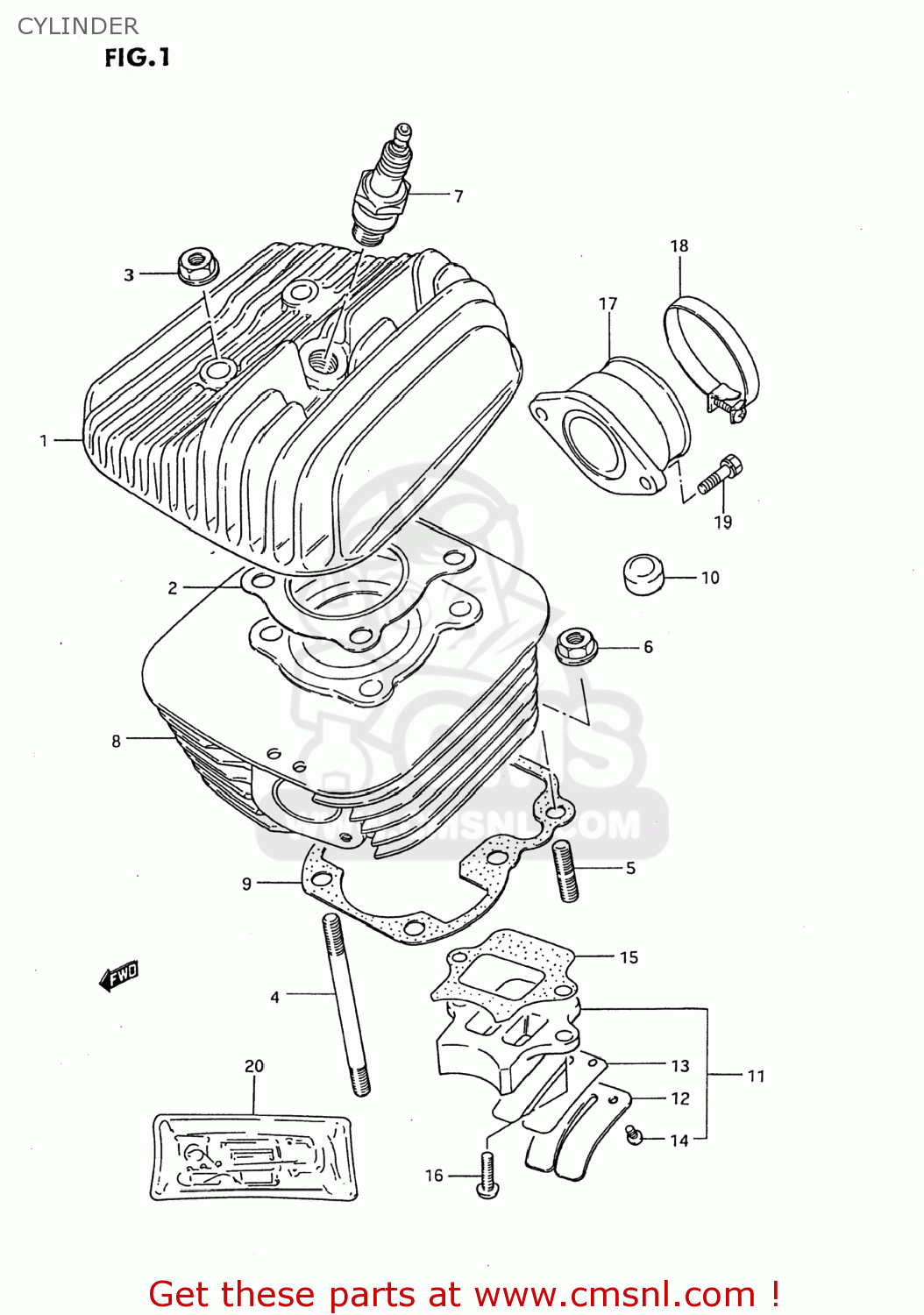

Cylinder diagram DS80 1989 (K) USA (E03)
CYLINDER DS80 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111146400
ref: 1
HEAD,CYLINDER
€ 0.00
2
1114146082
ref: 2
GASKET,CYLINDER HEAD (NAS)
€ 3.50
3-1
0831616088
ref: 3-1
08316-10087
NUT
€ 2.50
3-2
0831610083
ref: 3-2
08316-1008B
NUT
€ 3.00
4-1
0910808028
ref: 4-1
BOLT,STUD
€ 5.50
4-2
0910808006
ref: 4-2
BOLT,STUD
€ 5.00
5
0142106208
ref: 5
01421-0620A
STUD 6X20
€ 2.50
6-1
0915906017
ref: 6-1
08319-31067
NUT
€ 2.50
6-2
0831610063
ref: 6-2
08316-1006B
NUT
€ 2.50
7-1
0948200089
ref: 7-1
09482-00117
SPARK PLUG B7ES
€ 5.00
7-2
0948200090
ref: 7-2
PLUG,SPARK(W22E)
€ 19.50
8
1121046400
ref: 8
CYLINDER
€ 272.50
9-1
1124146002
ref: 9-1
11241-46010
GASKET,CYLINDER (NAS)
€ 4.00
9-2
1124146010
ref: 9-2
GASKET,CYLINDER (NAS)
€ 4.00
10
1125228000
ref: 10
11252-13630
PAD,CYLINDER
€ 2.00
11
1315026411
ref: 11
VALVE ASSY,REED
€ 51.00
12
1315226410
ref: 12
STOPPER,REED VALVE
€ 4.50
13
1315326410
ref: 13
VALVE,REED
€ 6.50
14
0211203083
ref: 14
02112-0308A
SCREW
€ 1.50
15-1
1315646001
ref: 15-1
13156-46001-H17
GASKET,REED VALVE (MCA)
€ 2.50
15-2
1315646001H17
ref: 15-2
GASKET,REED VALVE (NAS)
€ 2.50
16-1
0211206167
ref: 16-1
SCREW
€ 2.50
16-2
0211206163
ref: 16-2
02112-0616A
SCREW 6X16
€ 2.00
17
1311003400
ref: 17
PIPE,INTAKE
€ 16.50
18
0940238303
ref: 18
CLAMP
€ 3.00
19-1
0113706205
ref: 19-1
01570-0620A
BOLT
€ 2.50
19-2
0157006203
ref: 19-2
01570-0620A
BOLT
€ 2.50
20-1
1140046835
ref: 20-1
11400-46837
GASKET SET (NAS)
€ 24.50
20-2
1140046836
ref: 20-2
11400-46837
GASKET SET (NAS)
€ 24.50
20-3
1140046837
ref: 20-3
GASKET SET (NAS)
€ 24.50
