FUEL TANK (MODEL J/K)
DS80 1989 (K) USA (E03)

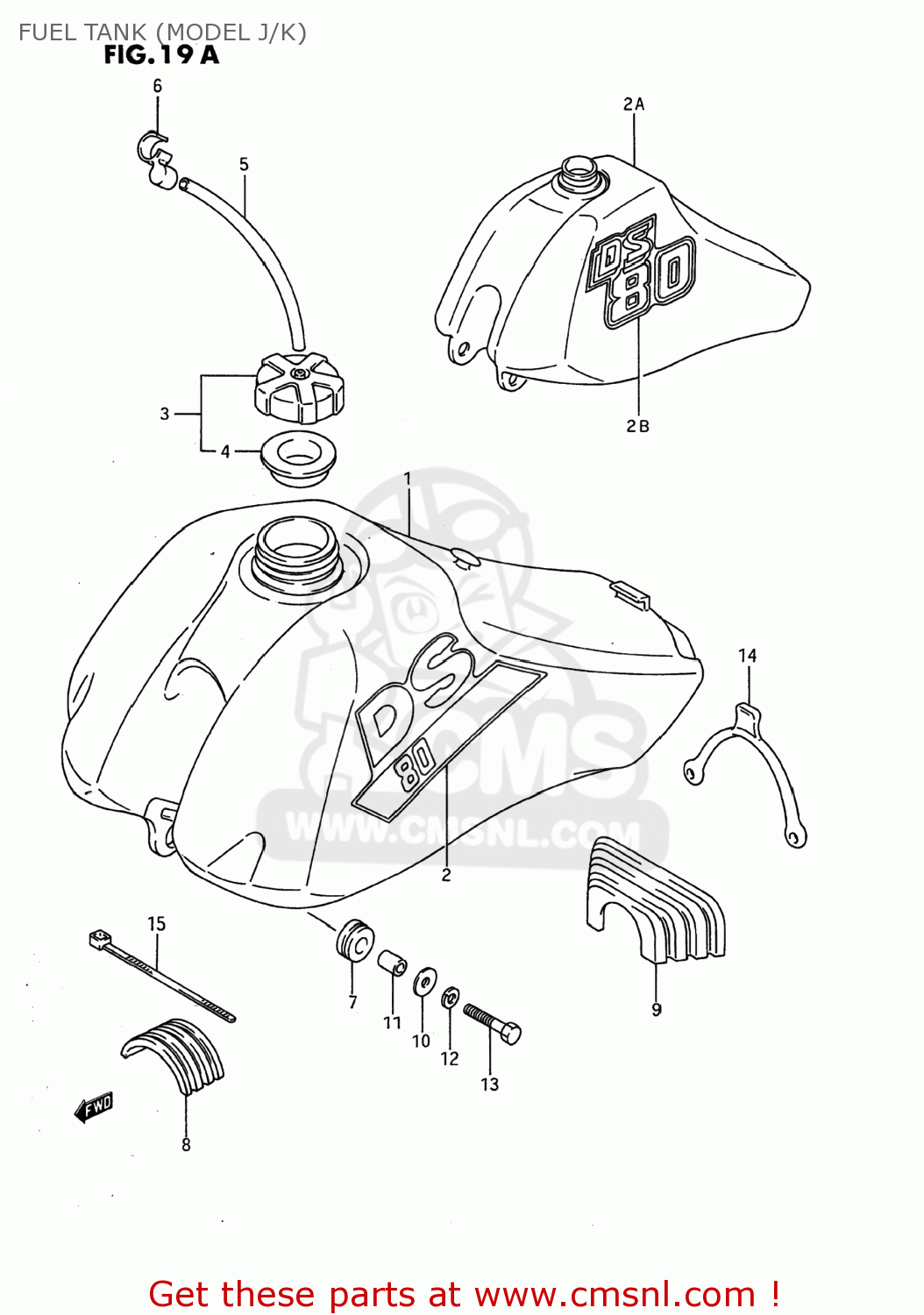

Fuel tank (model j/k) diagram DS80 1989 (K) USA (E03)
FUEL TANK (MODEL J/K) DS80 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
441000345025Y
ref: 1
44110-03400-25Y
TANK ASSEMBLY,FUEL
€ 112.50
2
68110034509UR
ref: 2
TAPE SET,FUEL TANK STRIPE
€ 27.50
2A
441000346025Y
ref: 2A
44110-03400-25Y
TANK ASSEMBLY,FUEL
€ 112.50
2B
68115034100FB
ref: 2B
TAPE,FUEL TANK
€ 0.00
3
4420040820
ref: 3
44200-40821
CAP SET,FUEL TANK
€ 20.00
4
4424840400
ref: 4
44248-05210
GASKET,FUEL TANK CAP (NAS)
€ 4.50
5
0935250823600
ref: 5
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
6
4448603400
ref: 6
CLAMP
€ 4.50
7
0932010025
ref: 7
CUSHION
€ 0.00
8
4454114300
ref: 8
CUSHION,FUEL TANK UPR FR
€ 4.50
9
4454203400
ref: 9
CUSHION,FUEL TANK UPR RR
€ 5.00
10
0916006074
ref: 10
09160-06501
WASHER (6.5X24X1.6)
€ 2.00
11
0918006046
ref: 11
09180-06292
SPACER (6.5X10.5X13.5)
€ 3.50
12
0832121064
ref: 12
08321-0106A
WASHER,LOCK
€ 2.00
13
0110706255
ref: 13
01500-0625A
BOLT
€ 2.50
14
4456103400
ref: 14
BAND,FUEL TANK RR
€ 6.50
15
0940720405
ref: 15
09407-25402
CLAMP
€ 4.50
