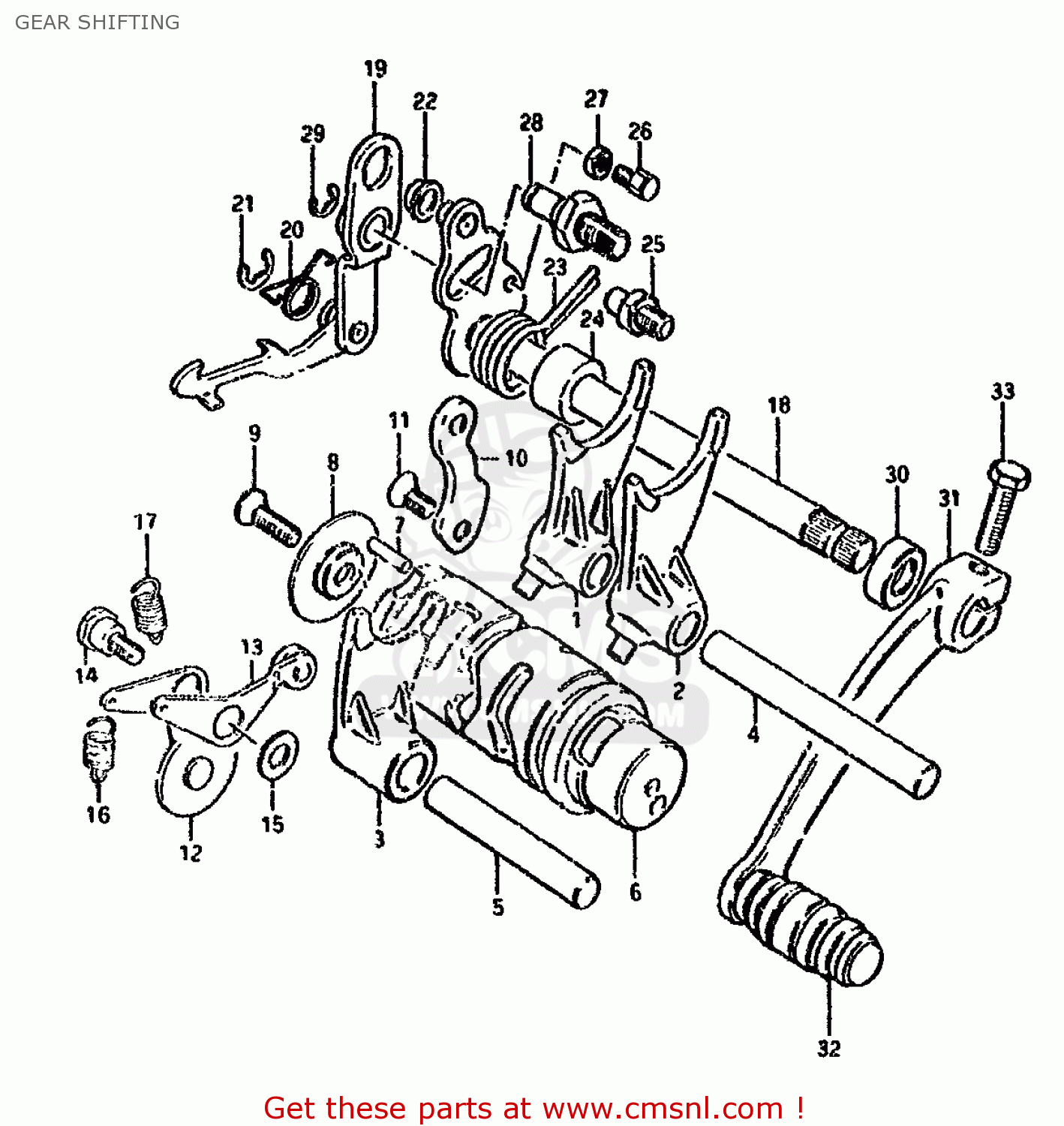

GEAR SHIFTING

ref

part #

description

quantity

1

2521146003
ref: 1

FORK,GEAR SHIFT NO.1

€ 38.50

2

2522146000
ref: 2

FORK,GEAR SHIFT NO.2

€ 20.00

3

2523146001
ref: 3

FORK,GEAR SHIFT NO.2

€ 29.50

4-1

2541114330
ref: 4-1
MODEL F/G/H/J/K/L/M/

SHAFT,GEAR SHIFT FORK

€ 14.00

4-2

2541140410
ref: 4-2
MODEL P

SHAFT,GEAR SHIFT FORK

€ 14.00

4-3

2541114331
ref: 4-3
MODEL R/S

SHAFT,GEAR SHIFT FORK

€ 14.00

5-1

2542135401
ref: 5-1
MODEL F/G/H/J/K/L/M/

SHAFT,GEAR SHIFT FORK

€ 19.00

5-2

2542140410
ref: 5-2
MODEL P

SHAFT,GEAR SHIFT FORK

€ 19.00

5-3

2542135403
ref: 5-3
MODEL R/S

SHAFT,GEAR SHIFT FORK

€ 19.00

6

2531146000
ref: 6

CAM,GEAR SHIFT

€ 59.00

7-1

0926104009
ref: 7-1

PIN(4X15.8)

€ 1.50

7-2

0920904015
ref: 7-2

PIN

€ 2.50

8

2532246000
ref: 8

RETAINER,GEAR SHIFT CAM DR PIN

€ 5.50

9-1

0212206208
ref: 9-1
MODEL F/G/H/J/K/L/M/

SCREW

€ 2.00

9-2

0212206203
ref: 9-2
MODEL S

SCREW

€ 2.00

10

2534146000
ref: 10

GUIDE,GEAR SHIFT CAM

€ 6.00

11-1

0212206128
ref: 11-1
MODEL F/G/H/J/K/L/M/

SCREW

€ 3.00

11-2

0212206123
ref: 11-2
MODEL S

SCREW

€ 3.00

12

2535046000
ref: 12

STOPPER,GEAR SHIFT CAM

€ 7.00

13

2539046001
ref: 13

STOPPER,GEAR SHIFT CAM NEUTRAL

€ 9.00

14

0911106020
ref: 14

BOLT(6X18.3)

€ 2.00

15-1

0832221067
ref: 15-1
MODEL F/G/H/J/I/L/M/

WASHER

€ 2.00

15-2

0832201063
ref: 15-2
MODEL S

WASHER

€ 2.00

16

0944308017
ref: 16

SPRING

€ 2.00

17

0944310017
ref: 17

SPRING

€ 2.00

18

2551046002
ref: 18

SHAFT,GEAR SHIFT

€ 32.50

19

2554046004
ref: 19

PAWL,GEAR SHIFT

€ 16.50

20

0944813006
ref: 20

SPRING

€ 2.00

21-1

0833211078
ref: 21-1
MODEL F/G/H/J/K/L/M/

E RING

€ 2.00

21-2

0833211076
ref: 21-2
MODEL S

E RING

€ 2.00

22

0918007014
ref: 22

SPACER(7X10X5)

€ 4.00

23

0944426015
ref: 23

SPRING

€ 4.00

24

0918012083
ref: 24

SPACER(12X20X15.3)

€ 2.50

25

2567101000
ref: 25

STOPPER,GEAR SHIFT CAM

€ 3.00

26

2567346000
ref: 26

BOLT,GEAR SHAFT RETURN SPR SET

€ 4.00

27-1

0831022067
ref: 27-1
MODEL F/G/H/J/K/L/M/

NUT 6MM

€ 2.50

27-2

0914006023
ref: 27-2
MODEL R/S

NUT

€ 2.00

28

2567246001
ref: 28

STOPPER,GEAR SHIFT CAM

€ 4.50

29

0833211063
ref: 29

E.RING

€ 2.00

30

0928512002
ref: 30

OIL SEAL

€ 7.00

31-1

2560016501
ref: 31-1
MODEL F/G/H/J/K/L/M/

LEVER ASSEMBLY,GEAR SHIFTING

€ 26.00

31-2

2560016520
ref: 31-2
MODEL R/S

LEVER ASSY,GEAR SHIFT

€ 26.00

32

2565216500
ref: 32

RUBBER,GEAR SHIFT PEDAL

€ 4.00

33-1

0910006100
ref: 33-1
MODEL F/G/H/J/K/L/M/

BOLT

€ 2.00

33-2

0110706205
ref: 33-2
MODEL P

BOLT

€ 2.00

33-3

0150006203
ref: 33-3
MODEL R/S

BOLT

€ 2.00
