PROP STAND-BRAKE PEDAL
DS80 1989 (K)

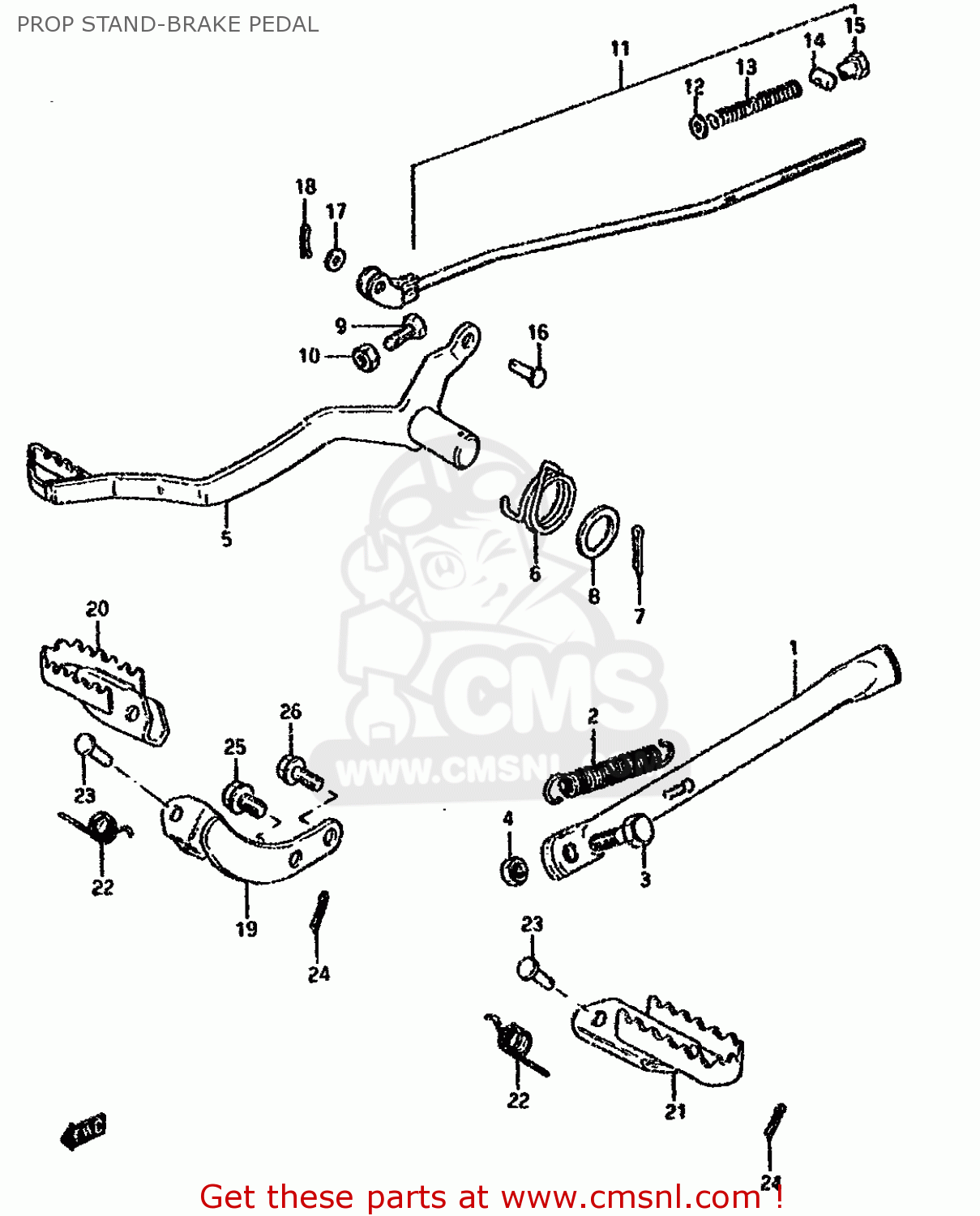

Prop stand-brake pedal diagram DS80 1989 (K)
PROP STAND-BRAKE PEDAL DS80 1989 (K)
×
prices are in EUR
ref
part #
description
quantity
1-1
423100340019F
ref: 1-1
MODEL F/G/H/J/K/L/M/
STAND,SIDE
€ 27.50
1-2
4231003400019
ref: 1-2
MODEL P/R/S
STAND,SIDE
€ 27.50
2
0944314017
ref: 2
SPRING
€ 6.50
3
0910010007
ref: 3
BOLT
€ 4.50
4-1
0831000107
ref: 4-1
MODEL F/G/H/J/K/L/M/
NUT
€ 2.50
4-2
0915910097
ref: 4-2
MODEL R
NUT
€ 5.00
4-3
0914010043
ref: 4-3
MODEL S
NUT
€ 2.00
5
4311003401
ref: 5
PEDAL,BRAKE
€ 29.50
6
0944825007
ref: 6
SPRING
€ 6.00
7
0411130308
ref: 7
COTTER PIN
€ 1.50
8
0916015002
ref: 8
WASHER(15.5X26X2.3)
€ 2.00
9
0910006009
ref: 9
BOLT(6X23)
€ 1.50
10-1
0831000067
ref: 10-1
MODEL F/G/H/J/K/L/M/
NUT
€ 2.50
10-2
0831000063
ref: 10-2
MODEL S
NUT 6MM
€ 2.00
11
4330003400
ref: 11
ROD ASSY,RR BRAKE
€ 20.50
12-1
0832201067
ref: 12-1
MODEL F/G/H/J/K/L/M/
WASHER
€ 2.00
12-2
0832201063
ref: 12-2
MODEL S
WASHER
€ 2.00
13
0944009004
ref: 13
SPRING
€ 2.00
14
0920911002
ref: 14
PIN(11X18)
€ 2.00
15
0915006009
ref: 15
NUT (6MM)
€ 3.50
16
0920006013
ref: 16
PIN(L:13.5)
€ 2.00
17-1
0832221067
ref: 17-1
MODEL F/G/H/J/K/L/M/
WASHER
€ 2.00
17-2
0832201063
ref: 17-2
MODEL S
WASHER
€ 2.00
18
0411120208
ref: 18
PIN 20X20
€ 1.50
19-1
435100340119F
ref: 19-1
MODEL F/G/H/J/K/L/M/
BAR,FRONT FOOTREST
€ 7.00
19-2
4351003401019
ref: 19-2
MODEL P/R/S
BAR,FRONT FOOTREST
€ 7.00
20-1
435504600019F
ref: 20-1
MODEL F/G/H/J/K/L/M/
FOOTREST,FRONT,RIGHT
€ 9.00
20-2
4355046000019
ref: 20-2
MODEL P/R/S
FOOTREST,FR,R
€ 9.00
21-1
435604600019F
ref: 21-1
MODEL F/G/H/J/K/L/M/
FOOTREST,FRONT,LEFT
€ 9.00
21-2
4356046000019
ref: 21-2
MODEL P/R/S
FOOTREST,FR,L
€ 9.00
22
0944814012
ref: 22
SPRING
€ 3.00
23
0920008002
ref: 23
PIN
€ 2.00
24
0411120208
ref: 24
PIN 20X20
€ 1.50
25-1
0151710255
ref: 25-1
MODEL F/G/H/J/K/L/M/
BOLT
€ 3.00
25-2
0155010253
ref: 25-2
MODEL R/S
BOLT
€ 3.00
26
0910308102
ref: 26
BOLT
€ 4.00
