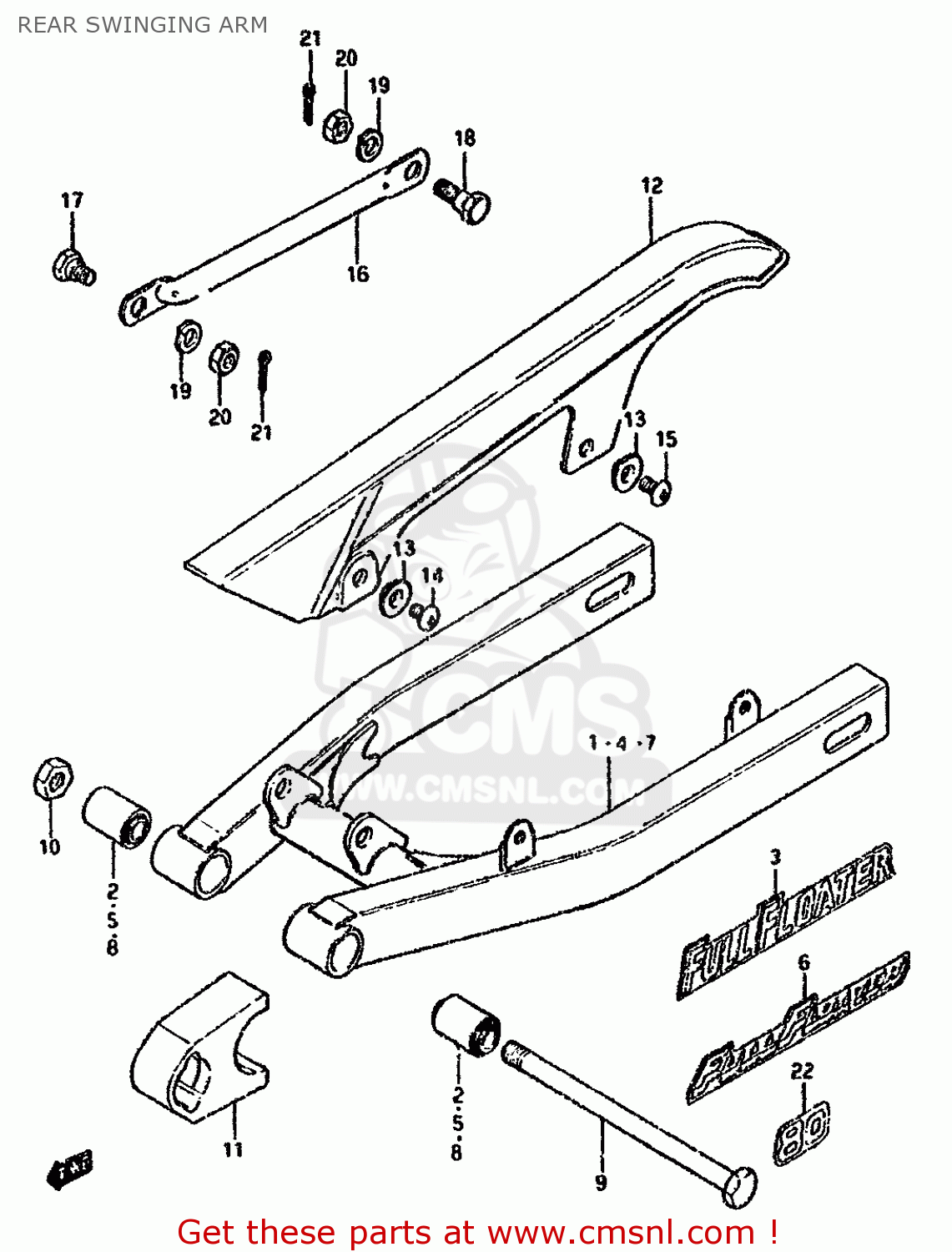

REAR SWINGING ARM

ref

part #

description

quantity

1

610000341008C
ref: 1
MODEL F

SWING ARM ASSEMBLY,REAR

€ 135.50

2

0931910024
ref: 2

BUSH

€ 8.50

3

683812092097J
ref: 3

EMBLEM

€ 0.00

4

610000342013L
ref: 4
MODEL G/H/J/K/L-6110

SWING ARM ASSEMBLY,REAR

€ 135.50

5

0931910024
ref: 5

BUSH

€ 8.50

6

683810341097J
ref: 6

EMBLEM,SWING ARM

€ 7.00

7

610000343013L
ref: 7
MODEL M/N/P/R/S

SWINGINGARM ASSY,RR

€ 135.50

8

0931910024
ref: 8

BUSH

€ 8.50

9

6121103401
ref: 9

SHAFT,RR SWINGINGARM PIVOT

€ 5.50

10

0831931107
ref: 10

NUT

€ 3.00

11

6127303400
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 34.00

12

6131103410019
ref: 12

CASE,CHAIN

€ 33.00

13

0916906026
ref: 13

WASHER

€ 2.00

14-1

0211206084
ref: 14-1
MODEL F/G/H/J/K/L/M/

SCREW

€ 1.50

14-2

0211206083
ref: 14-2
MODEL R

SCREW

€ 1.50

14-3

0211206103
ref: 14-3
MODEL S

SCREW

€ 1.50

15-1

0211206104
ref: 15-1
MODEL F/G/H/J/K/L/M/

SCREW

€ 1.50

15-2

0211206103
ref: 15-2
MODEL R/S

SCREW

€ 1.50

16-1

643110340008C
ref: 16-1
MODEL F

TORQUE LINK,REAR

€ 13.50

16-2

643110340013L
ref: 16-2
MODEL G/H/J/K/L/M/N/

TORQUELINK,RR

€ 13.50

17

0911108015
ref: 17

BOLT(8X22)

€ 3.00

18

0911108013
ref: 18

BOLT(8X26.5)

€ 3.00

19-1

0832121088
ref: 19-1
MODEL F/G/H/J/K/L/M/

LOCK WASHER

€ 2.00

19-2

0832101083
ref: 19-2
MODEL R/S

LOCK WASHER

€ 2.50

20

0914008008
ref: 20

NUT

€ 1.50

21

0411120208
ref: 21

PIN 20X20

€ 1.50

22

683810342017U
ref: 22
MODEL N

EMBLEM,SWING ARM

€ 8.50
