RIGHT HANDLE SWITCH
DS80 1990 (L)

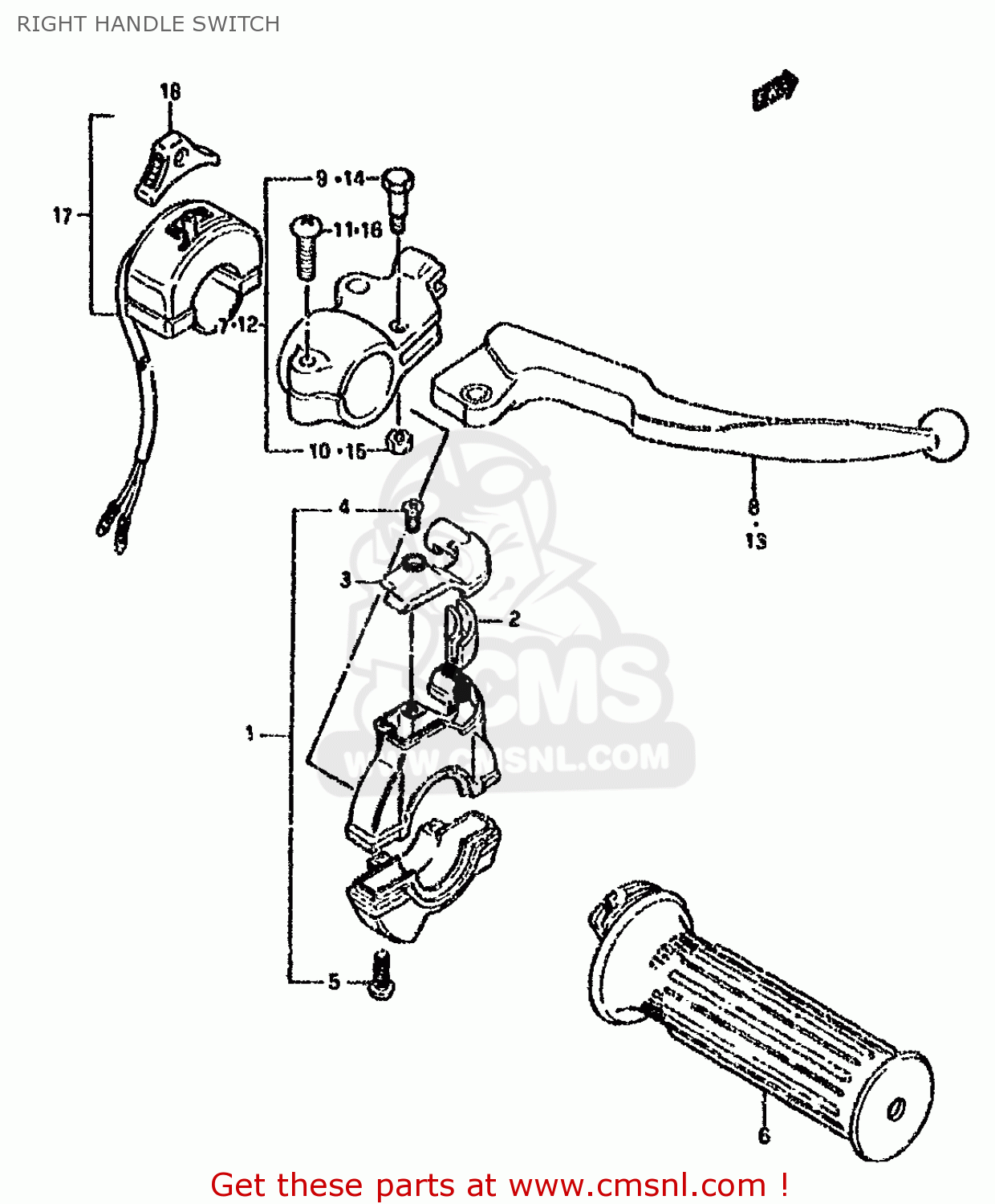

Right handle switch diagram DS80 1990 (L)
RIGHT HANDLE SWITCH DS80 1990 (L)
×
prices are in EUR
ref
part #
description
quantity
1
5710013601
ref: 1
CASE ASSY,THROTTLE
€ 34.00
2
5712213600
ref: 2
GUIDE PIECE,THROTTLE
€ 7.50
3
5712913601
ref: 3
COVER,THROTTLE CASE
€ 7.00
4
0212204103
ref: 4
SCREW,UPPER
€ 2.50
5
0211205167
ref: 5
SCREW
€ 2.50
6
5711013600
ref: 6
GRIP,THROTTLE
€ 13.00
7
5730046420
ref: 7
MODEL F
LEVER ASSY,BRAKE
€ 38.00
8
5742046410
ref: 8
LEVER,BRAKE
€ 44.50
9
5743101012
ref: 9
BOLT,LEVER PIVOT
€ 5.00
10
0831011057
ref: 10
NUT 5MM
€ 2.50
11
0211206207
ref: 11
SCREW
€ 2.00
12
5730046440
ref: 12
MODEL G/H/J/K/L/M/N/
LEVER ASSY,BRAKE
€ 95.50
13
5742046440
ref: 13
LEVER,BRAKE
€ 44.50
14
5743113001
ref: 14
SCREW
€ 5.00
15
0831921055
ref: 15
NUT 8MM
€ 1.50
16
0211206205
ref: 16
SCREW
€ 2.00
17
3725037400
ref: 17
MODEL F/G/H/J/K/L/M/
SWITCH ASSY,LIGHTING
€ 39.50
18
5761728602
ref: 18
KNOB,LIGHTING & DIMMER
€ 4.00
