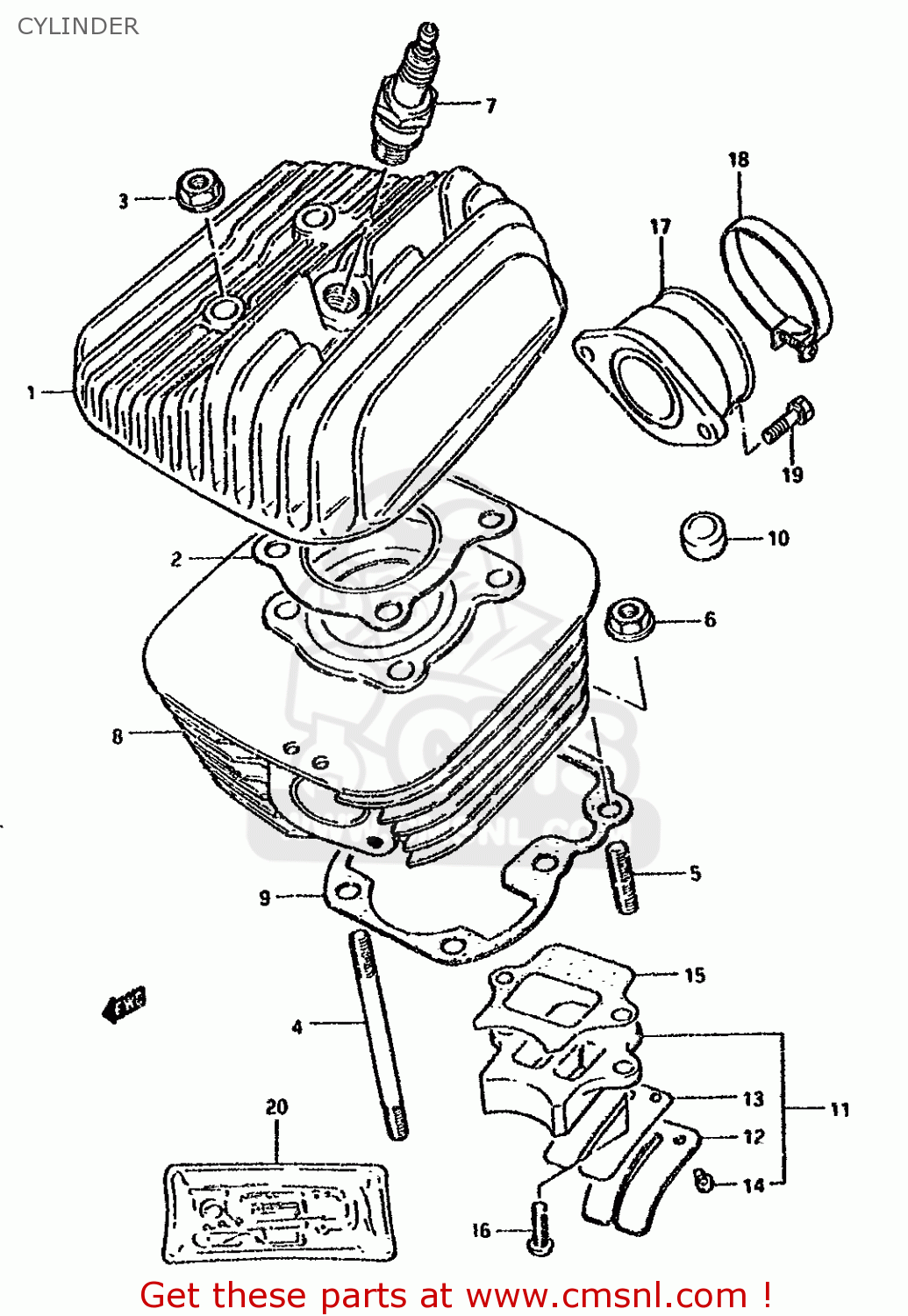

CYLINDER

ref

part #

description

quantity

1

1111146400
ref: 1

HEAD,CYLINDER

€ 0.00

2

1114146082
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 3.50

3-1

0831616088
ref: 3-1
MODEL F/G/H/J/K/L/M/

NUT

€ 2.50

3-2

0831610083
ref: 3-2
MODEL R/S

NUT

€ 3.00

4-1

0910808028
ref: 4-1
MODEL F/G/H/J/K/L/M/

BOLT,STUD

€ 5.50

4-2

0910808006
ref: 4-2
MODEL R/S

BOLT,STUD

€ 5.00

5

0142106208
ref: 5

STUD 6X20

€ 2.50

6-1

0915906017
ref: 6-1
MODEL F/G/H/J/K/L/M/

NUT

€ 2.50

6-2

0831610063
ref: 6-2
MODEL R/S

NUT

€ 2.50

7-1

0948200089
ref: 7-1

SPARK PLUG B7ES

€ 5.00

7-2

0948200090
ref: 7-2

PLUG,SPARK(W22E)

€ 19.50

8

1121046400
ref: 8

CYLINDER

€ 272.50

9-1

1124146002
ref: 9-1
MODEL F/G/H/J/K/L

GASKET,CYLINDER (NAS)

€ 4.00

9-2

1124146010
ref: 9-2
MODEL M/N/P/R/S

GASKET,CYLINDER (NAS)

€ 4.00

10

1125228000
ref: 10

PAD,CYLINDER

€ 2.00

11

1315026411
ref: 11

VALVE ASSY,REED

€ 51.00

12

1315226410
ref: 12

STOPPER,REED VALVE

€ 4.50

13

1315326410
ref: 13

VALVE,REED

€ 6.50

14

0211203083
ref: 14

SCREW

€ 1.50

15-1

1315646001
ref: 15-1
MODEL F/G/H/J/K/L/M/

GASKET,REED VALVE (MCA)

€ 2.50

15-2

1315646001H17
ref: 15-2
MODEL P/R/S

GASKET,REED VALVE (NAS)

€ 2.50

16-1

0211206167
ref: 16-1
MODEL F/G/H/J/K/L/M/

SCREW

€ 2.50

16-2

0211206163
ref: 16-2
MODEL R/S

SCREW 6X16

€ 2.00

17

1311003400
ref: 17

PIPE,INTAKE

€ 16.50

18

0940238303
ref: 18

CLAMP

€ 3.00

19-1

0113706205
ref: 19-1
MODEL F/G/H/J/K/L/M/

BOLT

€ 2.50

19-2

0157006203
ref: 19-2
MODEL R/S

BOLT

€ 2.50

20-1

1140046835
ref: 20-1
MODEL F/G/H/J/K/L

GASKET SET (NAS)

€ 24.50

20-2

1140046836
ref: 20-2
MODEL M/N

GASKET SET (NAS)

€ 24.50

20-3

1140046837
ref: 20-3
MODEL P/R/S

GASKET SET (NAS)

€ 24.50

all assemblies
