HANDLE LEVER
DS80 1999 (X) USA CANADA (E03 E28)

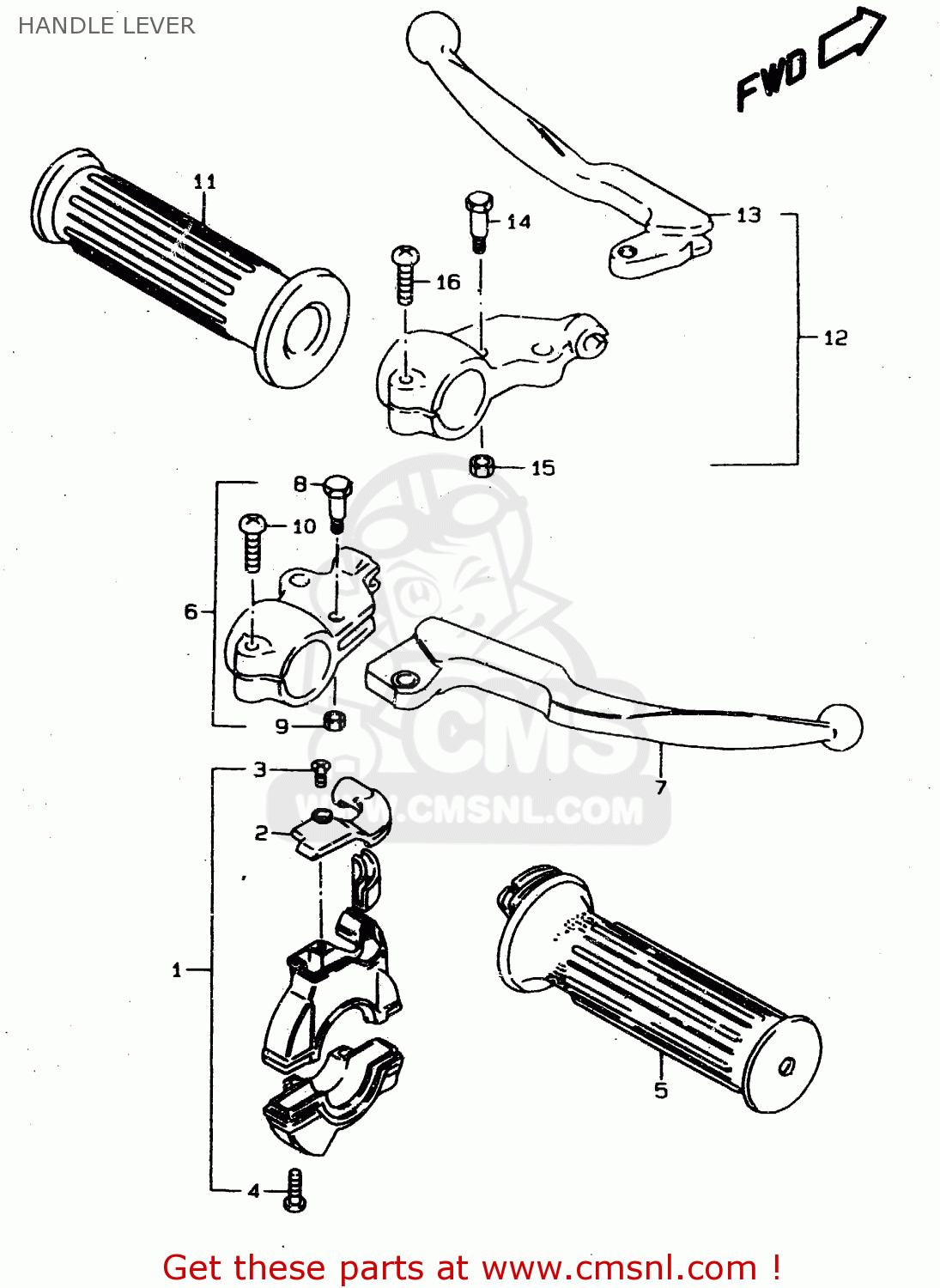

Handle lever diagram DS80 1999 (X) USA CANADA (E03 E28)
HANDLE LEVER DS80 1999 (X) USA CANADA (E03 E28)
×
prices are in EUR
ref
part #
description
quantity
1
5710013601
ref: 1
CASE ASSY,THROTTLE
€ 34.00
2
5712913601
ref: 2
COVER,THROTTLE CASE
€ 7.00
3
0212204103
ref: 3
SCREW,UPPER
€ 2.50
4
0211205167
ref: 4
SCREW
€ 2.50
5
5711013600
ref: 5
GRIP,THROTTLE
€ 13.00
6
5730046440
ref: 6
LEVER ASSY,BRAKE
€ 95.50
7
5742046440
ref: 7
LEVER,BRAKE
€ 44.50
8
5743113001
ref: 8
SCREW
€ 5.00
9
0831921053
ref: 9
NUT
€ 1.50
10
0211206203
ref: 10
SCREW, 6X20
€ 2.00
11
5721146111
ref: 11
GRIP,L
€ 7.50
12
5750046440
ref: 12
LEVER ASSY,CLUTCH
€ 85.00
13
5762046440
ref: 13
LEVER,CLUTCH
€ 49.00
14
5743113001
ref: 14
SCREW
€ 5.00
15
0831921053
ref: 15
NUT
€ 1.50
16
0211206203
ref: 16
SCREW, 6X20
€ 2.00
