PROP STAND - BRAKE PEDAL

DS80 1999 (X) USA CANADA (E03 E28)

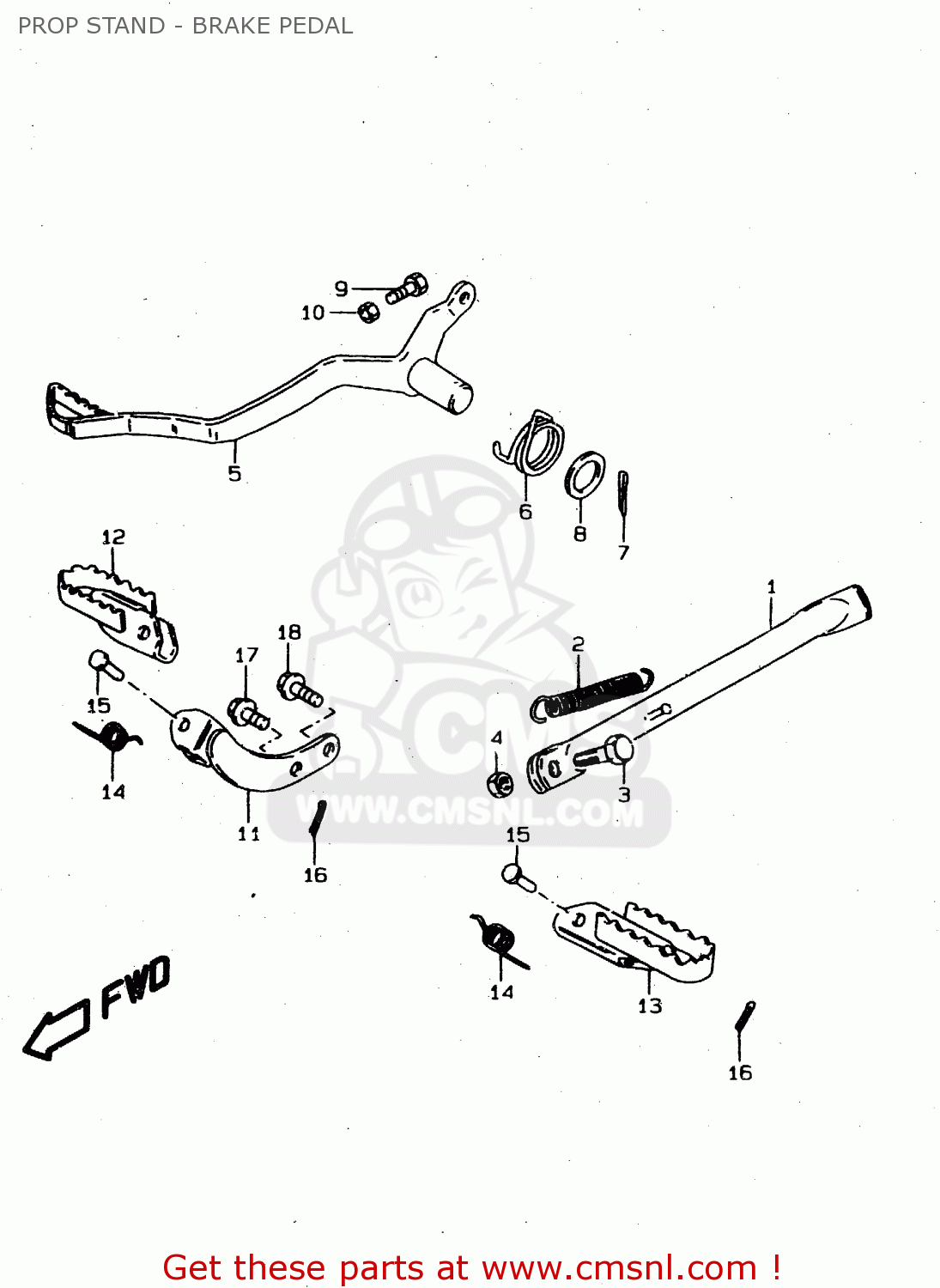

Prop stand - brake pedal diagram DS80 1999 (X) USA CANADA (E03 E28)

prices are in EUR

ref

part #

description

quantity

4231003400019
ref: 1

STAND,SIDE

€ 27.50

0944314017
ref: 2

SPRING

€ 6.50

0910010287
ref: 3

BOLT(10X27)

€ 4.50

0914010043
ref: 4

NUT

€ 2.00

4311003401
ref: 5

PEDAL,BRAKE

€ 29.50

0944825007
ref: 6

SPRING

€ 6.00

0411130308
ref: 7

COTTER PIN

€ 1.50

0916015002
ref: 8

WASHER(15.5X26X2.3)

€ 2.00

0910006009
ref: 9

BOLT(6X23)

€ 1.50

0831000063
ref: 10

NUT 6MM

€ 2.00

4351003401019
ref: 11

BAR,FRONT FOOTREST

€ 7.00

4355046000019
ref: 12

FOOTREST,FR,R

€ 9.00

4356046000019
ref: 13

FOOTREST,FR,L

€ 9.00

0944814012
ref: 14

SPRING

€ 3.00

0920008002
ref: 15

PIN

€ 2.00

0411120158
ref: 16

PIN

€ 1.50

0155010253
ref: 17

BOLT

€ 3.00

0910308505
ref: 18

BOLT(8X20)

€ 4.00
