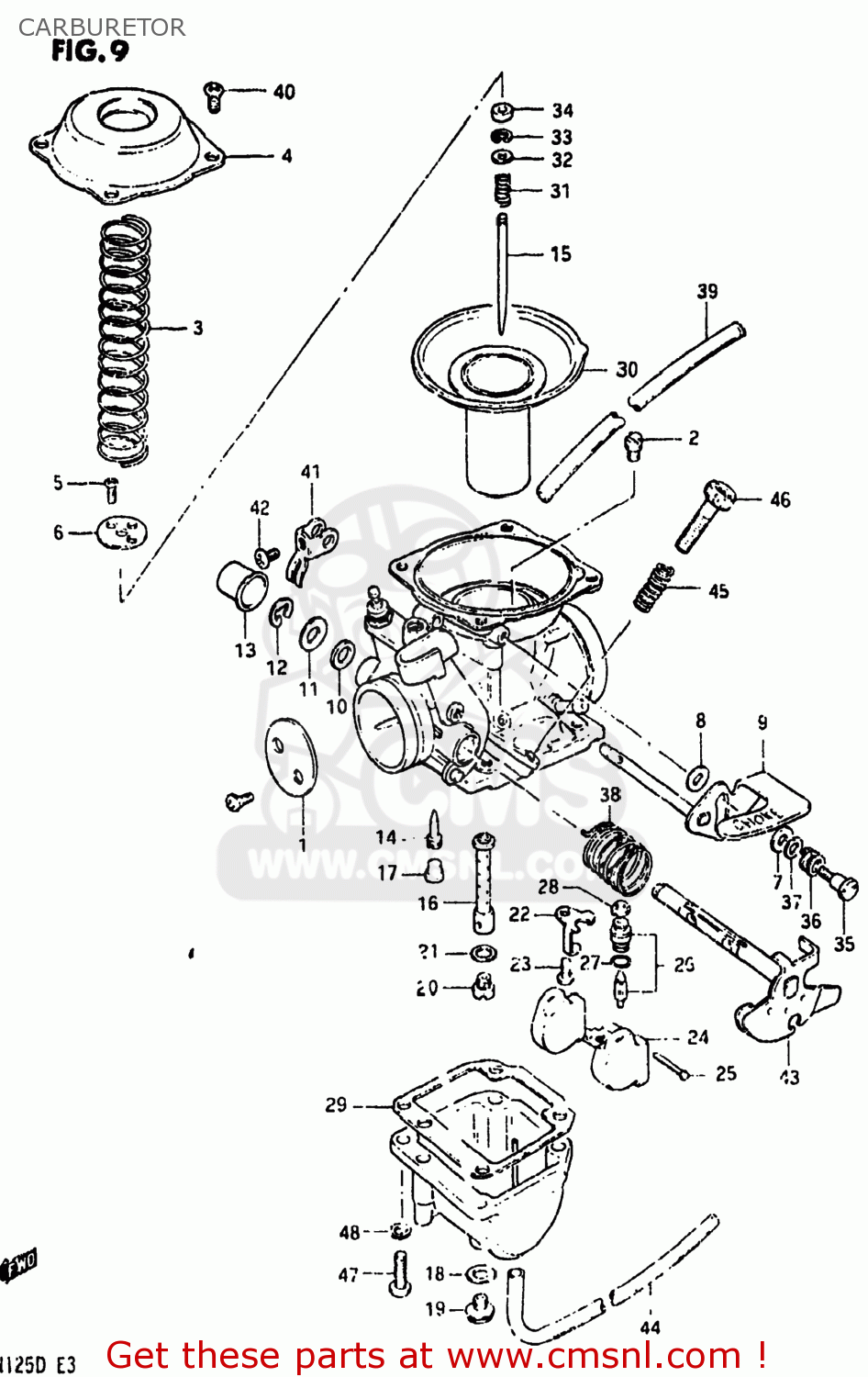

CARBURETOR

ref

part #

description

quantity

0

1320005300
ref: 0
13200-05303

CARBURETOR ASSEMBLY

€ 144.50

1

1355133200
ref: 1

VALVE,THROTTLE

€ 0.00

2

0949136005
ref: 2

JET,MAIN(180)

€ 9.50

3

1350333200
ref: 3

SPRING

€ 8.50

4

1350233210
ref: 4

COVER

€ 19.50

5

1339934010
ref: 5
02112-3308A

SCREW

€ 2.00

6

1338937400
ref: 6

PLATE

€ 5.50

7

1343105300
ref: 7

PACKING (NAS)

€ 5.50

8

1343244110
ref: 8
09160-04015

WASHER,STARTER LEVER (4.1X12X0.8)

€ 2.00

9

1341005300
ref: 9

SHAFT ASSY,STARTER

€ 19.00

10

1365151010
ref: 10

SEAL

€ 4.00

11

1355747070
ref: 11

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

12

1361744080
ref: 12

E RING

€ 3.50

13

1357847070
ref: 13

CAP

€ 5.50

14

0949235008
ref: 14

JET,PILOT(35)

€ 7.50

15

1338305300
ref: 15

NEEDLE,JET

€ 0.00

16

0949400370
ref: 16

JET,NEEDLE(P-2)

€ 21.00

17

1335744080
ref: 17

PLUG,NEEDLE JET

€ 4.50

18

1324644080
ref: 18

GASKET (NAS)

€ 3.50

19

1324744080
ref: 19

PLUG,DRAIN

€ 9.50

20

0949120012
ref: 20

JET,MAIN(102.5)

€ 8.50

21

1338203110
ref: 21

WASHER

€ 2.50

22

1337311400
ref: 22

PLATE,NEEDLE VALVE FITING

€ 7.00

23

0211204068
ref: 23
02112-0406B

SCREW 4X6

€ 2.00

24

1325005300
ref: 24

FLOAT

€ 30.00

25

1325492311
ref: 25

PIN,FLOAT

€ 2.00

26

1337011400
ref: 26
13370-44500

VALVE ASSEMBLY,NEEDLE

€ 40.50

27

6626399050
ref: 27
13374-35C00

O RING

€ 6.00

28

1337665010
ref: 28
13376-19F00

FILTER

€ 6.50

29

1325133200
ref: 29
13251-20E20

GASKET,FLOAT CHAMBER (NAS)

€ 12.00

30

1350033202
ref: 30
13500-053D0

DIAPHRAGM ASSEMBLY

€ 203.50

31

1338844030
ref: 31

SPRING

€ 6.00

32

1338244030
ref: 32

WASHER

€ 3.50

33

1339410010
ref: 33

CLIP

€ 4.50

34

1338747010
ref: 34

RING

€ 7.50

35

1343833110
ref: 35

SCREW

€ 5.50

36

1342643010
ref: 36

SPRING

€ 4.50

37

1343244120
ref: 37
13615-43010

WASHER

€ 2.50

38

1357337100
ref: 38

SPRING,THROTTLE SHAFT

€ 0.00

39

1368305300
ref: 39
44420-44AR0

HOSE

€ 13.00

40

0211205088
ref: 40
02112-05087

SCREW

€ 2.00

41

1342205300
ref: 41

LEVER

€ 0.00

42

1360531210
ref: 42

SCREW

€ 3.00

43

1355005300
ref: 43

SHAFT,THROTTLE

€ 0.00

44

1368305310
ref: 44
44420-44AR0

HOSE

€ 5.50

45

1326837420
ref: 45

SPRING,THROTTLE SCREW

€ 3.50

46

1326737100
ref: 46
13267-25D00

SCREW,THROTTLE STOP

€ 9.00

47

0211204168
ref: 47
02112-0416A

SCREW

€ 1.00

48

0832121048
ref: 48
08321-0104A

LOCK WASHER

€ 2.00
