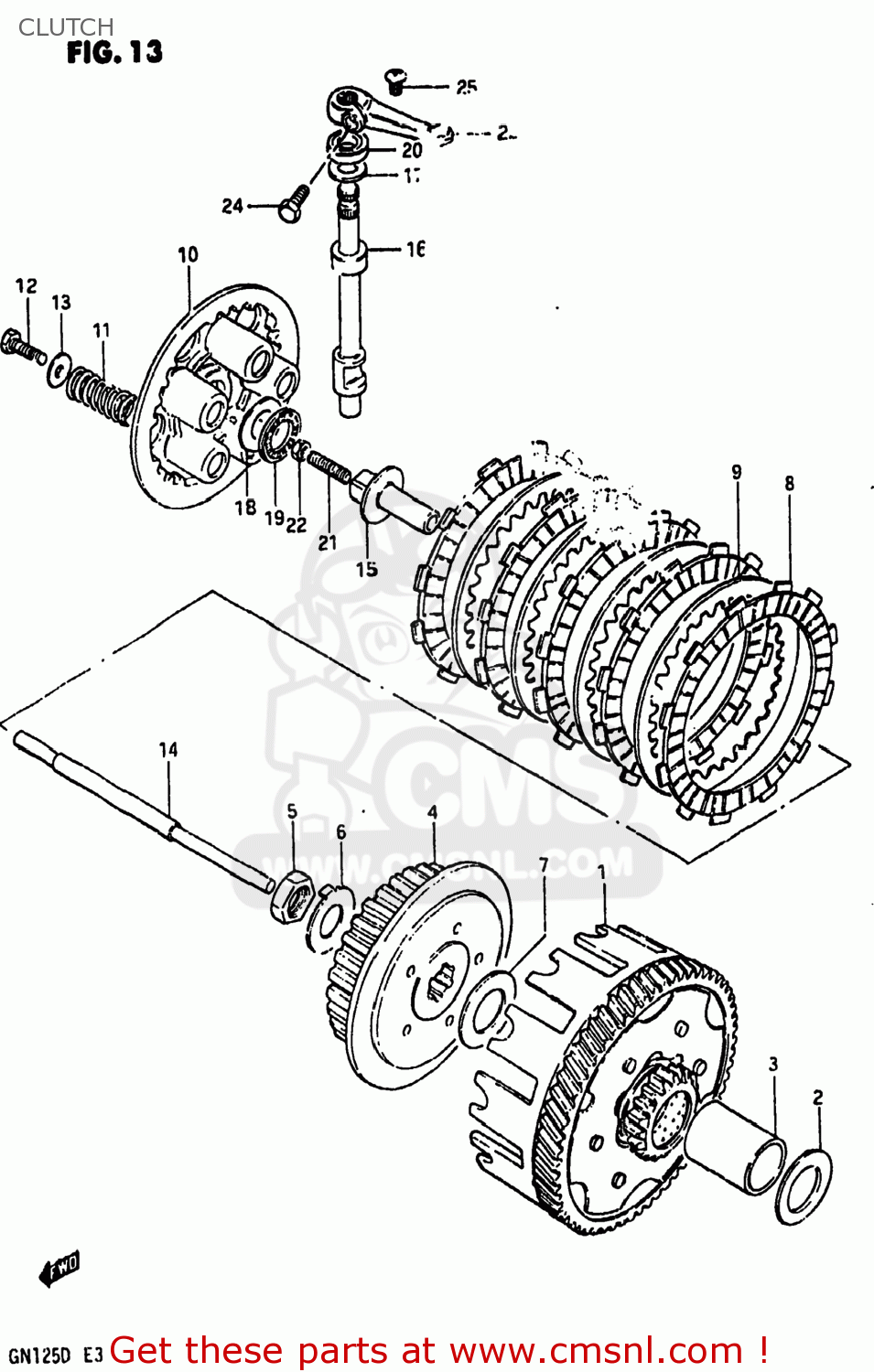

CLUTCH

ref

part #

description

quantity

1-1

2120005200
ref: 1-1
21200-05853

GEAR ASSEMBLY,PRIMARY DRIVE

€ 175.00

1-2

2120005850
ref: 1-2
21200-05853

GEAR ASSEMBLY,PRIMARY DRIVE

€ 175.00

2

0821120353
ref: 2

WASHER

€ 2.50

3

0918020010
ref: 3
21251-13E00

SPACER

€ 11.50

4

2141105200
ref: 4

HUB,CLUTCH SLEEVE

€ 47.00

5

0914016014
ref: 5
09140-16005

NUT

€ 4.50

6

0916916003
ref: 6

WASHER

€ 2.00

7

0821120352
ref: 7

WASHER

€ 3.00

8

2144128301
ref: 8
21441-13A01

PLATE,CLUTCH DRIVE

€ 8.50

9

2145128000
ref: 9
21451-19A00

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

10

2146214102
ref: 10
21462-14103

PLATE,CLUTCH PRESSURE

€ 16.00

11

0944015014
ref: 11

SPRING

€ 4.00

12

0910005002
ref: 12

BOLT(5X16)

€ 2.00

13

0916005037
ref: 13

WASHER(5.5X16X1.2)

€ 1.50

14

2311005200
ref: 14
23110-05203

ROD,CLUTCH PUSH

€ 11.00

15

2312138200
ref: 15
23121-38201

PIECE,CLUTCH PUSH

€ 17.00

16

2312205200
ref: 16

CAMSHAFT,CLUTCH RELEASE

€ 31.00

17

0821110201
ref: 17
09181-10195

WASHER,THRUST

€ 2.00

18

0916015015
ref: 18
09160-15045

WASHER

€ 4.00

19

0926315003
ref: 19

BEARING(15X28X2)

€ 7.00

20

0928210007
ref: 20
09282-10012

OIL SEAL

€ 7.50

21

0913406001
ref: 21
09134-06010

SCREW

€ 3.00

22

0831022068
ref: 22
08310-00067

NUT 6MM

€ 2.50

23

2327146000
ref: 23
23271-46010

ARM,CLUTCH RELEASE

€ 14.50

24

0110706168
ref: 24
01500-06167

BOLT, UPPER

€ 3.00

25

0214206108
ref: 25
02142-06107

SCREW

€ 2.00

all assemblies
