CARBURETOR (MODEL S/T)
GN125E 1994 (R) USA (E03)

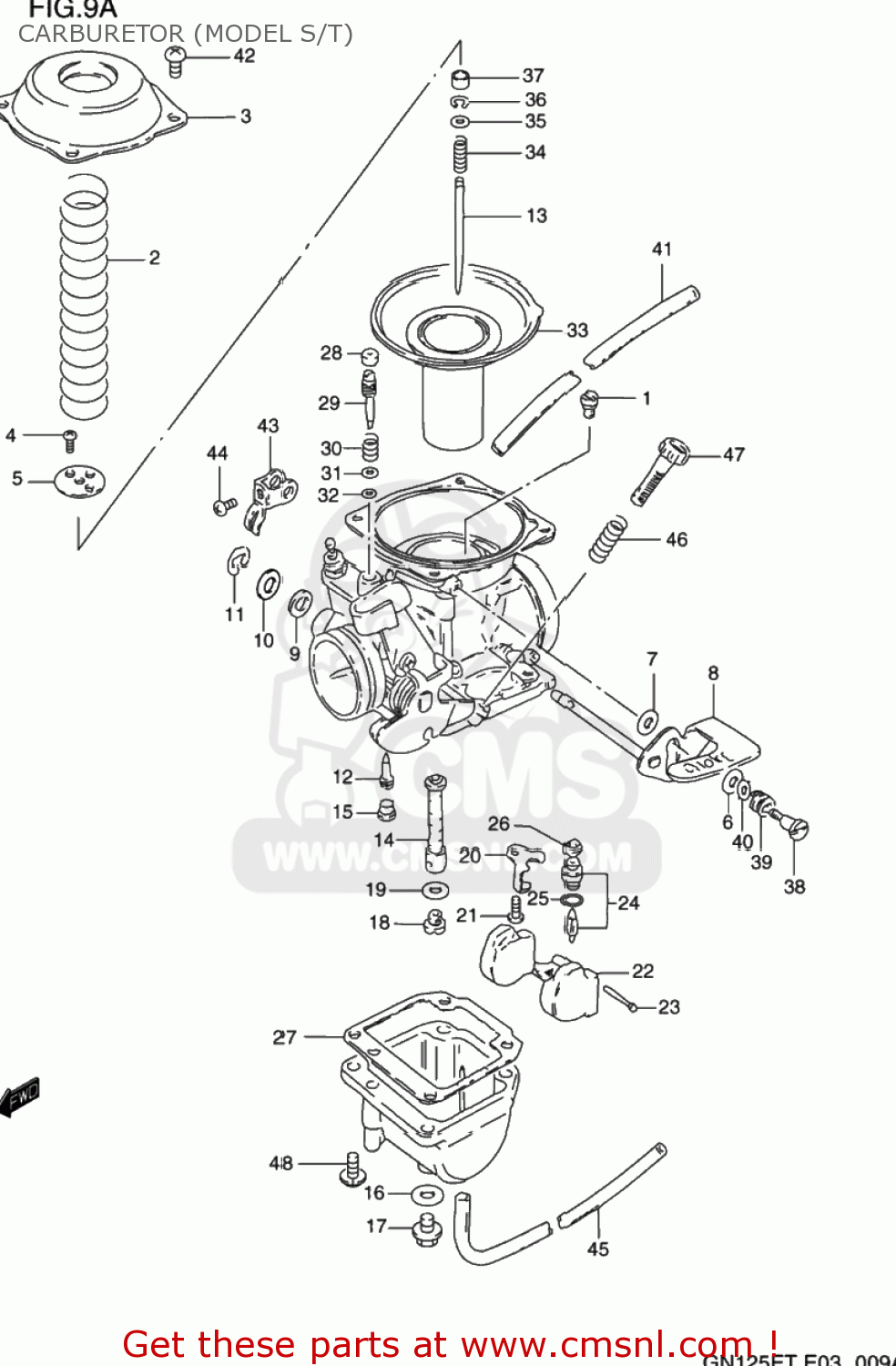

Carburetor (model s/t) diagram GN125E 1994 (R) USA (E03)
CARBURETOR (MODEL S/T) GN125E 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320005302
ref:
13200-05303
CARBURETOR ASSEMBLY
€ 144.50
1320005402
ref:
CARBURETOR ASSEMBLY
€ 145.50
1
0949136005
ref: 1
JET,MAIN(180)
€ 9.50
2
1350333200
ref: 2
SPRING
€ 8.50
3
1350233210
ref: 3
COVER
€ 19.50
4-1
1339934010
ref: 4-1
02112-3308A
SCREW
€ 2.00
4-2
0211233083
ref: 4-2
02112-3308A
SCREW
€ 2.00
5
1338937400
ref: 5
PLATE
€ 5.50
6
1343105300
ref: 6
PACKING (NAS)
€ 5.50
7
0916004015
ref: 7
WASHER(4.1X12X0.8)
€ 2.00
8
1341005300
ref: 8
SHAFT ASSY,STARTER
€ 19.00
9
1365151010
ref: 9
SEAL
€ 4.00
10
1355747070
ref: 10
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
11
1361744080
ref: 11
E RING
€ 3.50
12
0949235008
ref: 12
JET,PILOT(35)
€ 7.50
13-1
1338305300
ref: 13-1
NEEDLE,JET
€ 0.00
13-2
1338305400
ref: 13-2
NEEDLE,JET
€ 0.00
14-1
0949400370
ref: 14-1
JET,NEEDLE(P-2)
€ 21.00
14-2
0949400740
ref: 14-2
JET,NEEDLE (O-8)
€ 0.00
15
1335744080
ref: 15
PLUG,NEEDLE JET
€ 4.50
16
1324644080
ref: 16
GASKET (NAS)
€ 3.50
17
1324744080
ref: 17
PLUG,DRAIN
€ 9.50
18-1
0949120012
ref: 18-1
JET,MAIN(102.5)
€ 8.50
18-2
0949197003
ref: 18-2
JET,MAIN(97.5)
€ 8.50
19
1333244080
ref: 19
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
20
1337339110
ref: 20
PLATE
€ 6.50
21
0211204063
ref: 21
02112-0406B
SCREW 4X6
€ 2.00
22
1325005300
ref: 22
FLOAT
€ 30.00
23
1325492311
ref: 23
PIN,FLOAT
€ 2.00
24
1337044500
ref: 24
VALVE ASSY,NEEDLE
€ 40.50
25
1337444080
ref: 25
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
26
1337684110
ref: 26
13376-19F00
FILTER
€ 6.50
27
1325105400
ref: 27
13251-20E20
GASKET,FLOAT CHAMBER (NAS)
€ 12.00
28
1328105A00
ref: 28
PLUG
€ 3.50
29
1327945400
ref: 29
SCREW,PILOT
€ 8.00
30
1326847070
ref: 30
SPRING
€ 5.00
31
1329129900
ref: 31
WASHER
€ 2.00
32
1329529900
ref: 32
O RING,PILOT AIR SCREW
€ 4.00
33
1350005400
ref: 33
13500-053D0
DIAPHRAGM ASSEMBLY
€ 203.50
34
1338832400
ref: 34
SPRING
€ 0.00
35
1338244030
ref: 35
WASHER
€ 3.50
36
1339410010
ref: 36
CLIP
€ 4.50
37
1338747010
ref: 37
RING
€ 7.50
38
1343833110
ref: 38
SCREW
€ 5.50
39
1342643010
ref: 39
SPRING
€ 4.50
40
1361543010
ref: 40
WASHER,STARTER SHAFT
€ 2.50
41
0935250823600
ref: 41
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
42
0211205083
ref: 42
02112-0508A
SCREW
€ 2.00
43
1342205300
ref: 43
LEVER
€ 0.00
44
1360531210
ref: 44
SCREW
€ 3.00
45-1
0935135653600
ref: 45-1
HOSE(3.5X6.5X600)
€ 5.50
45-2
0935236602600
ref: 45-2
HOSE(3.6X6X600)
€ 2.50
45-2
0935236602600
ref: 45-2
HOSE(3.6X6X600)
€ 2.50
46
1326837420
ref: 46
SPRING,THROTTLE SCREW
€ 3.50
47
1326737100
ref: 47
13267-25D00
SCREW,THROTTLE STOP
€ 9.00
48
1360104148
ref: 48
SCREW
€ 2.50
