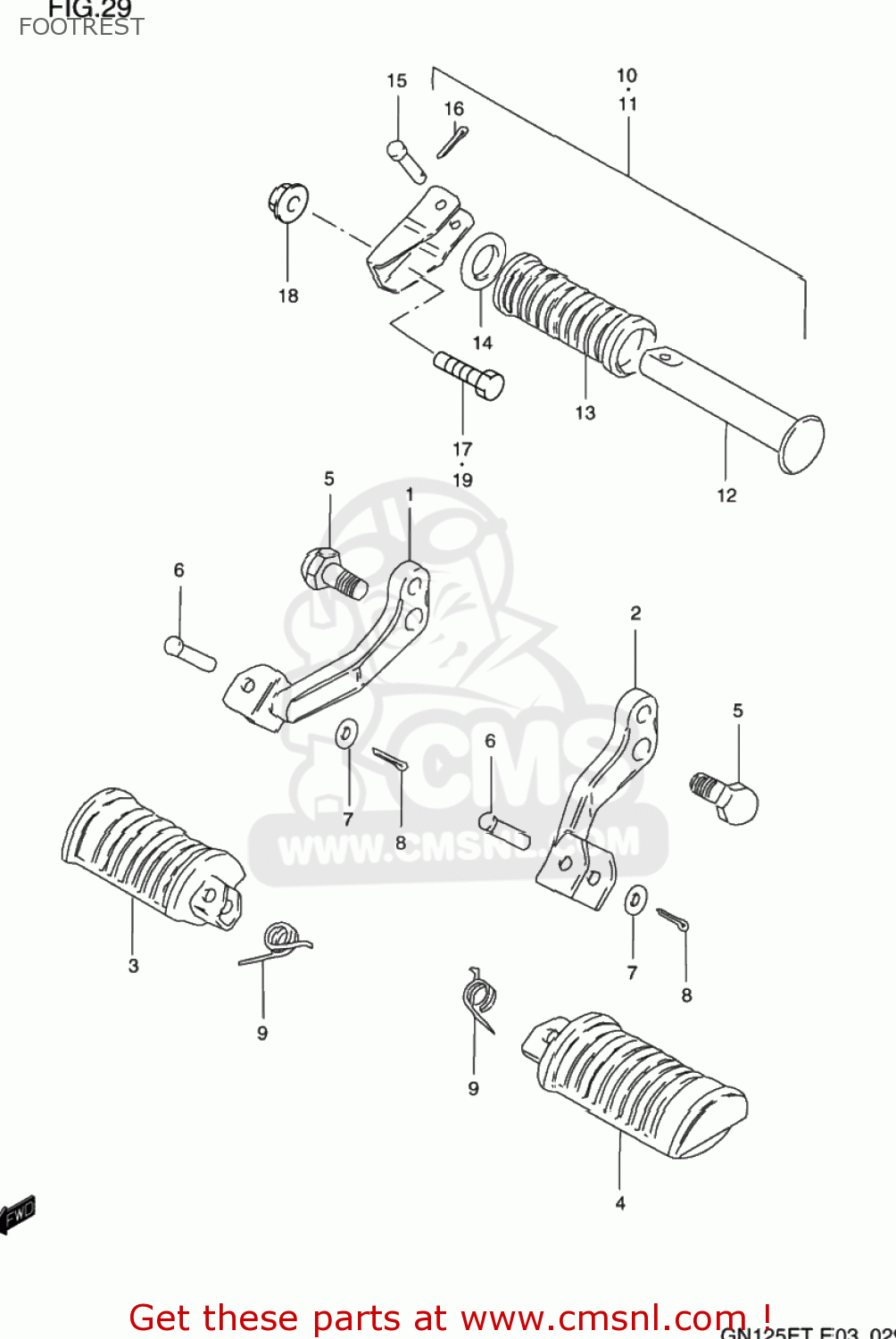

FOOTREST

ref

part #

description

quantity

1

4351005330
ref: 1

HOLDER,FR FOOTREST,R

€ 35.50

2

4352005330
ref: 2

HOLDER,FR FOOTREST,L

€ 35.50

3

4355037301
ref: 3

RUBBER,PILLION FOOTREST,R

€ 22.50

4

4356037301
ref: 4

RUBBER,PILLION FOOTREST,L

€ 22.50

5-1

0152712257
ref: 5-1
01550-12257

BOLT

€ 2.50

5-2

0155012257
ref: 5-2

BOLT

€ 2.50

6

0920008002
ref: 6

PIN

€ 2.00

7-1

0832211088
ref: 7-1
08322-01087

WASHER

€ 2.00

7-2

0832201087
ref: 7-2

WASHER

€ 2.00

8

0411120208
ref: 8
04111-2020A

PIN 20X20

€ 1.50

9

0944814012
ref: 9

SPRING

€ 3.00

10-1

4360005310
ref: 10-1

FOOTREST ASSEMBLY,REAR,RIGHT

€ 44.00

10-2

4360005301
ref: 10-2

FOOTREST ASSY,PILLION,R

€ 21.00

11-1

4370005310
ref: 11-1

FOOTREST ASSY,PILLION,L

€ 44.00

11-2

4370005301
ref: 11-2

FOOTREST ASSY,PILLION,L

€ 21.00

12-1

4361038300
ref: 12-1

BAR,PILLION FOOTREST

€ 21.50

12-2

4361003001
ref: 12-2

BAR,FOOTREST RUBBER

€ 5.50

13

4361233200
ref: 13

RUBBER,PILLION FOOTREST

€ 4.50

14

0916019006
ref: 14
09160-19024

WASHER (19.5X32X2)

€ 2.00

15

0920006033
ref: 15

PIN

€ 2.00

16

0411120158
ref: 16
04111-2015A

PIN

€ 1.50

17-1

0151710458
ref: 17-1
01550-1045B

BOLT 10X45

€ 3.00

17-2

0155010453
ref: 17-2
01550-1045B

BOLT

€ 3.00

18-1

0831610107
ref: 18-1

NUT

€ 2.00

18-2

0831610103
ref: 18-2
08316-1010B

NUT

€ 2.00

19-1

0151710257
ref: 19-1
01550-1025A

BOLT

€ 3.00

19-2

0155010253
ref: 19-2
01550-1025A

BOLT

€ 3.00
