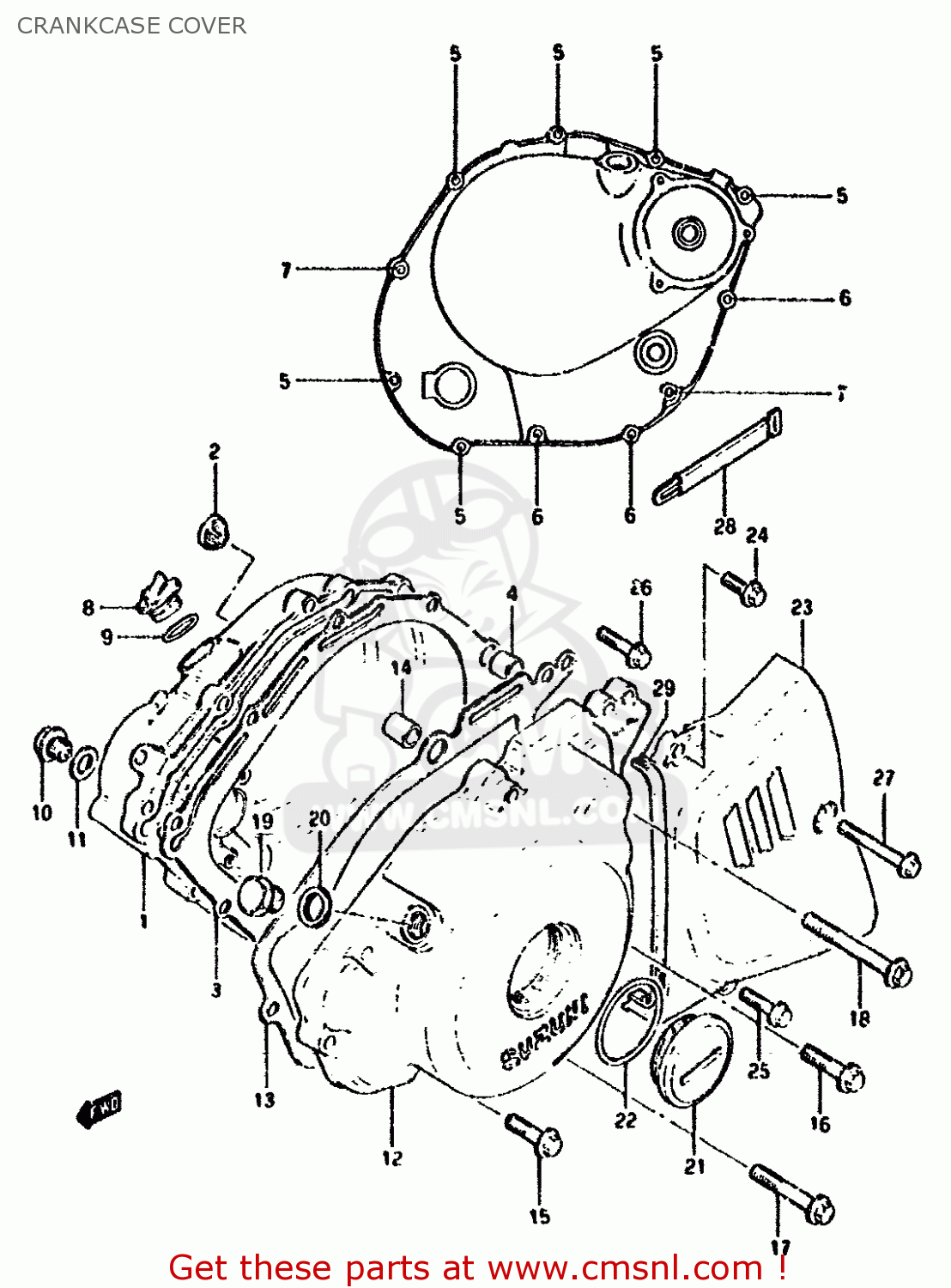

CRANKCASE COVER

ref

part #

description

quantity

1

1134038302
ref: 1

COVER,CLUTCH

€ 230.50

2

1197145010
ref: 2

LENS,OIL LEVEL CHECK

€ 13.00

3

1148238310
ref: 3
-11482-38301

GASKET,CLUTCH COVER (NAS)

€ 26.50

4

0920613001
ref: 4

PIN

€ 2.50

5

0154706257
ref: 5

BOLT

€ 2.50

6

0154706357
ref: 6

BOLT

€ 2.50

7

0154706457
ref: 7

BOLT

€ 2.50

8

0925920007
ref: 8

PLUG(20X10)

€ 6.50

9

0928017003
ref: 9

O RING(D:3.1,ID:16.8)

€ 2.00

10

0924714012
ref: 10

PLUG (14X12)

€ 3.50

11

0916814004
ref: 11

GASKET(14X19.2X2) (NAS)

€ 2.50

12

1135138300
ref: 12

COVER,MAGNETO

€ 156.50

13

1148337D00
ref: 13
-11483-38310

GASKET,MAGNETO COVER (NAS)

€ 14.00

14

0920613001
ref: 14

PIN

€ 2.50

15

0154706257
ref: 15

BOLT

€ 2.50

16

0154706357
ref: 16

BOLT

€ 2.50

17

0154706507
ref: 17

BOLT

€ 2.50

18

0154706607
ref: 18

BOLT

€ 2.50

19

0924712104
ref: 19

PLUG,12X9

€ 2.50

20

0916812002
ref: 20

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

21

0925936011
ref: 21
-09259-36004

PLUG,36X10

€ 8.50

22

0928033004
ref: 22

O RING(D:3.1,ID:32.7)

€ 2.50

23

1136138300
ref: 23

COVER,ENGINE SPROCKET

€ 92.50

24

0154705207
ref: 24

BOLT

€ 2.00

25

0154705257
ref: 25

BOLT

€ 2.00

26

0154705307
ref: 26

BOLT

€ 2.00

27-1

0154705458
ref: 27-1
MODEL F/J/K/L/M/N/P

BOLT

€ 2.00

27-2

0154705457
ref: 27-2
MODEL R

BOLT

€ 2.00

28

0940711301
ref: 28

CLAMP L:110

€ 6.00

29

1136238300
ref: 29

DAMPER,ENGINE SPROCKET COVER

€ 12.50
