REAR COMBINATION LAMP (E25,E39)

GN250 1993 (P) AUSTRALIA (E24)

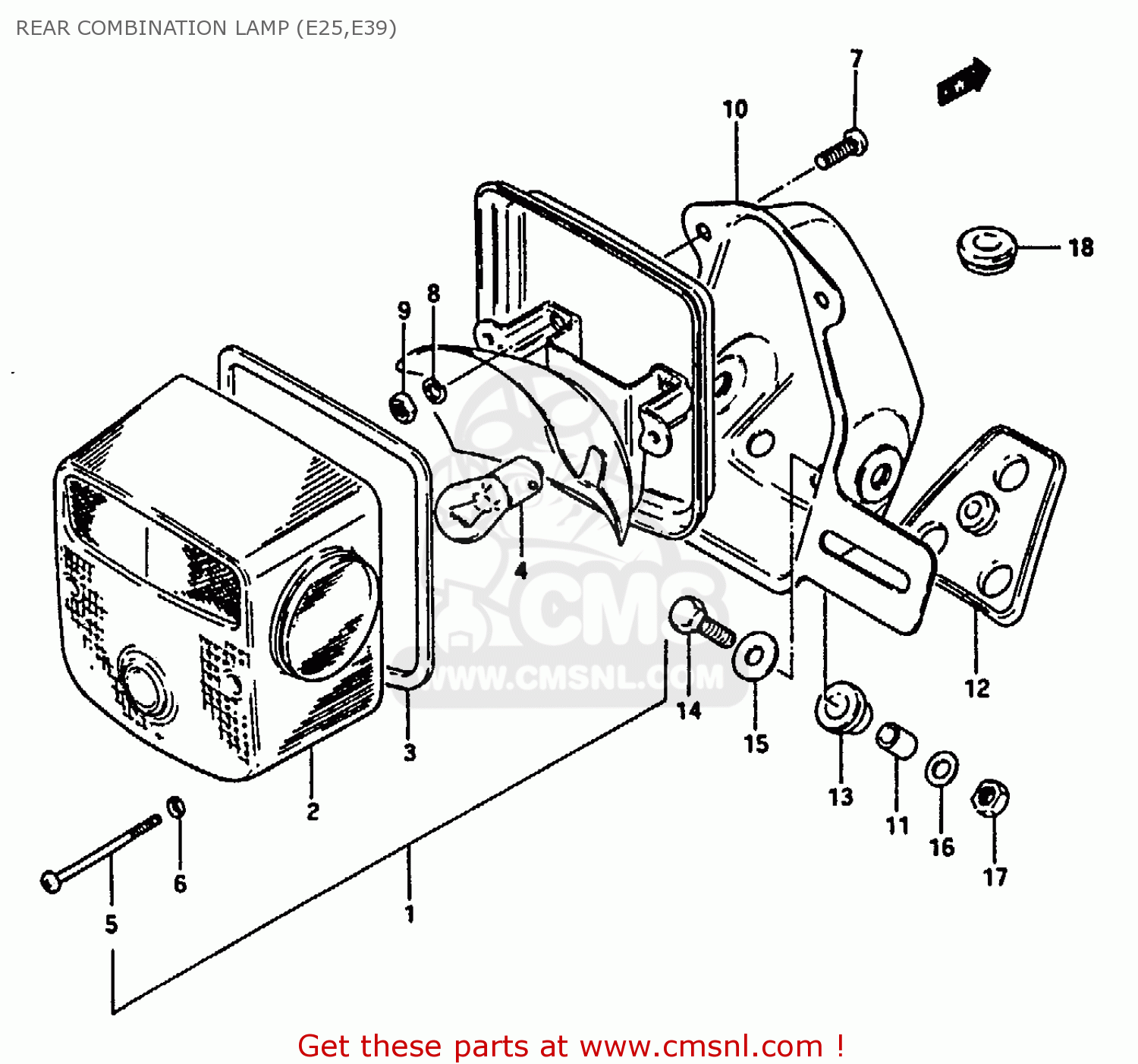

Rear combination lamp (e25,e39) diagram GN250 1993 (P) AUSTRALIA (E24)

prices are in EUR

ref

part #

description

quantity

3572038361
ref: 1

LAMP UNIT,RR COMBNATION

€ 136.00

3571238361
ref: 2

LENS

€ 51.00

3571330510
ref: 3

GASKET (NAS)

€ 6.00

0947112057
ref: 4

BULB 12V21/5W

€ 6.00

0912504002
ref: 5

SCREW (4X55)

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0211206167
ref: 7

SCREW

€ 2.50

8-1

0832121067
ref: 8-1
MODEL F/J/K/L/M/N/P

WASHER,LOCK

€ 2.50

8-2

0832101067
ref: 8-2
MODEL R

WASHER,LOCK

€ 2.50

9-1

0831011067
ref: 9-1
MODEL F/J/K/L/M/N/P

NUT 6MM

€ 2.50

9-2

0831000067
ref: 9-2
MODEL R

NUT

€ 2.50

3573038380
ref: 10

BRACKET UNIT,TAIL LAMP

€ 51.00

3576626470
ref: 11

SPACER

€ 2.00

3576526470
ref: 12

CUSHION

€ 10.00

3576426470
ref: 13

CUSHION

€ 2.50

0150006207
ref: 14

BOLT

€ 2.00

0916006027
ref: 15

WASHER (6.5X20X1.2)

€ 2.00

0832201067
ref: 16

WASHER

€ 2.00

0831011067
ref: 17

NUT 6MM

€ 2.50

0930809004
ref: 18

GROMMET

€ 0.00
