CRANKCASE COVER
GN400T 1981 (X) USA (E03)

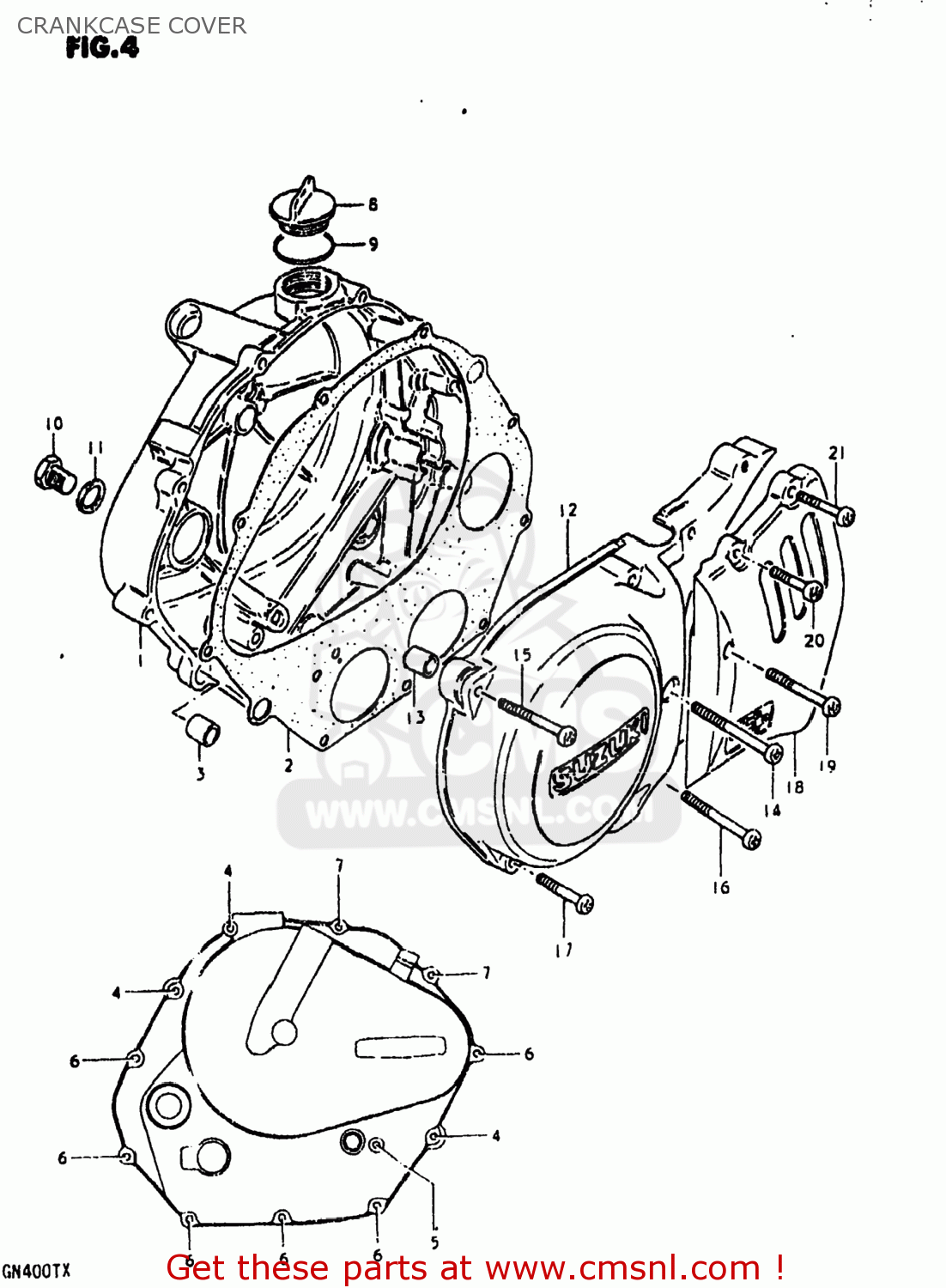

Crankcase cover diagram GN400T 1981 (X) USA (E03)
CRANKCASE COVER GN400T 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134032601
ref: 1
11340-32602
COVER,CLUTCH
€ 103.00
2
1148232400
ref: 2
11482-32400-H17
GASKET,CLUTCH COVER (MCA)
€ 23.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206508
ref: 4
02112-06507
SCREW
€ 2.50
5
0211206408
ref: 5
02112-06407
SCREW
€ 2.00
6
0211206358
ref: 6
02112-06357
SCREW (6X35)
€ 2.50
7
0211206258
ref: 7
02112-06257
SCREW
€ 2.00
8
0925930001
ref: 8
09200-30810
CAP
€ 8.50
9
0928032005
ref: 9
O RING(D:2.2,ID:32)
€ 2.00
10
0924714012
ref: 10
09247-14026
PLUG (14X12)
€ 3.50
11
0916814004
ref: 11
GASKET(14X19.2X2) (NAS)
€ 2.50
12
1135132600
ref: 12
11351-32601
COVER
€ 87.00
13
0920613001
ref: 13
04211-13189
PIN
€ 2.50
14
0211206608
ref: 14
02112-06607
SCREW 6X60
€ 2.50
15
0211206508
ref: 15
02112-06507
SCREW
€ 2.50
16
0211206458
ref: 16
02112-06457
SCREW (6X45)
€ 2.00
17
0211206358
ref: 17
02112-06357
SCREW (6X35)
€ 2.50
18
1136132600
ref: 18
11361-32601
COVER,SPROCKET
€ 49.00
19
0211206408
ref: 19
02112-06407
SCREW
€ 2.00
20
0211206258
ref: 20
02112-06257
SCREW
€ 2.00
21
0211206208
ref: 21
02112-06207
SCREW
€ 2.00
