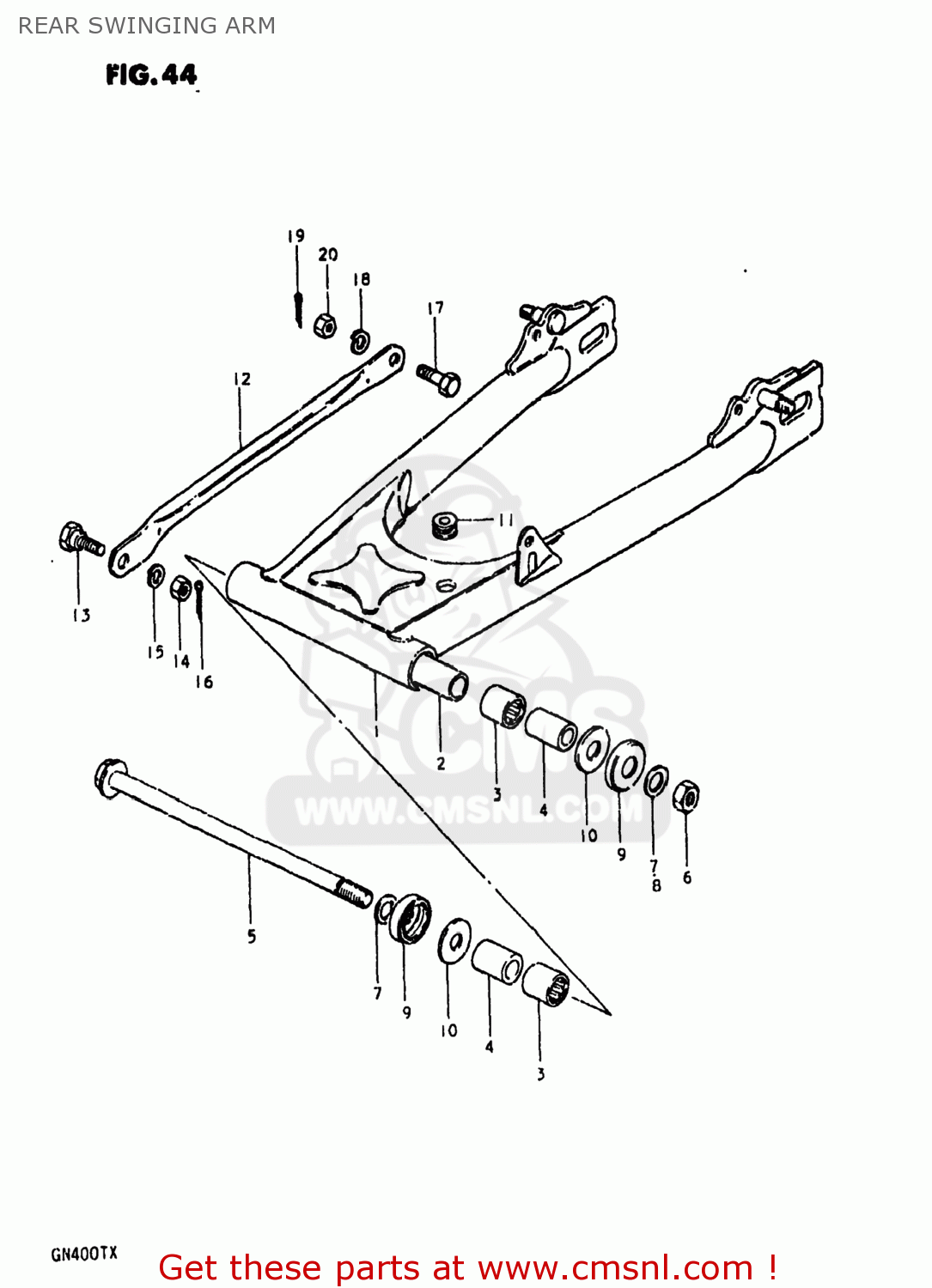

REAR SWINGING ARM

ref

part #

description

quantity

1

6110037840019
ref: 1

SWING ARM ASSEMBLY,REAR

€ 114.00

2

0918016022
ref: 2

SPACER (16.2X21.7X129)

€ 14.50

3

0926322017
ref: 3

BEARING(22X29X30)

€ 18.50

4

6125137300
ref: 4
61251-38B00

SPACER,REAR SWING ARM

€ 14.00

5-1

6121137300
ref: 5-1
61211-37301

SHAFT,REAR SWING ARM

€ 52.00

5-2

6121137301
ref: 5-2

SHAFT,RR SWINGINGARM PIVOT

€ 52.00

6

0831921168
ref: 6
08319-2116A

NUT 16MM

€ 5.00

7

0832211167
ref: 7
08322-01167

WASHER

€ 2.00

8

0832211167
ref: 8
08322-01167

WASHER

€ 2.00

9

6126232410
ref: 9

COVER,RR SWGARM DUST SEAL

€ 10.00

10

0821116341
ref: 10

WASHER

€ 2.00

11

0932008020
ref: 11

CUSHION

€ 3.00

12

6431131001
ref: 12
64311-31001-13L

TORQUE LINK,REAR

€ 28.00

13

0911108012
ref: 13

BOLT(8X22.5)

€ 3.00

14

0914008008
ref: 14

NUT

€ 1.50

15

0832121088
ref: 15
08321-01087

LOCK WASHER

€ 2.00

16

0411120158
ref: 16
04111-2015A

PIN

€ 1.50

17

0910110003
ref: 17

BOLT(10X31)

€ 4.00

18

0832121108
ref: 18
08321-01107

LOCK WASHER

€ 2.00

19

0411120158
ref: 19
04111-2015A

PIN

€ 1.50

20

0831011108
ref: 20
08310-00107

NUT

€ 2.50
