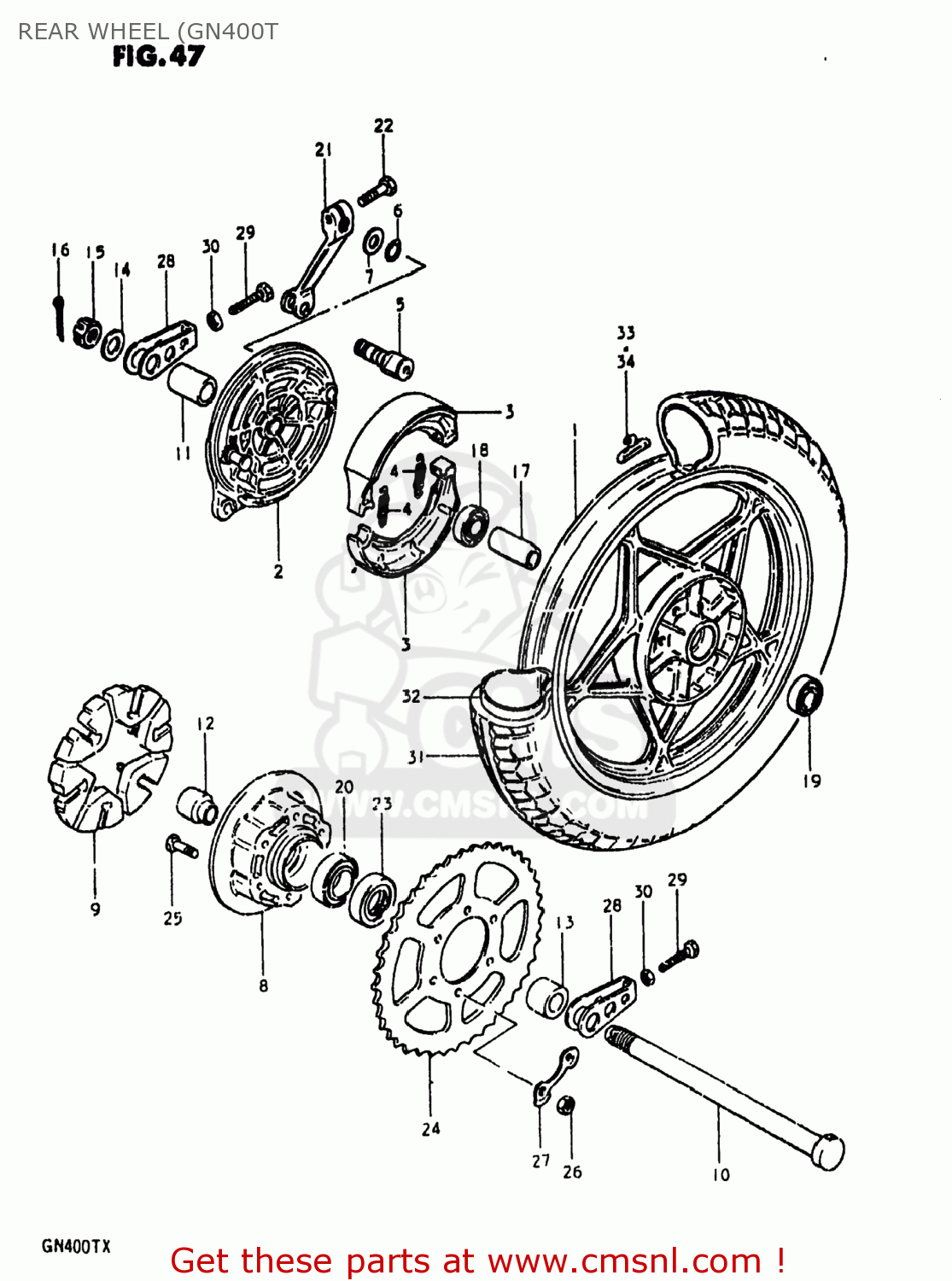

REAR WHEEL (GN400T

ref

part #

description

quantity

1

6415037310
ref: 1
64150-37300-12V

WHEEL,REAR

€ 239.00

2

6421037300
ref: 2

PANEL,REAR HUB

€ 69.50

3

6441011301
ref: 3
64400-11860

SHOE,BRAKE

€ 29.50

4

5542041100
ref: 4

SPRING

€ 5.50

5

5444008003
ref: 5
54440-08004

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6
09280-15003

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7
09160-15048

WASHER (15X24X1.6)

€ 2.50

8

6461137300
ref: 8

DRUM,REAR SPROCKET MOUNT

€ 81.00

9

6465111300
ref: 9

ABSORBER,RR HUB SHOCK

€ 12.50

10

6471134001
ref: 10

AXLE,REAR

€ 42.00

11

0918017057
ref: 11

SPACER (17.5X28X49.8)

€ 12.50

12

6473334000
ref: 12

SPACER,REAR HUB BEARING

€ 24.00

13

0918017042
ref: 13

SPACER(17X30.5X22.3)

€ 8.50

14

0916017013
ref: 14
09160-17050

WASHER (17X30X3.2)

€ 2.00

15

0914116001
ref: 15

NUT

€ 6.50

16

0411140308
ref: 16
04111-4030A

PIN,COTTER

€ 1.50

17

0918017056
ref: 17
09180-17056-XC0

SPACER (17.6X24X57)

€ 19.00

18

0814363037
ref: 18

BEARING

€ 23.00

19

0814362037
ref: 19

BEARING

€ 18.50

20

0811362057
ref: 20

BEARING

€ 18.00

21

6445144001
ref: 21

LEVER,RR BRAKE CAM

€ 111.00

22

0110706258
ref: 22
01500-06257

BOLT

€ 2.00

23

0928530001
ref: 23

SEAL,OIL(30.5X52X8)

€ 20.00

24

6451137310
ref: 24

SPROCKET,REAR (NT:37)

€ 20.00

25

0911910002
ref: 25
09105-10001

BOLT

€ 3.50

26

0831012108
ref: 26
08310-00107

NUT

€ 2.50

27

0916910007
ref: 27

WASHER

€ 7.50

28

6142037300
ref: 28

ADJUSTER,CHAIN

€ 7.50

29

0910408018
ref: 29
09104-08034

BOLT 8X50

€ 3.00

30

0831012088
ref: 30
08310-00087

NUT

€ 2.00

31-1

6510037310
ref: 31-1
65100-38330

TIRE

€ 210.00

31-2

6510037330
ref: 31-2

TIRE

€ 0.00

32

6520037300
ref: 32

TUBE ASSY,WHEEL,INNER 4.60-16

€ 31.50

33

5541145100
ref: 33
55412-17G00

BALANCER,WHEEL

€ 7.00

34

5541245100
ref: 34

BALANCER,WHEEL

€ 4.00
