CHAIN CASE

GP100E 1981 (X) NORWAY (E16)

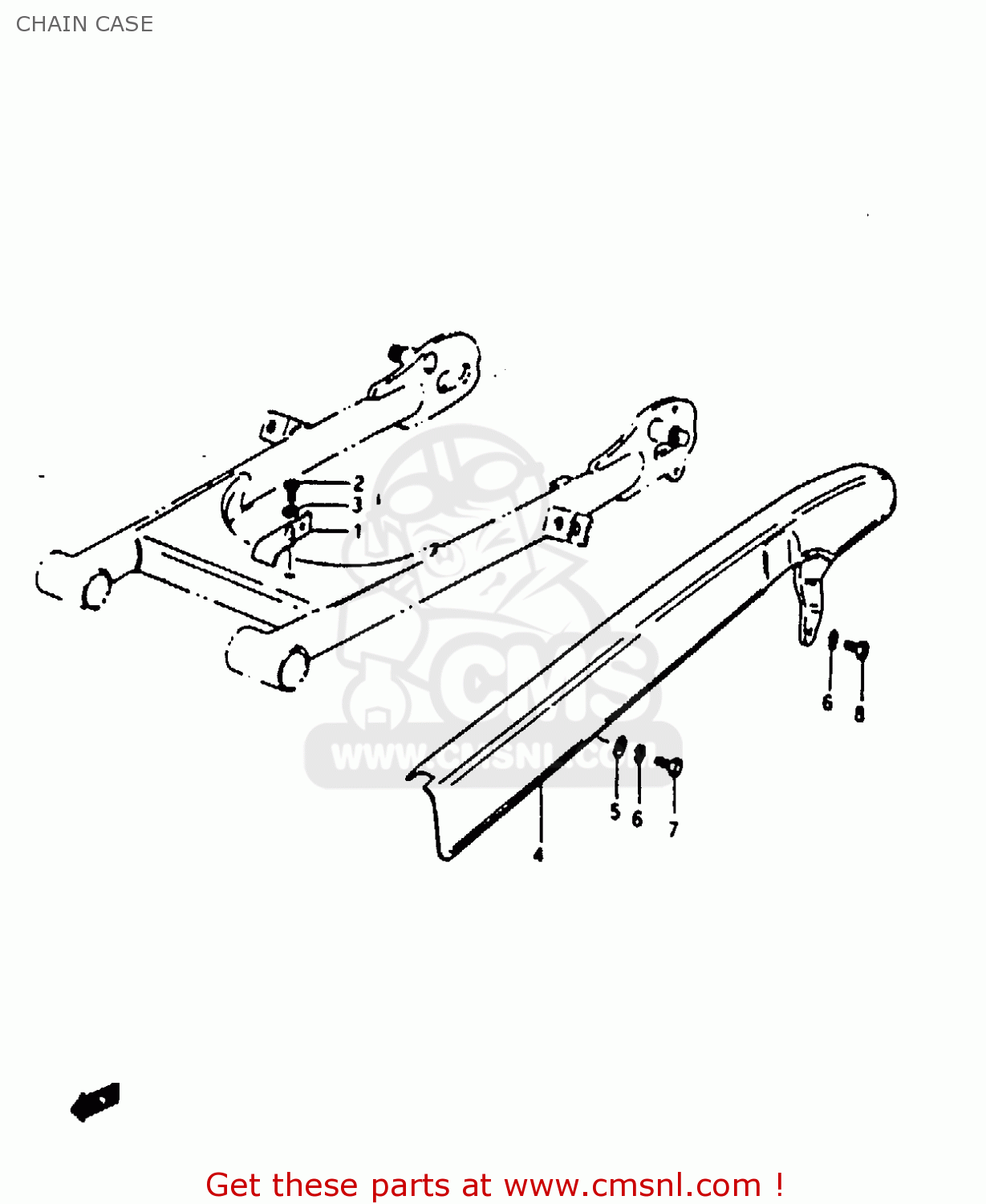

Chain case diagram GP100E 1981 (X) NORWAY (E16)

CHAIN CASE GP100E 1981 (X) NORWAY (E16)

CHAIN CASE GP100E 1981 (X) NORWAY (E16)

prices are in EUR

ref

part #

description

quantity

1

6115039101
ref: 1

BRACKET, CHAIN CASE FRONT

€ 6.50

2

0211206108
ref: 2

SCREW

€ 1.50

3

0832121067
ref: 3

WASHER,LOCK

€ 2.50

4

6131036204
ref: 4

CASE,CHAIN

€ 149.00

5

0832221067
ref: 5

WASHER

€ 2.00

6

0832121067
ref: 6

WASHER,LOCK

€ 2.50

7

0110706107
ref: 7

BOLT

€ 2.00

8

0110706127
ref: 8

BOLT

€ 2.00
