REAR COMBINATION LAMP (E2)
GP100E 1981 (X) NORWAY (E16)

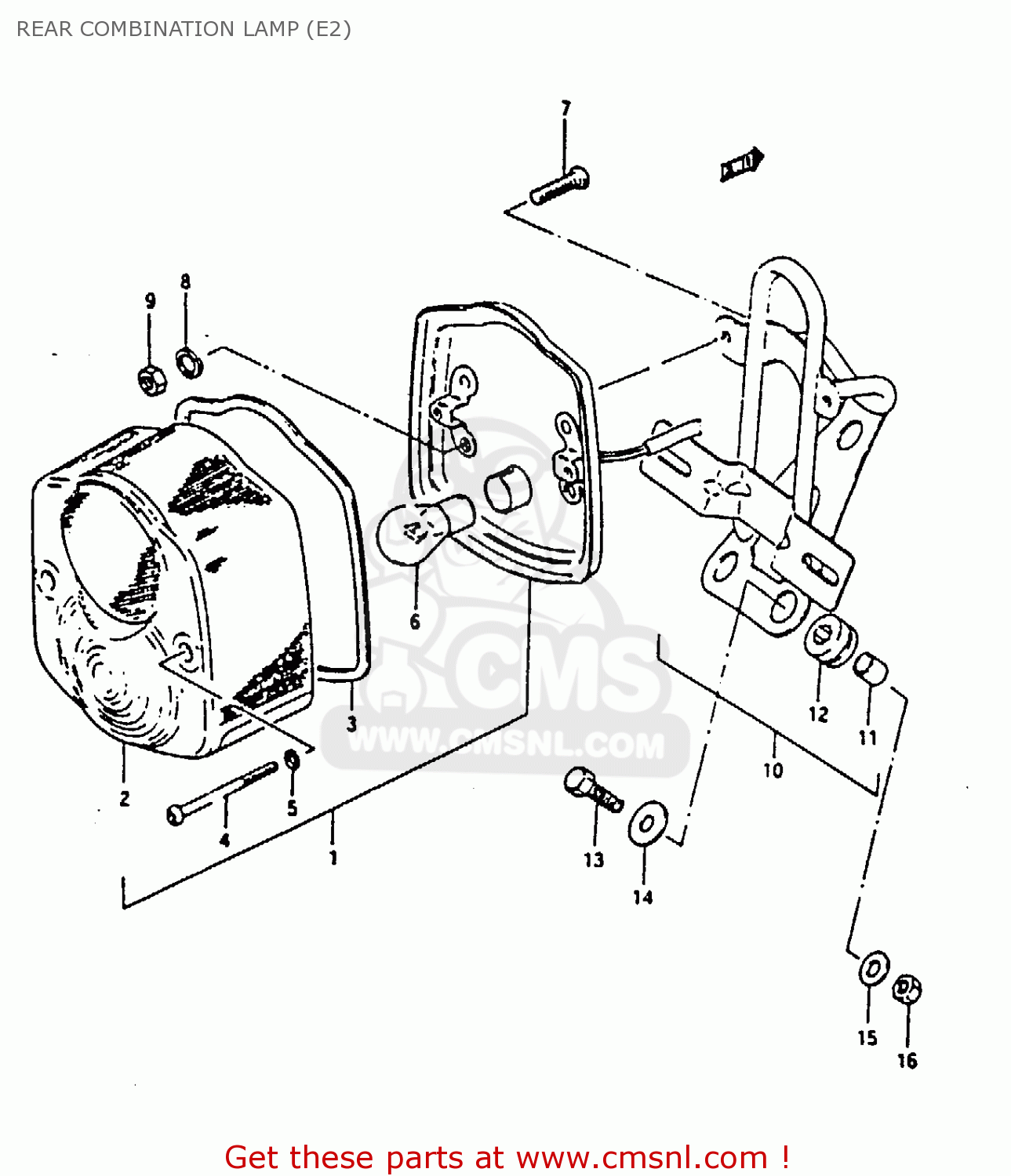

Rear combination lamp (e2) diagram GP100E 1981 (X) NORWAY (E16)
REAR COMBINATION LAMP (E2) GP100E 1981 (X) NORWAY (E16)
×
prices are in EUR
ref
part #
description
quantity
1-1
3572039183
ref: 1-1
~F.NO. 106220
LAMP UNIT, TAIL
€ 81.50
1-2
3572039184
ref: 1-2
F. NO. 106221-107350
LAMP UNIT, TAIL
€ 81.50
1-3
3572039270
ref: 1-3
F. NO. 107351~
LAMP UNIT, TAIL
€ 70.00
2-1
3571246623
ref: 2-1
~F. NO. 106220
LENS,RR COMBI
€ 39.00
2-2
3571202262
ref: 2-2
F. NO. 106221~107350
LENS
€ 39.00
2-3
3571239270
ref: 2-3
F.NO. 107351~
LENS
€ 39.00
3
3571346620
ref: 3
GASKET (NAS)
€ 8.00
4
3562335110
ref: 4
SCREW
€ 3.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6-1
0947106042
ref: 6-1
~F.NO. 107350
BULB (6V,21/5W)
€ 12.50
6-2
0947106034
ref: 6-2
F.NO. 107351~
BULB (6V,21/5W)
€ 0.00
7
0211205107
ref: 7
SCREW
€ 2.00
8
0832121057
ref: 8
LOCK WASHER
€ 2.00
9
0831011058
ref: 9
NUT
€ 2.50
10
3573039191
ref: 10
BRACKET ASSY
€ 75.50
11
3576635300
ref: 11
SPACER,RR COMBINATION
€ 2.00
12
3576535300
ref: 12
CUSHION,RR COMBINATION
€ 3.00
13
0110706257
ref: 13
BOLT
€ 2.00
14
0916006027
ref: 14
WASHER (6.5X20X1.2)
€ 2.00
15
0832221067
ref: 15
WASHER
€ 2.00
16
0831011067
ref: 16
NUT 6MM
€ 2.50
