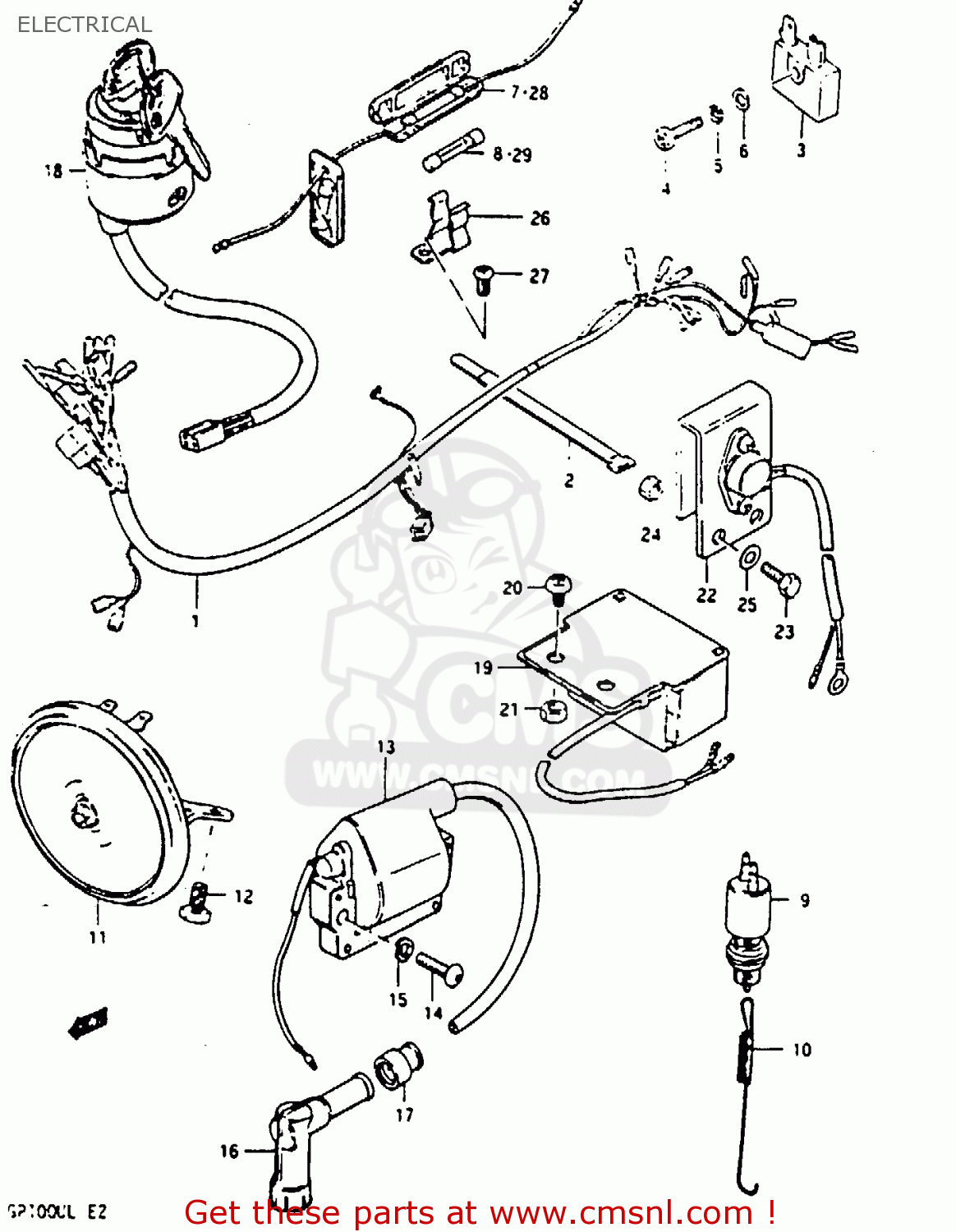

ELECTRICAL

ref

part #

description

quantity

1-1

3661039621
ref: 1-1
E2

WIRING HARNESS

€ 66.50

1-2

3661039201
ref: 1-2
E16

WIRING HARNESS

€ 0.00

2-1

0940709301
ref: 2-1

CLAMP

€ 6.00

2-2

0940718301
ref: 2-2

CLAMP

€ 6.00

2-3

0940711301
ref: 2-3

CLAMP L:110

€ 6.00

3

3280019063
ref: 3

RECTIFIER ASSEMBLY

€ 10.50

4

0912505043
ref: 4

SCREW(5X18)

€ 0.00

5

0832121057
ref: 5

LOCK WASHER

€ 2.00

6

0832221057
ref: 6

WASHER

€ 2.50

7

3674035012
ref: 7

CASE ASSY,FUSE

€ 11.00

8

0948110001
ref: 8

FUSE(10A)

€ 2.00

9

3761053011
ref: 9

SWITCH ASSY,BRAKE LAMP

€ 34.50

10

0944306016
ref: 10

SPRING

€ 2.50

11

3850039131
ref: 11

HORN ASSY

€ 48.00

12

0110706107
ref: 12

BOLT

€ 2.00

13-1

3341043010
ref: 13-1
GP100UX/UD E2

COIL ASSEMBLY,IGNITION

€ 89.50

13-2

3341043011
ref: 13-2
GP100UL E2

COIL ASSY,IGNITION

€ 89.50

13-3

3341043020
ref: 13-3
E16

COIL ASSEMBLY,IGNITION

€ 89.50

14

0211205208
ref: 14

SCREW 5X20

€ 3.00

15

0832221057
ref: 15

WASHER

€ 2.50

16

3351039110
ref: 16

CAP,SPARK PLUG

€ 61.50

17

3354238800
ref: 17

SEAL, HIGHTENSION CORD

€ 0.00

18-1

3711028657
ref: 18-1
E2

SWITCH ASSY,IGNITION

€ 86.50

18-2

3711025319
ref: 18-2
E16

SWITCH ASSY,IGNITION

€ 60.00

19

3651048600
ref: 19

RESISTOR ASSY

€ 23.00

20

0211206087
ref: 20

SCREW

€ 2.00

21

0831011067
ref: 21

NUT 6MM

€ 2.50

22

3250027600
ref: 22
E16

REGULATOR ASSEMBLY

€ 176.50

23

0110706127
ref: 23

BOLT

€ 2.00

24

0831011067
ref: 24

NUT 6MM

€ 2.50

25

0832221067
ref: 25
E16

WASHER

€ 2.00

26

3679125001
ref: 26
E16

HOLDER,FUSE CASE

€ 3.50

27

0211206068
ref: 27

SCREW,6X6

€ 2.00

28

3674030501
ref: 28
E16

FUSE CASE, REGULATOR

€ 0.00

29

0948105001
ref: 29
E16

FUSE(5A)

€ 1.50
