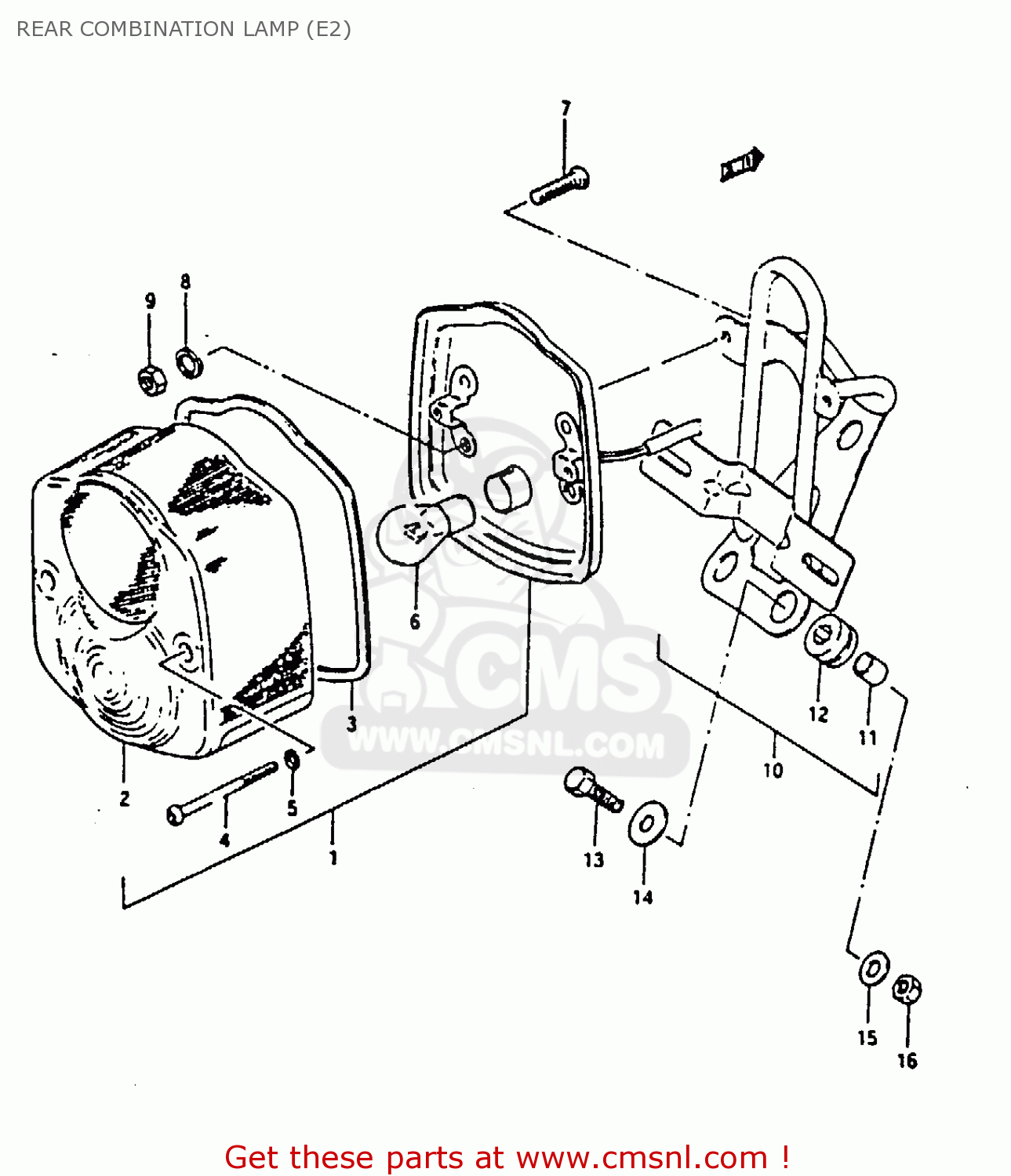

REAR COMBINATION LAMP (E2)

ref

part #

description

quantity

1-1

3572039183
ref: 1-1
~F.NO. 106220

LAMP UNIT, TAIL

€ 81.50

1-2

3572039184
ref: 1-2
F. NO. 106221-107350

LAMP UNIT, TAIL

€ 81.50

1-3

3572039270
ref: 1-3
F. NO. 107351~

LAMP UNIT, TAIL

€ 70.00

2-1

3571246623
ref: 2-1
~F. NO. 106220

LENS,RR COMBI

€ 39.00

2-2

3571202262
ref: 2-2
F. NO. 106221~107350

LENS

€ 39.00

2-3

3571239270
ref: 2-3
F.NO. 107351~

LENS

€ 39.00

3

3571346620
ref: 3

GASKET (NAS)

€ 8.00

4

3562335110
ref: 4

SCREW

€ 3.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6-1

0947106042
ref: 6-1
~F.NO. 107350

BULB (6V,21/5W)

€ 12.50

6-2

0947106034
ref: 6-2
F.NO. 107351~

BULB (6V,21/5W)

€ 0.00

7

0211205107
ref: 7

SCREW

€ 2.00

8

0832121057
ref: 8

LOCK WASHER

€ 2.00

9

0831011058
ref: 9

NUT

€ 2.50

10

3573039191
ref: 10

BRACKET ASSY

€ 75.50

11

3576635300
ref: 11

SPACER,RR COMBINATION

€ 2.00

12

3576535300
ref: 12

CUSHION,RR COMBINATION

€ 3.00

13

0110706257
ref: 13

BOLT

€ 2.00

14

0916006027
ref: 14

WASHER (6.5X20X1.2)

€ 2.00

15

0832221067
ref: 15

WASHER

€ 2.00

16

0831011067
ref: 16

NUT 6MM

€ 2.50

all assemblies
