CRANKCASE

GP100U 1983 (D) UNITED KINGDOM (E02)

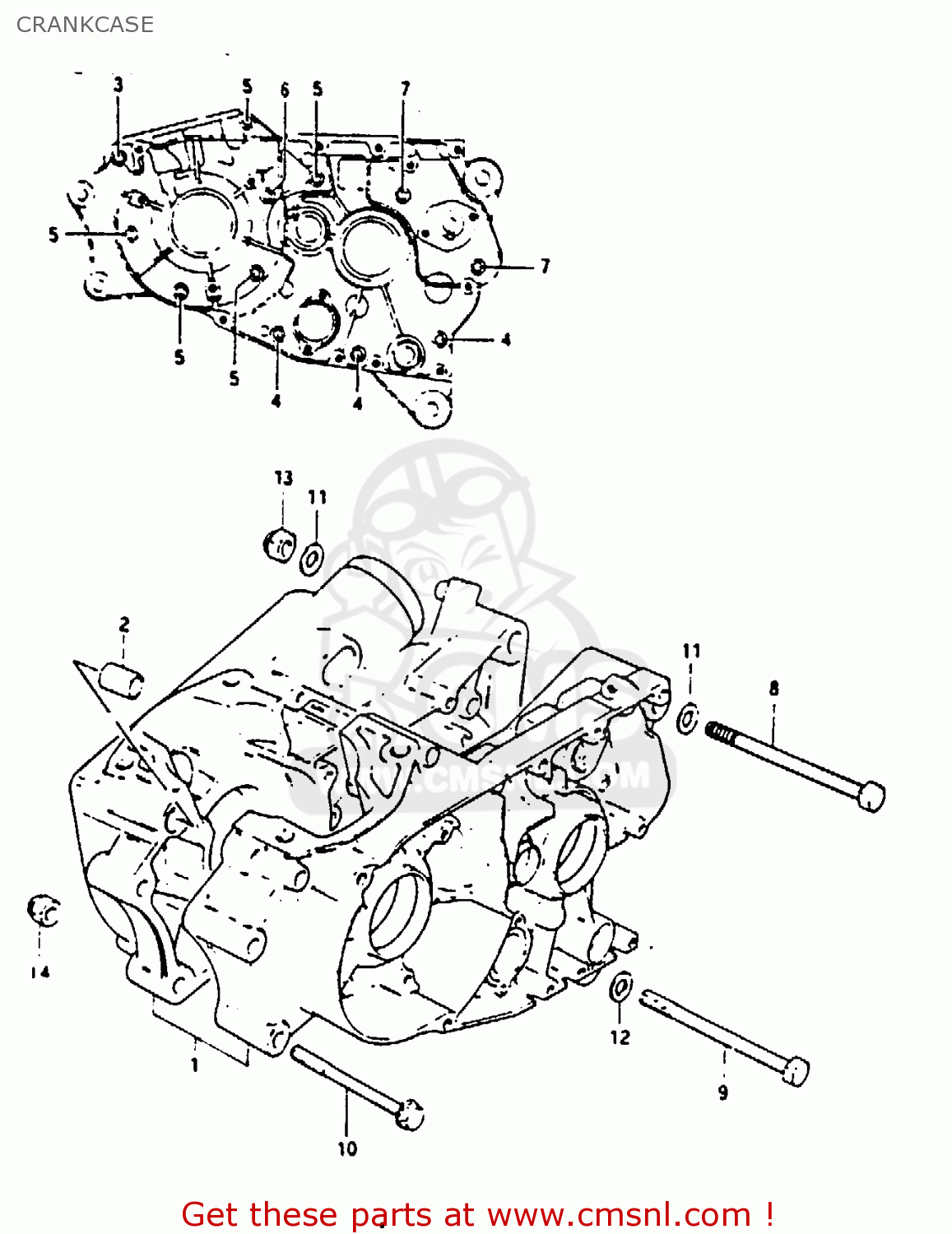

Crankcase diagram GP100U 1983 (D) UNITED KINGDOM (E02)

CRANKCASE GP100U 1983 (D) UNITED KINGDOM (E02)
CRANKCASE GP100U 1983 (D) UNITED KINGDOM (E02)
CRANKCASE GP100U 1983 (D) UNITED KINGDOM (E02)
prices are in EUR
ref
part #
description
quantity
1
1130039834
ref: 1
CRANKCASE SET
1130039834
€ 436.00
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0211206708
ref: 3
SCREW 6X70
0211206708
€ 3.00
4
0211206658
ref: 4
SCREW 6X65
0211206658
€ 2.00
5
0211206558
ref: 5
SCREW
0211206558
€ 2.50
6
0211206508
ref: 6
SCREW
0211206508
€ 2.50
7
0211206357
ref: 7
SCREW
0211206357
€ 2.50
8
0910010099
ref: 8
BOLT 10X120
0910010099
€ 3.50
9
0910010116
ref: 9
BOLT 10X115
0910010116
€ 3.50
10
0151708908
ref: 10
BOLT 8X90
€ 3.50
11
0832211107
ref: 11
WASHER
0832211107
€ 2.50
12
0916010005
ref: 12
WASHER(10.5X20X3.2)
0916010005
€ 2.00
13
0831931107
ref: 13
NUT
0831931107
€ 3.00
14
0831931087
ref: 14
NUT
0831931087
€ 2.50
