FRAME COVER (GP100UL E2)

GP100U 1983 (D) UNITED KINGDOM (E02)

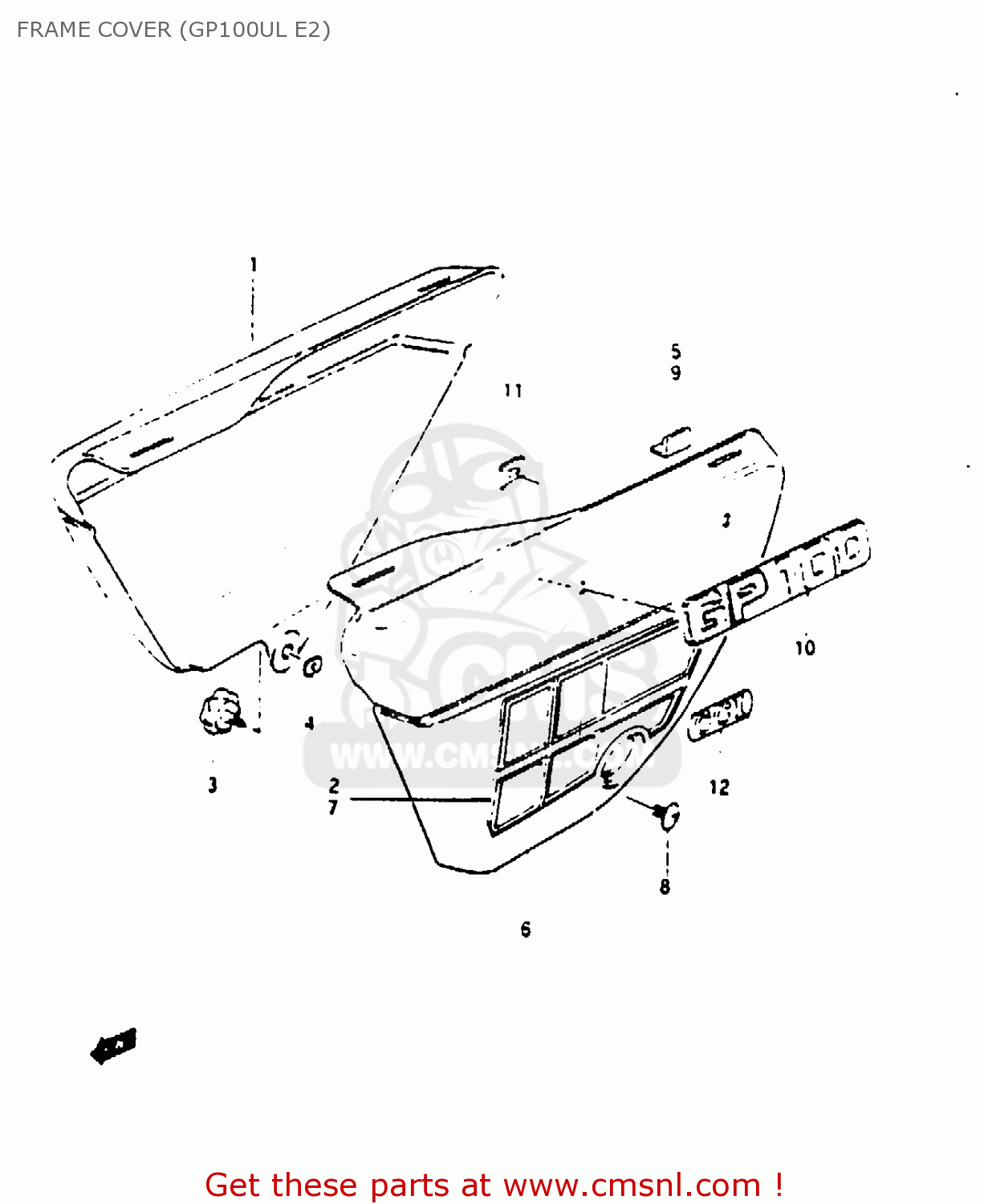

Frame cover (gp100ul e2) diagram GP100U 1983 (D) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

1-1

47111391000NH
ref: 1-1

COVER, FRAME RH (RED)

€ 73.00

1-2

47111391000NG
ref: 1-2

COVER,FRAME,R(BLUE)

€ 51.00

2-1

6813039280D54
ref: 2-1
FOR 0NH

TAPE SET, FRAME COVER RH

€ 24.50

2-2

6813039280D55
ref: 2-2
FOR 0NG

TAPE SET, FRAME COVER RH

€ 24.50

4713033101
ref: 3

KNOB,FRAME COVER,R

€ 7.50

0915206002
ref: 4

NUT

€ 2.00

4711745000
ref: 5

CUSHION,FRAME COVER

€ 1.50

6-1

47211391000NH
ref: 6-1

COVER, FRAME LH (RED)

€ 44.50

6-2

47211391000NG
ref: 6-2

COVER, FRAME LH (BLUE)

€ 52.00

7-1

6814039280D54
ref: 7-1
FOR 0NH

TAPE SET, FRAME COVER LH

€ 21.00

7-2

6814039280D55
ref: 7-2
FOR 0NG

TAPE SET, FRAME COVER LH

€ 0.00

0214206167
ref: 8

SCREW

€ 2.00

4711745000
ref: 9

CUSHION,FRAME COVER

€ 1.50

6814139220
ref: 10

EMBLEM

€ 28.00

0914803003
ref: 11

NUT

€ 2.00

6817126000
ref: 12

EMBLEM,CCIS

€ 4.00
