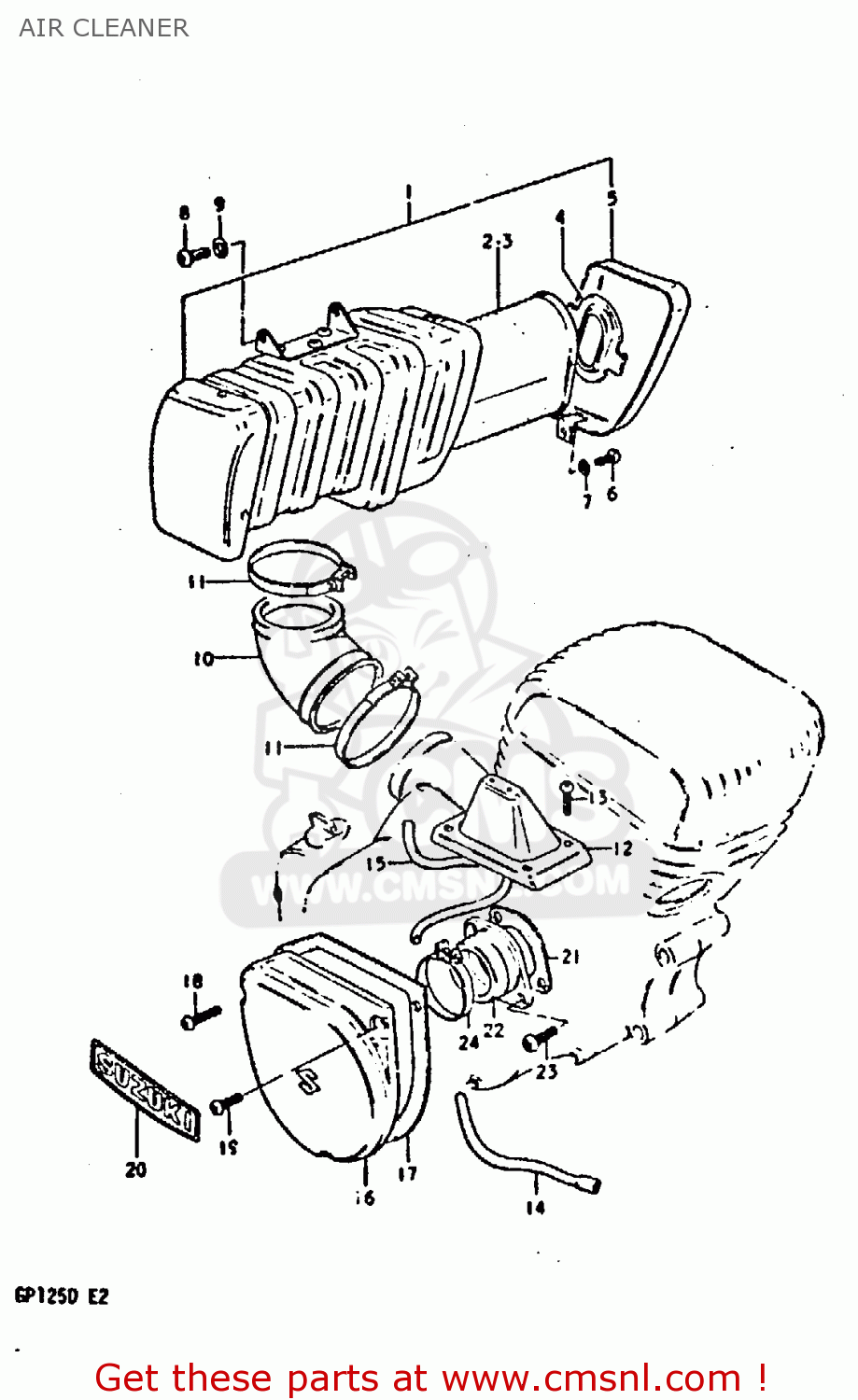

AIR CLEANER

ref

part #

description

quantity

1-1

1370039110
ref: 1-1

CLEANER ASSY, AIR

€ 127.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

1378039110
ref: 2

FILTER ASSY,AIR CLEANER

€ 39.00

3

1378139110
ref: 3

FILTER

€ 17.50

4

1378539110
ref: 4

HOLDER

€ 3.50

5

1377239110
ref: 5

COVER

€ 19.00

6

0110405108
ref: 6

BOLT

€ 1.50

7

0832121058
ref: 7

LOCK WASHER

€ 2.00

8

0211206128
ref: 8

SCREW 6X12

€ 2.00

9

0832221068
ref: 9

WASHER

€ 2.00

10

1388139100
ref: 10

HOSE,CARBURETOR AIR INLET

€ 13.00

11

0940262306
ref: 11

CLAMP

€ 6.00

12

1144039101
ref: 12

CAP,CARBURETOR TOP

€ 22.50

13

0211205168
ref: 13

SCREW

€ 2.50

14

1368035000
ref: 14

HOSE,CARBURETOR AIR VENT

€ 7.00

15

0934403019
ref: 15

HOSE

€ 6.50

16

1138339110
ref: 16

CAP, CARB. INSPECTION

€ 27.50

17

1149239101
ref: 17

GASKET,CARB INSPECTION CAP (NAS)

€ 7.00

18

0211205208
ref: 18

SCREW 5X20

€ 3.00

19

0211205168
ref: 19

SCREW

€ 2.50

20

6823439110
ref: 20

EMBLEM,CARB INSPECTION CAP

€ 8.00

21

1312539100
ref: 21

GASKET,CARBURETOR (NAS)

€ 2.50

22

1311039101
ref: 22

PIPE,INTAKE

€ 14.50

23

0211206168
ref: 23

SCREW

€ 2.50

24

0940238303
ref: 24

CLAMP

€ 3.00
