REAR COMBINATION LAMP

GP125 1981 (X) (E02 E04 E17 E18 E21 E22 E41)

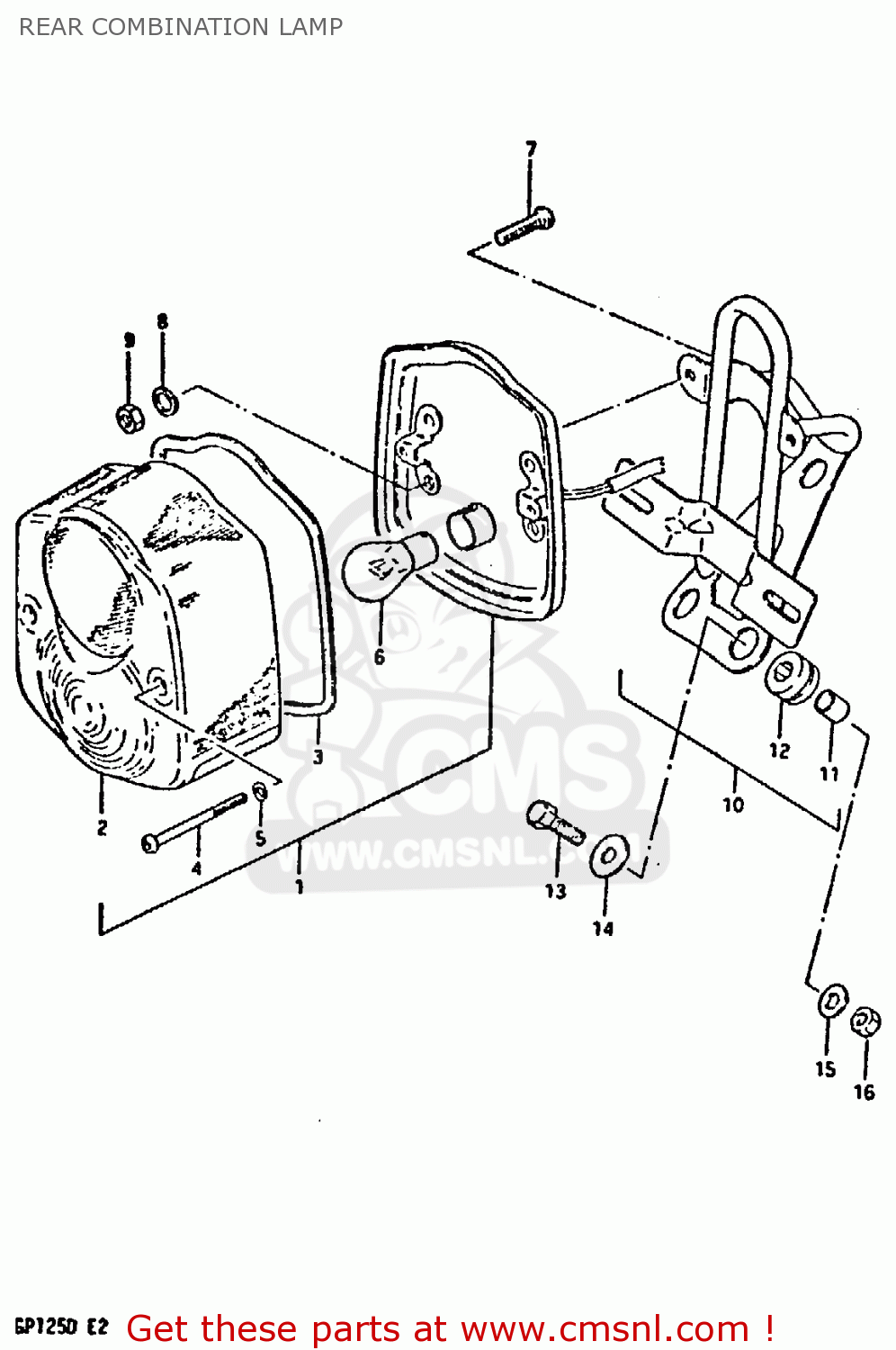

Rear combination lamp diagram GP125 1981 (X) (E02 E04 E17 E18 E21 E22 E41)

prices are in EUR

ref

part #

description

quantity

3572039183
ref: 1
FROM 35720-39182

LAMP UNIT, TAIL

€ 81.50

3571246623
ref: 2
FROM 35712-46622

LENS,RR COMBI

€ 39.00

3571346620
ref: 3

GASKET (NAS)

€ 8.00

3562335110
ref: 4

SCREW

€ 3.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

0947106034
ref: 6
EXECUTED LOCALLY

BULB (6V,21/5W)

€ 0.00

0211205108
ref: 7

SCREW

€ 2.00

0832121058
ref: 8

LOCK WASHER

€ 2.00

0831011058
ref: 9

NUT

€ 2.50

3573039191
ref: 10

BRACKET ASSY

€ 75.50

3576635300
ref: 11

SPACER,RR COMBINATION

€ 2.00

3576535300
ref: 12

CUSHION,RR COMBINATION

€ 3.00

0110706258
ref: 13

BOLT

€ 2.00

0916006027
ref: 14

WASHER (6.5X20X1.2)

€ 2.00

0832121068
ref: 15

LOCK WASHER

€ 2.50

0831011068
ref: 16

NUT

€ 2.50

REAR COMBINATION LAMP

all assemblies
