BATTERY

GP125 1983 (D) (E02 E04 E17 E18 E21 E22 E41)

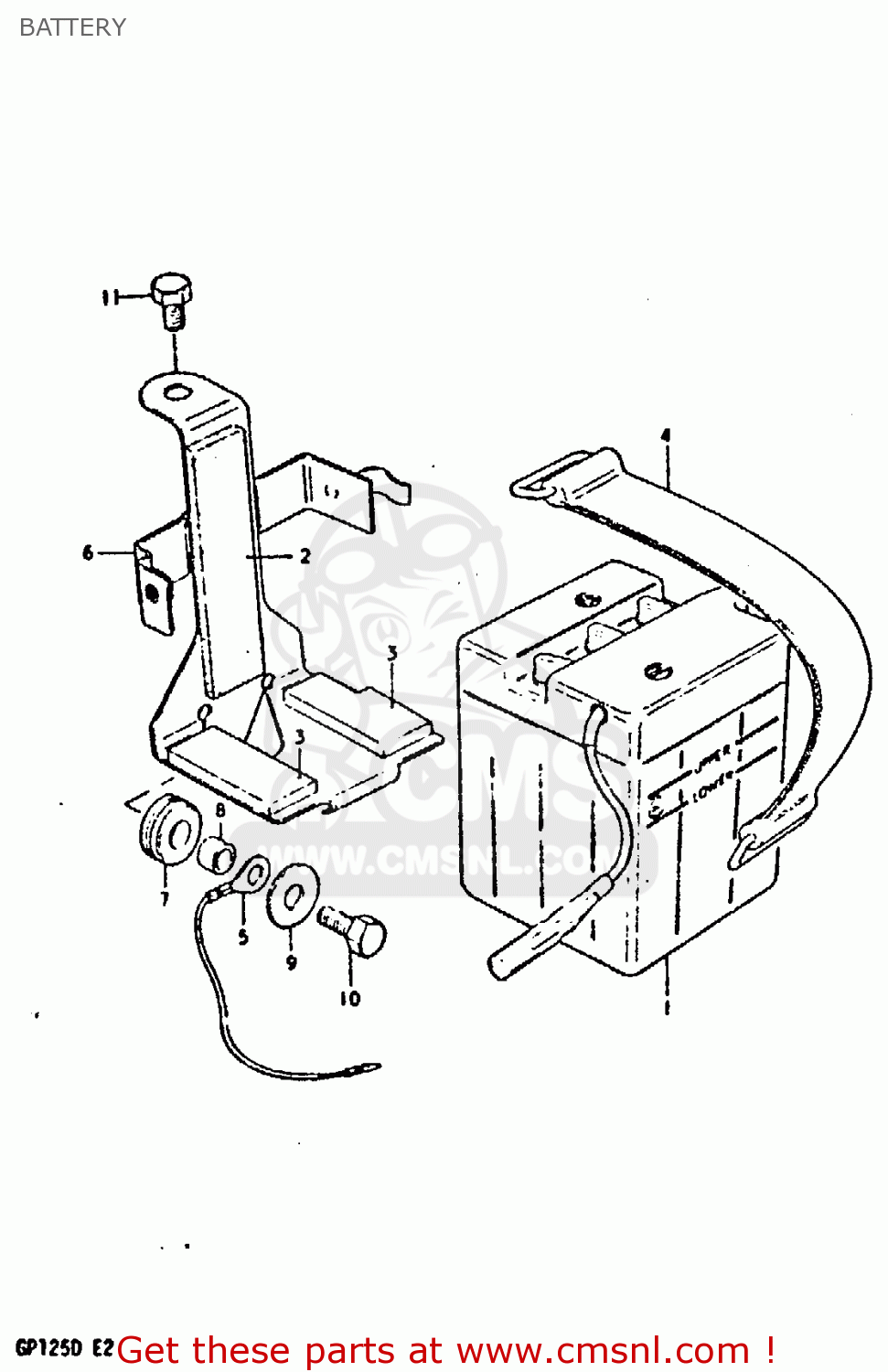

Battery diagram GP125 1983 (D) (E02 E04 E17 E18 E21 E22 E41)

prices are in EUR

ref

part #

description

quantity

3361003010
ref: 1

BATTERY ASSY(6N4-2A4.2AH)

€ 42.00

3365229100
ref: 2
TO33651-37000CUT AS

PROTECTOR,20X9

€ 5.00

3365208410
ref: 3
TO 33651-37000CUT AS

PROTECTOR,BATTERY

€ 5.00

0946200007
ref: 4

BAND

€ 5.00

3686227690
ref: 5

LEAD WIRE

€ 9.00

4154039101
ref: 6

HOLDER,BATTERY

€ 9.00

0932008007
ref: 7

CUSHION

€ 4.00

0918006038
ref: 8

SPACER(6.1X9X7.5)

€ 2.00

0916006020
ref: 9

WASHER

€ 2.00

0110706168
ref: 10

BOLT, UPPER

€ 3.00

0110706108
ref: 11

BOLT

€ 2.00

all assemblies
