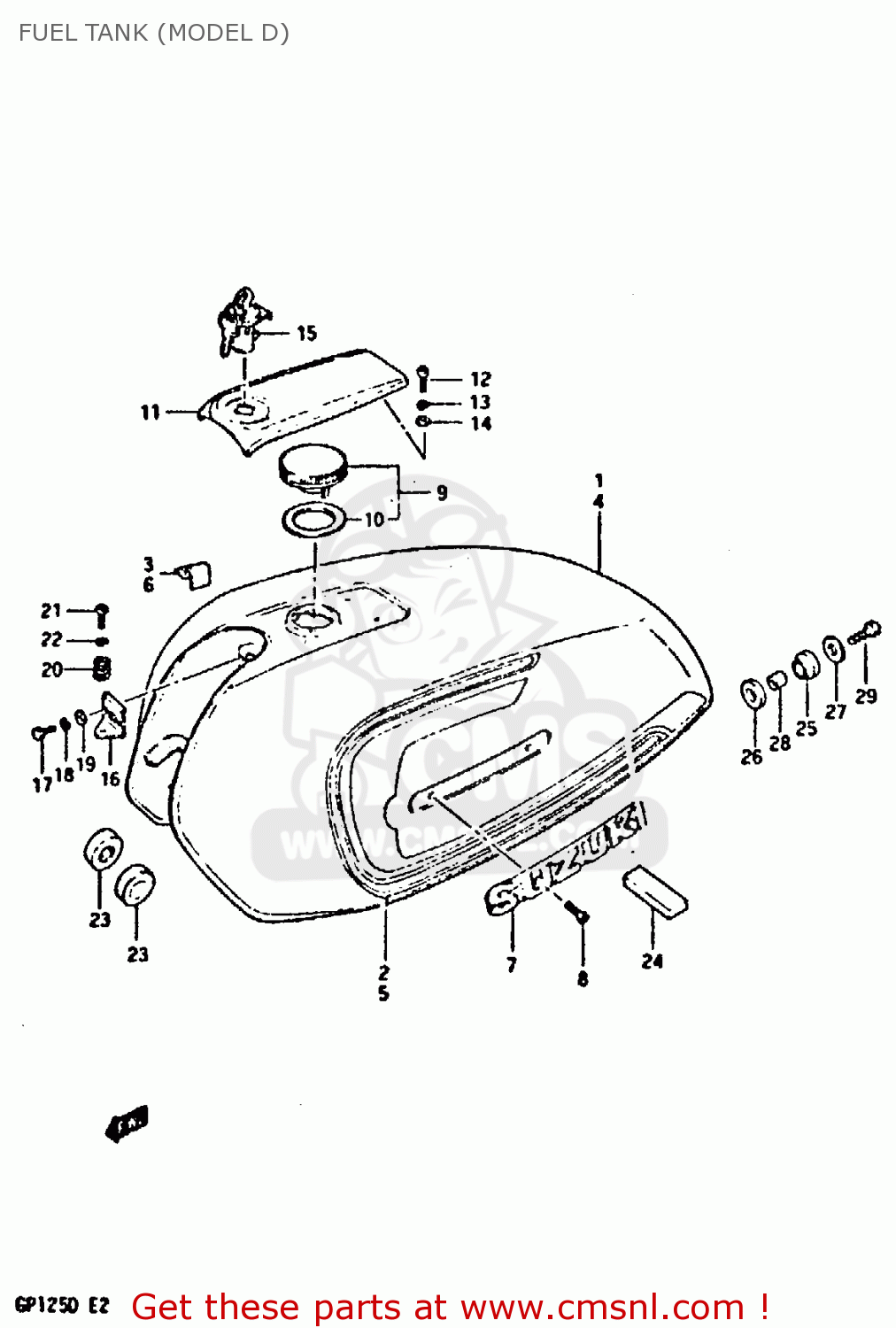

FUEL TANK (MODEL D)

ref

part #

description

quantity

1-1

441003919000J
ref: 1-1

TANK, FUEL (RED)

€ 280.00

1-2

441003919005H
ref: 1-2

TANK, FUEL (BLUE)

€ 280.00

2

681103919073J
ref: 2

TAPE SET

€ 0.00

3

4427637001
ref: 3

CUSHION,FUEL TANK FR COVER

€ 4.00

4

4410039190019
ref: 4

TANK, FUEL (BLACK)

€ 280.00

5

681103919076Y
ref: 5

TAPE SET

€ 0.00

6

4427637001
ref: 6

CUSHION,FUEL TANK FR COVER

€ 4.00

7

6811139100
ref: 7

EMBLEM

€ 19.50

8

0213203065
ref: 8

SCREW 3X6

€ 2.00

9

4420023810
ref: 9

CAP ASSY,FUEL TANK FILLER

€ 60.50

10

8541370000
ref: 10

GASKET (NAS)

€ 4.50

11

4427045003
ref: 11

COVER,FUEL TANK FR

€ 34.50

12

0110405108
ref: 12

BOLT

€ 1.50

13

0832121058
ref: 13

LOCK WASHER

€ 2.00

14

0832221058
ref: 14

WASHER

€ 2.50

15

4428037010
ref: 15

LOCK,FUEL TANK FR COVER

€ 36.50

16

4429037001
ref: 16

HOLDER,FUEL TANK FRONT COVER

€ 11.50

17

0110405108
ref: 17

BOLT

€ 1.50

18

0832121058
ref: 18

LOCK WASHER

€ 2.00

19

0832221058
ref: 19

WASHER

€ 2.50

20

0944617001
ref: 20

SPRING

€ 8.00

21

0211205108
ref: 21

SCREW

€ 2.00

22

0832121058
ref: 22

LOCK WASHER

€ 2.00

23

0932910007
ref: 23

CUSHION

€ 3.00

24

0932901005
ref: 24

CUSHION

€ 11.50

25

0932012013
ref: 25

CUSHION

€ 3.00

26

0932012017
ref: 26

CUSHION

€ 2.50

27

0916008002
ref: 27

WASHER (8.5X29X1.6)

€ 2.00

28

0918008032
ref: 28

SPACER (8.2X12X17)

€ 5.00

29

0110708308
ref: 29

BOLT (8X30)

€ 2.50
