FRAME

GS1000 1978 (C) USA (E03)

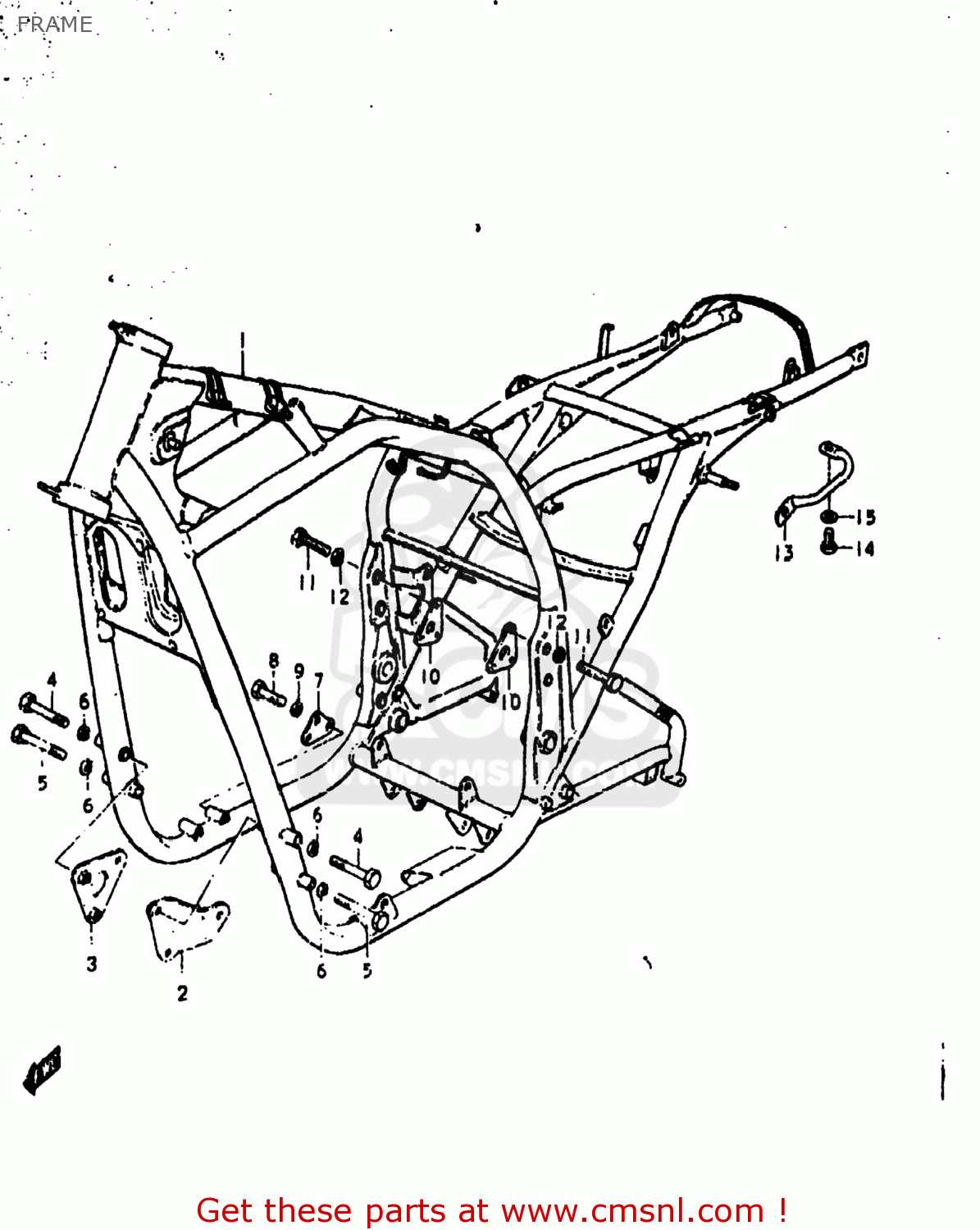

Frame diagram GS1000 1978 (C) USA (E03)

FRAME GS1000 1978 (C) USA (E03)

FRAME GS1000 1978 (C) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4110049000019
ref: 1

FRAME

€ 0.00

2

4199049000019
ref: 2

PLATE,ENGINE MOUNTING

€ 18.50

3

4191049000019
ref: 3

PLATE,ENGINE MOUNTING

€ 14.50

4

0110708658
ref: 4
01500-0865B

BOLT

€ 3.00

5

0110708708
ref: 5
01500-0870B

BOLT

€ 2.50

6

0832121088
ref: 6
08321-01087

LOCK WASHER

€ 2.00

7

4192149000019
ref: 7
41921-49000-13L

PLATE,ENGINE MOUNTING

€ 30.00

8

0110708168
ref: 8
01500-0816B

BOLT

€ 2.00

9

0832121088
ref: 9
08321-01087

LOCK WASHER

€ 2.00

10

4194049000019
ref: 10
41940-49000-13L

PLATE,ENGINE MOUNTING

€ 60.00

11

0110708358
ref: 11
01500-0835B

BOLT

€ 3.50

12

0832121088
ref: 12
08321-01087

LOCK WASHER

€ 2.00

13

4161049000
ref: 13
41610-34200

GRIP,FRAME

€ 38.50

14

0110708168
ref: 14
01500-0816B

BOLT

€ 2.00

15

0832221088
ref: 15
08322-01087

WASHER

€ 2.00
