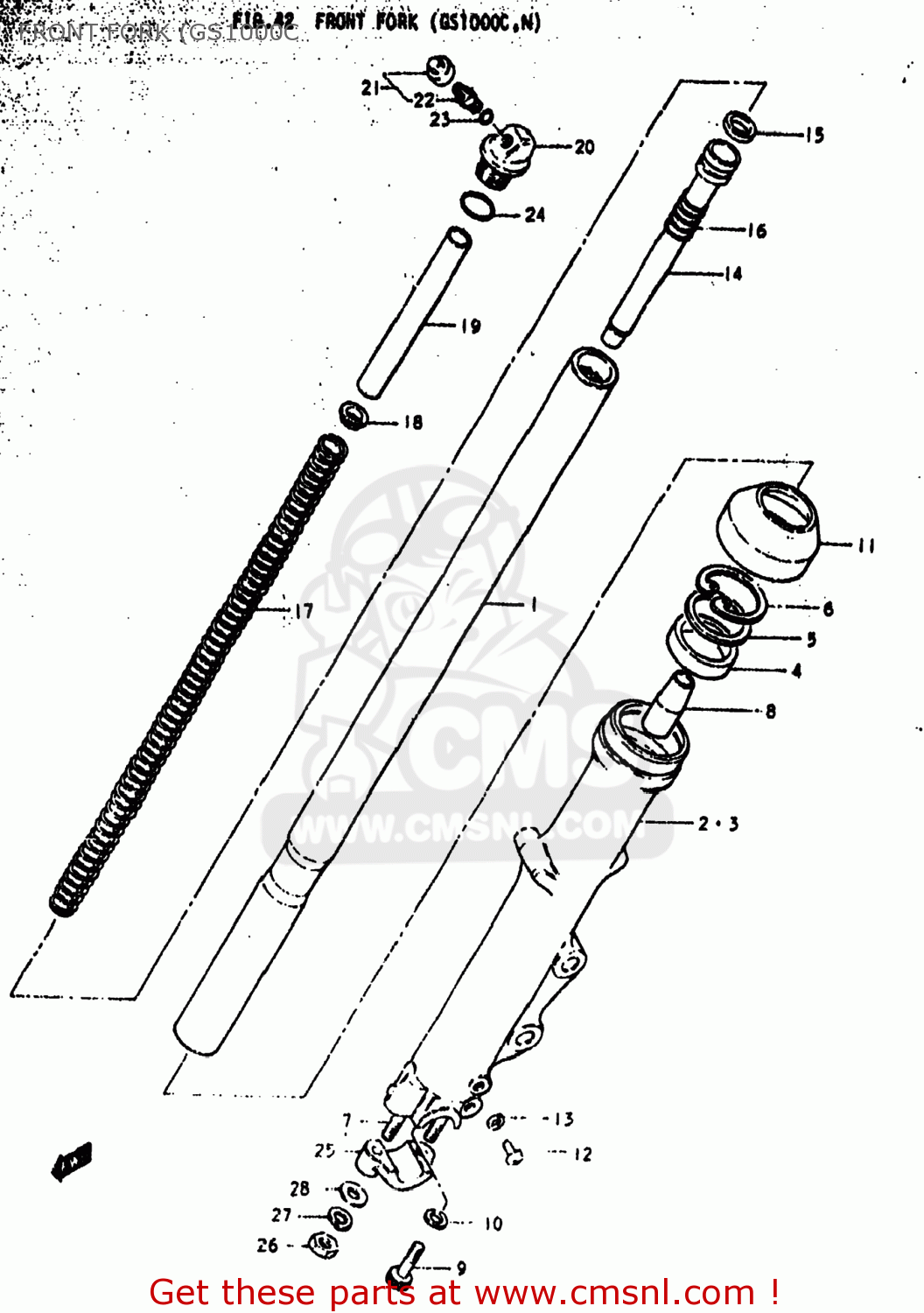

FRONT FORK (GS1000C

ref

part #

description

quantity

0-1

5110049820
ref: 0-1
51103-49010

DAMPER SET

€ 223.50

0-2

5110349010
ref: 0-2

DAMPER ASSEMBLY,RIGHT

€ 223.50

0-3

5110449010
ref: 0-3
51104-49011

DAMPER ASSEMBLY,LEFT

€ 223.50

1-1

5111049000
ref: 1-1
51110-49001

TUBE,FORK,INNER

€ 350.50

1-2

5111049001
ref: 1-2

TUBE,FORK,INNER

€ 350.50

2

5113049010
ref: 2
51130-49011

TUBE,FORK,OUTER,RIGHT

€ 55.50

3

5114049010
ref: 3
51140-49011

TUBE,OUTER,LEFT

€ 111.00

4

5115349000
ref: 4
51153-08C20

OIL SEAL,FRONT FORK

€ 16.50

5

5115849000
ref: 5

WASHER. FRONT FORK

€ 7.00

6

5115649000
ref: 6

CIRCLIP,FORK OIL SEAL

€ 2.00

7

0142108308
ref: 7
09108-08142

STUD BOLT

€ 2.00

8

5119538010
ref: 8

PIECE,OIL LOCK

€ 16.00

9

5114716510
ref: 9

BOLT,FORK CYLINDER(10X25)

€ 3.50

10

5114841310
ref: 10

GASKET (NAS)

€ 2.50

11

5117349001
ref: 11
51173-49002

SEAL,DUST

€ 13.00

12

0211104087
ref: 12
02112-04087

SCREW

€ 1.50

13

5118303010
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 3.00

14

5114649000
ref: 14

CYLINDER,FRONT FORK

€ 78.00

15

5119649000
ref: 15

RING,PISTON

€ 9.00

16

5117749000
ref: 16

SPRING,REBOUND

€ 7.50

17

5117149000
ref: 17

SPRING,FRONT FORK

€ 42.00

18

5117238010
ref: 18

GUIDE,FRONT FORK SPRING C

€ 9.50

19

5117649000
ref: 19

SPACER,FRONT FORK SPRING

€ 3.50

20

5135141211
ref: 20

CAP

€ 41.00

21

5116949001
ref: 21
51293-49001

VALVE & CAP ASSY

€ 18.00

22

5116941211
ref: 22
51293-49001

VALVE

€ 18.00

23

5111741211
ref: 23

O RING

€ 6.50

24

5111716310
ref: 24

O RING

€ 4.50

25

5113249000
ref: 25

HOLDER,AXLE

€ 30.00

26

0914008005
ref: 26
09140-08017

NUT (8MM)

€ 1.50

27

0832121088
ref: 27
08321-01087

LOCK WASHER

€ 2.00

28

0832221088
ref: 28
08322-01087

WASHER

€ 2.00

all assemblies
