CRANKCASE RH COVER

GS1000EC 1978 (C) USA (E03)

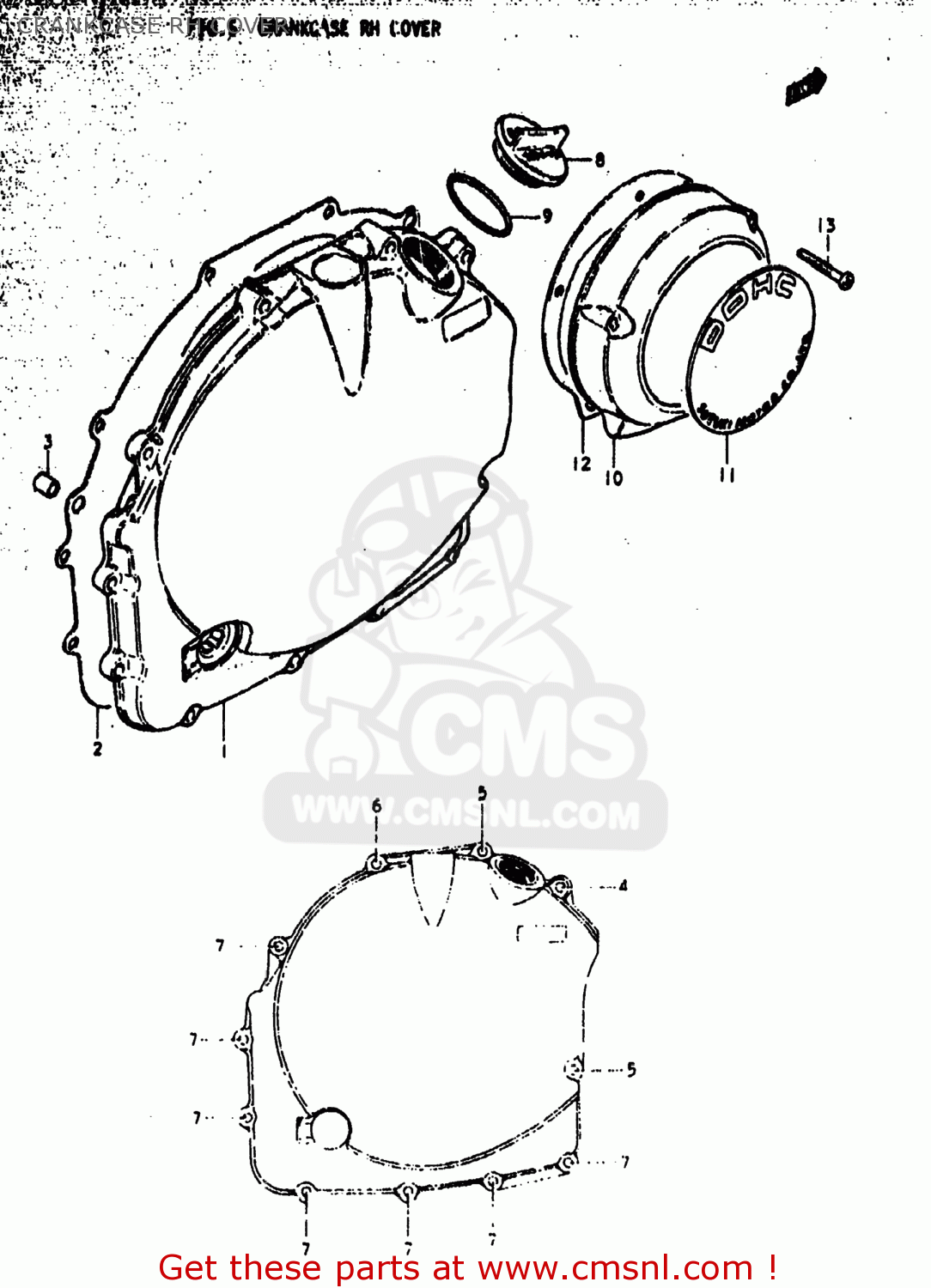

Crankcase rh cover diagram GS1000EC 1978 (C) USA (E03)

CRANKCASE RH COVER GS1000EC 1978 (C) USA (E03)

CRANKCASE RH COVER GS1000EC 1978 (C) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1134049000
ref: 1

COVER,CLUTCH

€ 85.50

2

1148249000
ref: 2
11482-49000-H17

GASKET,CLUTCH COVER (MCA)

€ 28.00

3

0421109129
ref: 3

PIN

€ 2.00

4

0211206358
ref: 4
02112-06357

SCREW (6X35)

€ 2.50

5

0211206358
ref: 5
02112-06357

SCREW (6X35)

€ 2.50

6

0211206258
ref: 6
02112-06257

SCREW

€ 2.00

7

0211206208
ref: 7
02112-06207

SCREW

€ 2.00

8

0925930001
ref: 8
09200-30810

CAP

€ 8.50

9

0928032005
ref: 9

O RING(D:2.2,ID:32)

€ 2.00

10

1138149000
ref: 10
11381-49002

COVER,CONTACT BREAKER

€ 57.00

11-1

6823545000
ref: 11-1
68235-45200

EMBLEM

€ 25.00

11-2

6823545100
ref: 11-2
68235-45200

EMBLEM

€ 25.00

12

1149145000
ref: 12

GASKET,CONTACT BREAKER COVER (NAS)

€ 5.50

13

0211205308
ref: 13
02112-0530A

SCREW

€ 1.50
