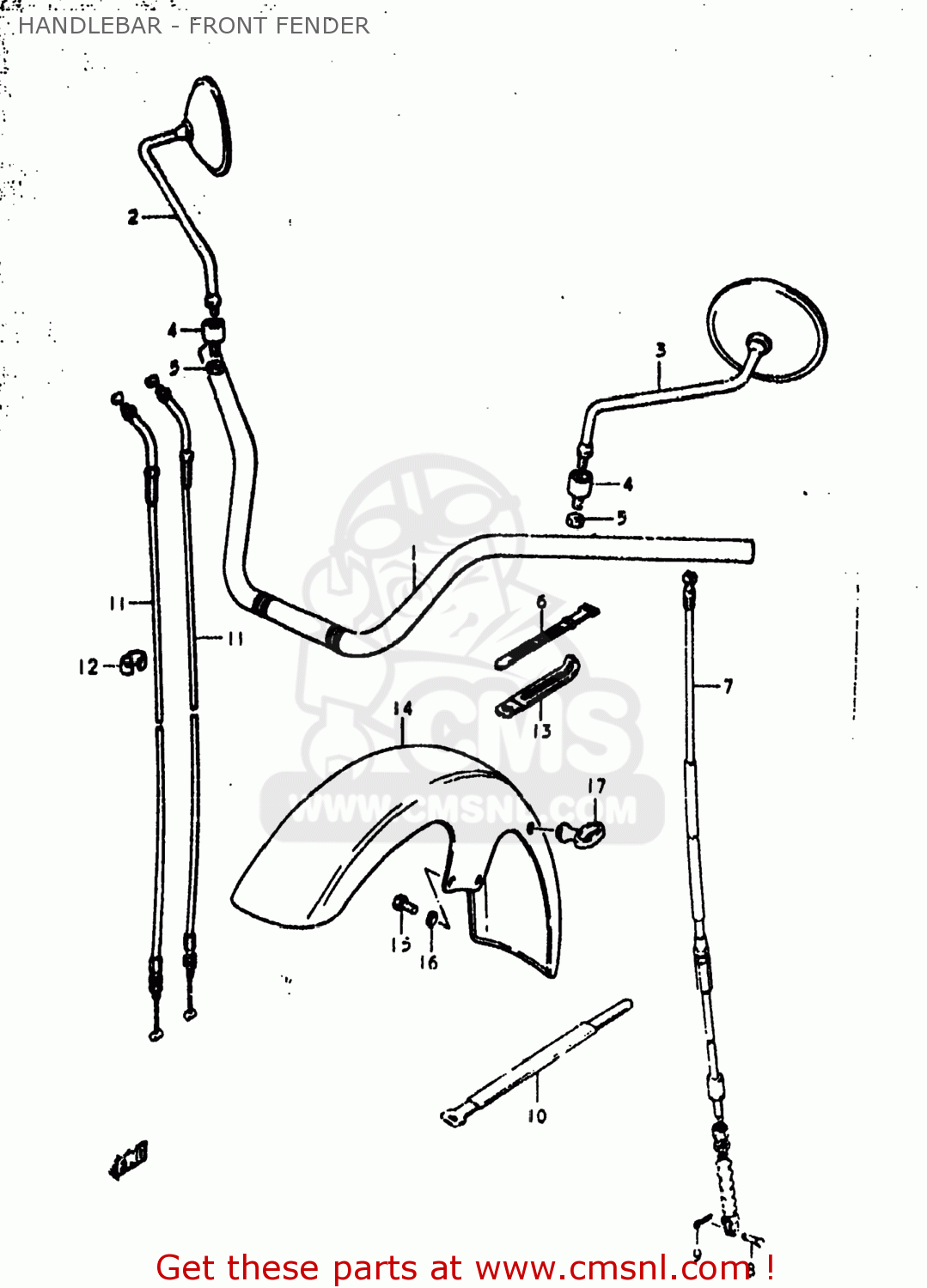

HANDLEBAR - FRONT FENDER - GS1000EC 1978 (C) USA (E03)

ref

part #

description

quantity

1

5611149000
ref: 1
56110-45400

HANDLEBAR

€ 81.50

2

5650045012
ref: 2
56500-45013

MIRROR ASSEMBLY,RIGHT

€ 72.50

3

5660045012
ref: 3
56600-45013

MIRROR ASSEMBLY,LEFT

€ 73.00

4

5670031001
ref: 4
56700-45400

CUSHION,REAR VIEW MIRROR

€ 18.00

5

0831022108
ref: 5
08310-00107

NUT

€ 2.50

6

0940712402
ref: 6

CLAMP(L:120)

€ 3.00

7-1

5820049000
ref: 7-1
58200-49001

CABLE ASSEMBLY,CLUTCH

€ 49.50

7-2

5820049001
ref: 7-2

CABLE ASSY,CLUTCH

€ 49.50

8

0920006011
ref: 8

PIN(L:15)

€ 2.50

9

0411120158
ref: 9
04111-2015A

PIN

€ 1.50

10

0940718301
ref: 10

CLAMP

€ 6.00

11

5830045610
ref: 11

CABLE ASSY,THROTTLE

€ 40.00

12

0940800002
ref: 12

CLIP

€ 2.00

13

0940406403
ref: 13
09404-06432

CLAMP

€ 2.50

14-1

5311049001
ref: 14-1
53110-49011

FENDER,FRONT

€ 367.50

14-2

5311049011
ref: 14-2

FENDER,FR

€ 367.50

15

0110708168
ref: 15
01500-0816B

BOLT

€ 2.00

16

0832121088
ref: 16
08321-01087

LOCK WASHER

€ 2.00

17

5862121203
ref: 17
58621-21204

GUIDE,CABLE

€ 7.50
