CAM SHAFT - VALVE
GS1000EC 1979 (N) USA (E03)

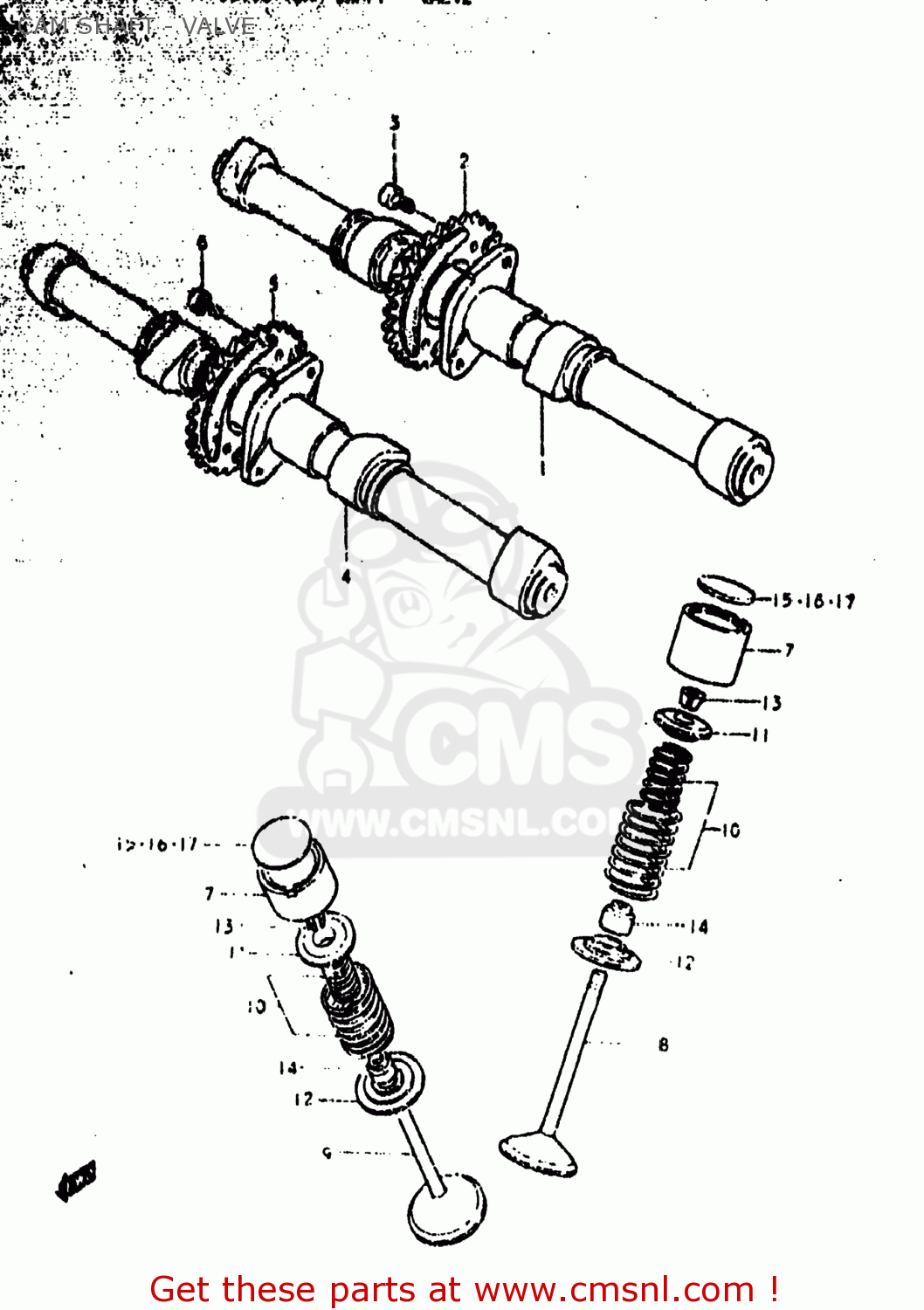

Cam shaft - valve diagram GS1000EC 1979 (N) USA (E03)
CAM SHAFT - VALVE GS1000EC 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271149000
ref: 1
12711-49001
CAMSHAFT
€ 236.00
2
1274049050
ref: 2
12741-49001
SPROCKET,CAMSHAFT
€ 47.50
3
0910606024
ref: 3
07130-0610B
BOLT 6X11
€ 2.50
4
1272149000
ref: 4
12721-49001
CAMSHAFT,EXHAUST
€ 287.00
5
1272049050
ref: 5
SPROCKET, EXHAUST CAM SHAFT C&EC,N&EN; NT:30
€ 0.00
6
0910606024
ref: 6
07130-0610B
BOLT 6X11
€ 2.50
7
1289145000
ref: 7
12891-45001
TAPPET
€ 45.00
8
1291149020
ref: 8
VALVE,INTAKE
€ 31.00
9
1291249020
ref: 9
VALVE,EXHAUST
€ 60.00
10
1290045810
ref: 10
12920-45011
SPRING SET,VALVE
€ 17.00
11
1931145000
ref: 11
RETAINER, SPRING C&EC,N&EN
€ 0.00
12
1293345001
ref: 12
SEAT,VALVE SPRING
€ 5.50
13
1290045820
ref: 13
12932-45010
SHIM,TAPPET
€ 2.50
14
0928907002
ref: 14
SEAL,OIL(7X14.4X9)
€ 3.00
15-1
1289245000
ref: 15-1
12892-45000-215
SHIM,TAPPET
€ 17.00
15-2
1289245001
ref: 15-2
12892-45000-220
SHIM,TAPPET
€ 16.50
15-3
1289245002
ref: 15-3
12892-45000-225
SHIM,TAPPET
€ 17.00
15-4
1289245003
ref: 15-4
12892-45000-230
SHIM,TAPPET
€ 16.00
15-5
1289245004
ref: 15-5
12892-45000-235
SHIM,TAPPET
€ 16.50
15-6
1289245005
ref: 15-6
12892-45000-240
SHIM,TAPPET
€ 17.00
15-7
1289245006
ref: 15-7
12892-45000-245
SHIM,TAPPET
€ 17.00
15-8
1289245007
ref: 15-8
12892-45000-250
SHIM,TAPPET
€ 16.00
15-9
1289245008
ref: 15-9
12892-45000-255
SHIM,TAPPET
€ 16.50
16-1
1289245009
ref: 16-1
12892-45000-260
SHIM,TAPPET
€ 16.00
16-2
1289245010
ref: 16-2
12892-45000-265
SHIM,TAPPET
€ 17.00
16-3
1289245011
ref: 16-3
12892-45000-270
SHIM,TAPPET
€ 17.00
16-4
1289245017
ref: 16-4
12892-45000-300
SHIM,TAPPET
€ 17.00
16-5
1289245013
ref: 16-5
12892-45000-280
SHIM,TAPPET
€ 16.50
16-6
1289245014
ref: 16-6
12892-45000-285
SHIM,TAPPET
€ 17.00
16-7
1289245015
ref: 16-7
12892-45000-290
SHIM,TAPPET
€ 17.00
16-8
1289245016
ref: 16-8
12892-45000-295
SHIM,TAPPET
€ 17.00
16-9
1289245017
ref: 16-9
12892-45000-300
SHIM,TAPPET
€ 17.00
17-1
1289245018
ref: 17-1
12892-45000-305
SHIM,TAPPET
€ 16.50
17-2
1289245019
ref: 17-2
12892-45000-310
SHIM,TAPPET
€ 17.00
18
1280045810
ref: 18
12800-45811
SHIM SET,TAPPET
€ 1,227.00
19
9900069480
ref: 19
99000-69521
CASE
€ 152.50
