STEERING STEM (GS1000N
GS1000EC 1979 (N) USA (E03)

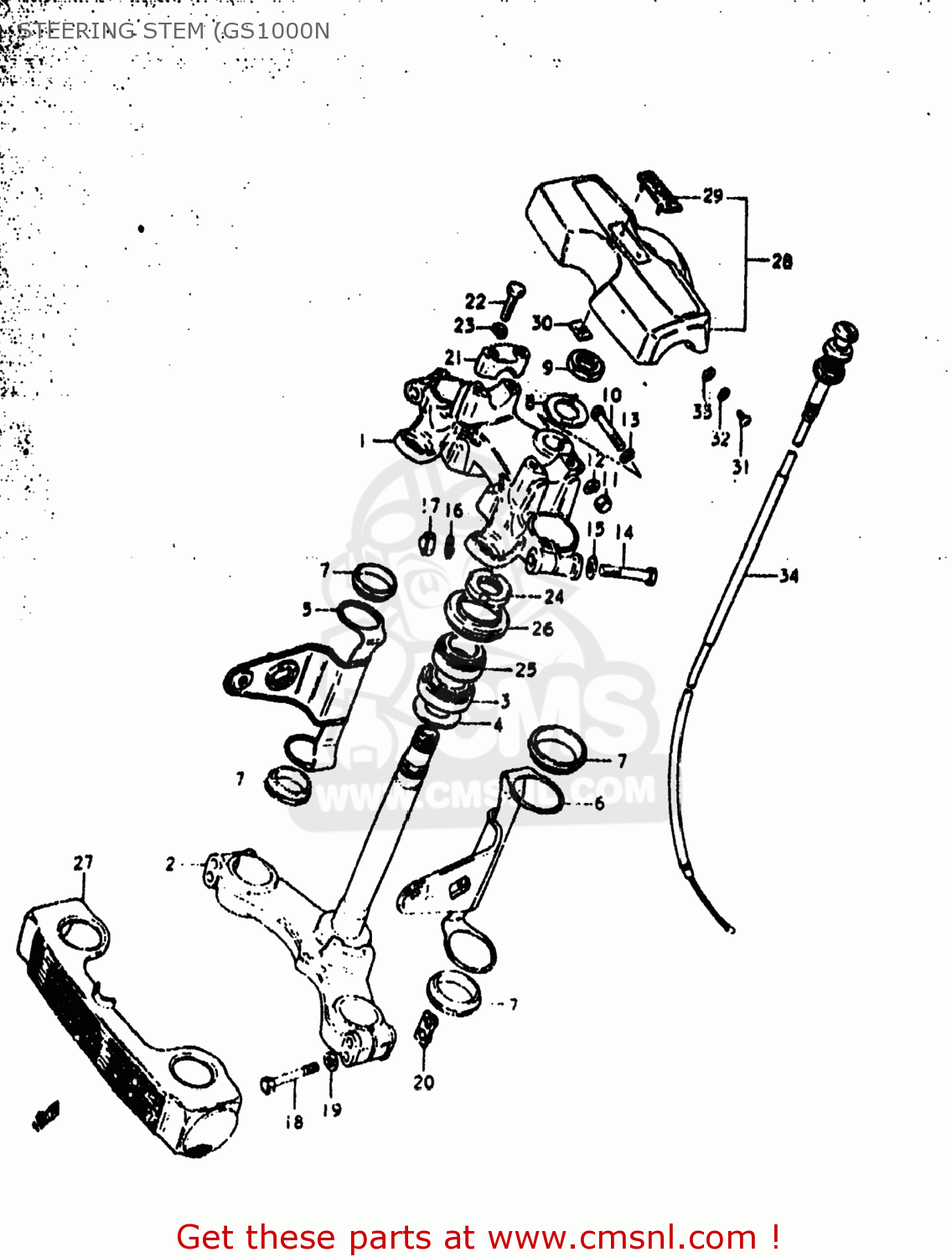

Steering stem (gs1000n diagram GS1000EC 1979 (N) USA (E03)
STEERING STEM (GS1000N GS1000EC 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5131149000291
ref: 1
HEAD,STEERING STEM
€ 157.00
2
5141049070
ref: 2
51410-49702
STEM,STEERING
€ 125.50
3
0926530005
ref: 3
09265-30009
BEARING
€ 49.50
4
0821130402
ref: 4
09181-30184
WASHER,THRUST
€ 4.00
5
5153049000291
ref: 5
51500-49810-291
BRACKET,HEADLAMP,RIGHT
€ 133.50
6
5154049000291
ref: 6
BRACKET,HEADLAMP,LEFT
€ 34.50
7
5155349000
ref: 7
51553-34300
CUSHION,HEADLAMP BRACKET
€ 4.50
8
5135631700
ref: 8
WASHER
€ 9.50
9
5135345000
ref: 9
NUT,FR FORK UPR BRACKET
€ 10.50
10
0110708508
ref: 10
01500-08507
BOLT 8X50
€ 3.00
11
0831311088
ref: 11
08313-10087
NUT
€ 2.50
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
0832221088
ref: 13
08322-01087
WASHER
€ 2.00
14
0110710558
ref: 14
01500-1055A
BOLT 10X55
€ 3.50
15
0832221108
ref: 15
08322-01107
WASHER
€ 2.50
16
0832121108
ref: 16
08321-01107
LOCK WASHER
€ 2.00
17
0831311108
ref: 17
08313-10107
NUT, LOWER LH
€ 2.50
18
0110708558
ref: 18
01500-08557
BOLT 8X55
€ 3.00
19
0832221088
ref: 19
08322-01087
WASHER
€ 2.00
20
5145849000
ref: 20
NUT,FR FORK INNER TUBE
€ 5.00
21
5621129320291
ref: 21
HOLDER,HANDLE(BLACK)
€ 12.00
22
0120408357
ref: 22
BOLT
€ 3.50
23
0832121088
ref: 23
08321-01087
LOCK WASHER
€ 2.00
24
5163128000
ref: 24
NUT,STEERING STEM(25X44X10)
€ 12.50
25
0926525008
ref: 25
09265-25019
TAPER,ROLLER BEARING
€ 48.50
26
5164349001
ref: 26
51643-49002
DUST SEAL,STEERING,UPPER
€ 7.50
27
5187049000
ref: 27
COVER,FRONT FORK
€ 29.00
28
5617045100
ref: 28
PAD,HANDLEBAR
€ 29.50
29
6828145100
ref: 29
EMBLEM,HANDLE COVER PAD
€ 14.00
30
0914803002
ref: 30
NUT
€ 3.00
31
0211205108
ref: 31
02112-05107
SCREW
€ 2.00
32
0832121058
ref: 32
08321-0105A
LOCK WASHER
€ 2.00
33
0832221058
ref: 33
08322-01057
WASHER
€ 2.50
34-1
5840045000
ref: 34-1
58400-45100
CABLE ASSEMBLY,STARTER
€ 25.00
34-2
5840045100
ref: 34-2
CABLE ASSY,STARTER
€ 25.00
