FRONT BRAKE HOSE (GS1000EC
GS1000EN 1978 (C) USA (E03)

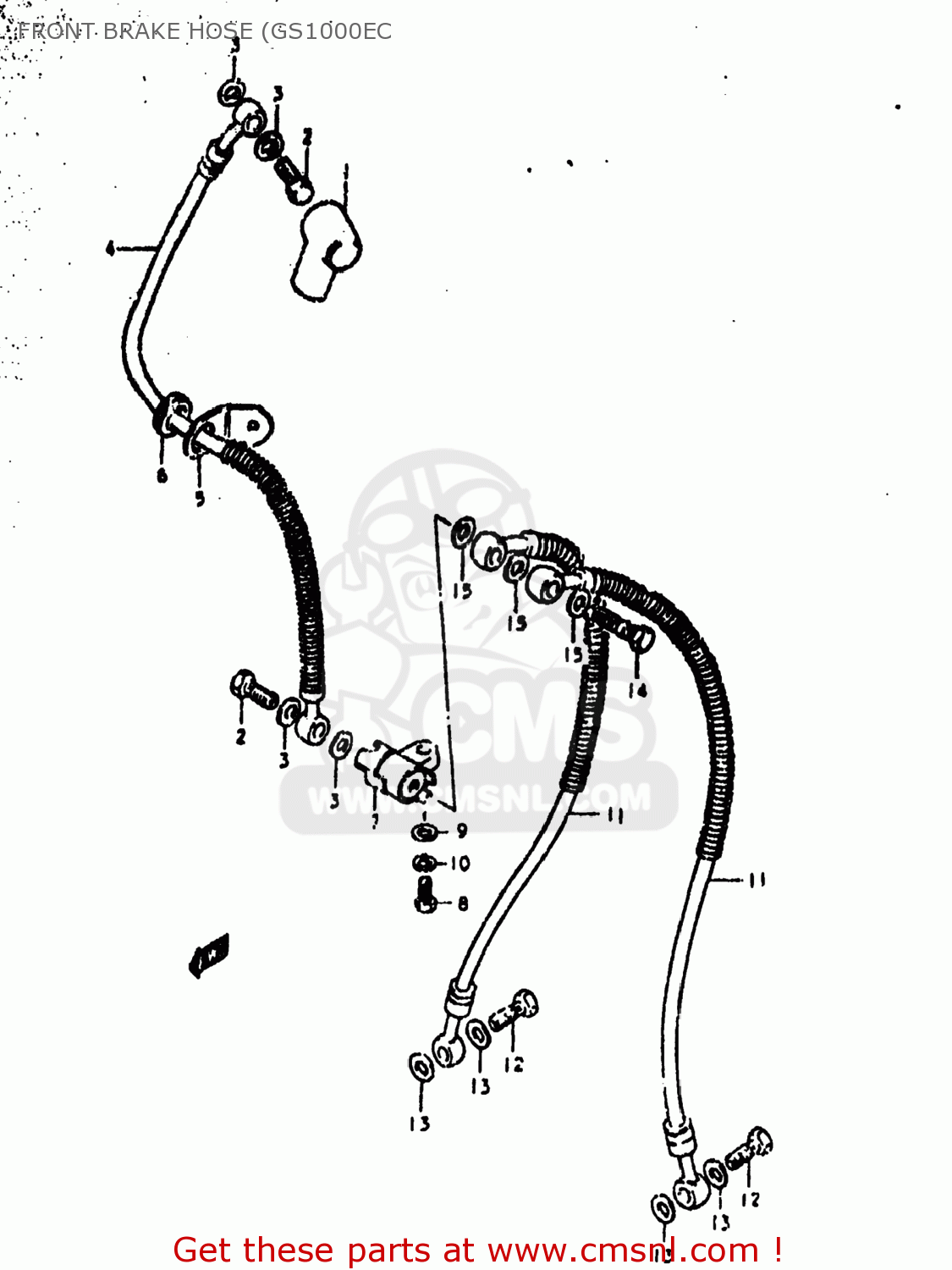

Front brake hose (gs1000ec diagram GS1000EN 1978 (C) USA (E03)
FRONT BRAKE HOSE (GS1000EC GS1000EN 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5971118400
ref: 1
59711-49001
BOOT,MASTER CYLINDER
€ 8.50
2
0936010003
ref: 2
09360-10017
BOLT UNION
€ 6.50
3
0916110005
ref: 3
09161-10009
WASHER
€ 2.00
4
5948049000
ref: 4
59480-49400
HOSE,FRONT BRAKE
€ 72.00
5
5924331000
ref: 5
GUIDE,BRAKE HOSE
€ 11.50
6
0930814007
ref: 6
GROMMET
€ 4.00
7
5949145000
ref: 7
59491-45001
JOINT,BRAKE HOSE
€ 29.00
8
0110706208
ref: 8
01500-06207
BOLT
€ 2.00
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
0832121068
ref: 10
08321-01067
LOCK WASHER
€ 2.50
11
5924045000
ref: 11
59240-49400
HOSE,FRONT BRAKE
€ 66.50
12
0936010003
ref: 12
09360-10017
BOLT UNION
€ 6.50
13
0916110005
ref: 13
09161-10009
WASHER
€ 2.00
14
0936010005
ref: 14
09360-10018
BOLT UNION
€ 7.00
15
0916110005
ref: 15
09161-10009
WASHER
€ 2.00
