REAR WHEEL (GS1000EC
GS1000EN 1978 (C) USA (E03)

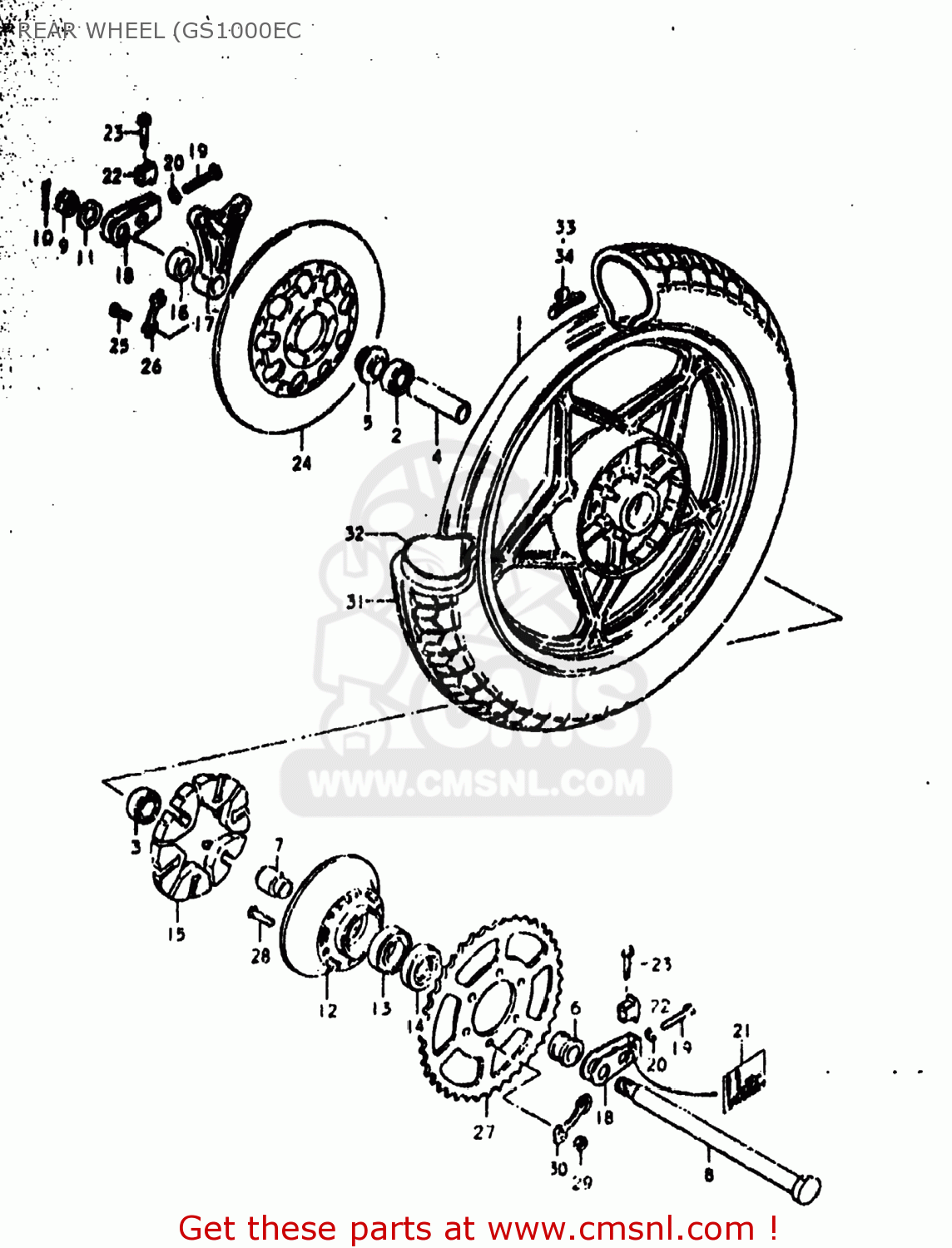

Rear wheel (gs1000ec diagram GS1000EN 1978 (C) USA (E03)
REAR WHEEL (GS1000EC GS1000EN 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411149000
ref: 1
64111-49001-12U
WHEEL,REAR
€ 627.00
2-1
0813362040
ref: 2-1
08133-62047
BEARING, RH
€ 22.50
2-2
0813362047
ref: 2-2
BEARING WHEEL REAR(20X47X14)
€ 22.50
3-1
0815362040
ref: 3-1
09262-20042
BEARING, LH
€ 21.00
3-2
0815362047
ref: 3-2
09262-20042
BEARING, LH
€ 21.00
4
0918020062
ref: 4
SPACER(20.5X28X88)
€ 11.50
5
6474045001
ref: 5
64740-45002
SPACER,REAR AXLE
€ 15.00
6
0918020054
ref: 6
SPACER(20X33X28.3)
€ 13.00
7
6473331000
ref: 7
64733-3100V
SPACER,REAR HUB BEARING
€ 20.00
8
6471149000
ref: 8
64711-4900V
AXLE,REAR
€ 59.00
9
0831431188
ref: 9
08314-3118A
NUT 18MM
€ 5.00
10
0411140308
ref: 10
04111-4030A
PIN,COTTER
€ 1.50
11
0916019008
ref: 11
WASHER(19X34X4)
€ 3.00
12
6461131000
ref: 12
64611-31003
DRUM,REAR SPROCKET MOUNT
€ 140.00
13-1
0811363054
ref: 13-1
09262-25073
BEARING
€ 21.50
13-2
0811363057
ref: 13-2
09262-25073
BEARING
€ 21.50
14
0928533001
ref: 14
SEAL,OIL(33X62X7)
€ 20.00
15
6465131000
ref: 15
64651-31001
ABSORBER,REAR HUB SHOCK
€ 9.50
16
0918020060
ref: 16
SPACER(20X38X12)
€ 6.50
17-1
6972147010
ref: 17-1
69721-47011
BRACKET,REAR CALIPER
€ 29.00
17-2
6972147011
ref: 17-2
BRACKET,RR,CALIPER
€ 29.00
18
6141031000
ref: 18
61410-31001
ADJUSTER,CHAIN
€ 50.00
19
0910408006
ref: 19
09104-08034
BOLT
€ 3.00
20
0831012088
ref: 20
08310-00087
NUT
€ 2.00
21
6837749000
ref: 21
LABEL,CHAIN WEAR INDICATOR
€ 3.50
22
6143331000
ref: 22
61433-3100V
SUPPORTER,CHAIN ADJUST
€ 22.50
23
0151708408
ref: 23
01550-08407
BOLT (8X40)
€ 3.50
24
5921018401
ref: 24
59210-18402
DISC,BRAKE
€ 208.50
25
0910008094
ref: 25
BOLT(8X30)
€ 2.50
26
0916908016
ref: 26
WASHER
€ 3.50
27
6451149000
ref: 27
64511-49002
SPROCKET,REAR
€ 114.00
28
0911910002
ref: 28
09105-10001
BOLT
€ 3.50
29
0831012108
ref: 29
08310-00107
NUT
€ 2.50
30
0916910007
ref: 30
WASHER
€ 7.50
31
6510049010
ref: 31
65100-49230
TIRE
€ 258.00
32
6520049010
ref: 32
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
33
5541147001
ref: 33
BALANCER,WHEEL
€ 4.00
34
5541247001
ref: 34
BALANCER,WHEEL
€ 3.50
