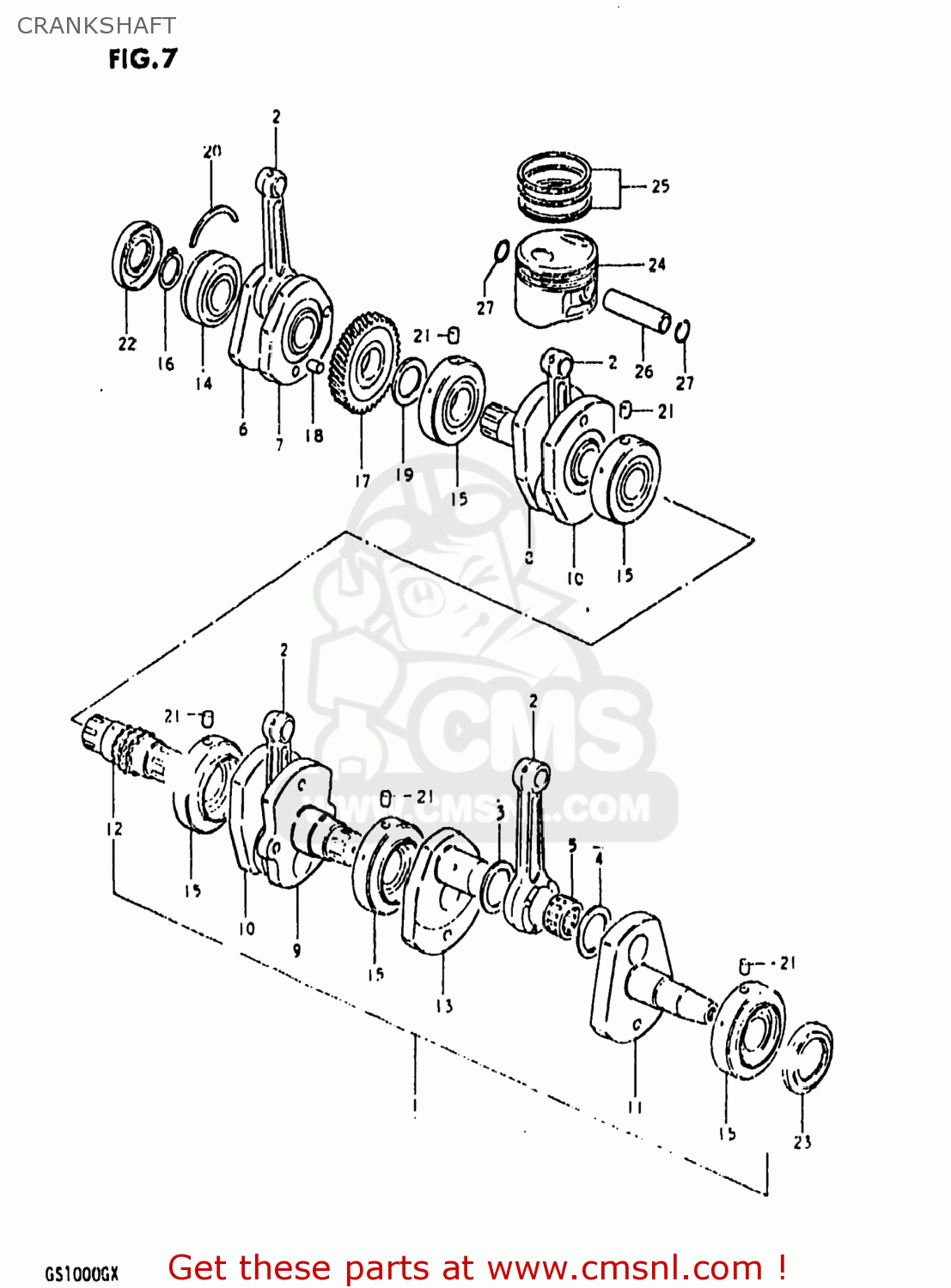

CRANKSHAFT

ref

part #

description

quantity

1

1220049010
ref: 1
12200-49011

CRANKSHAFT ASSEMBLY

€ 469.00

2

1216149000
ref: 2

ROD,CONNECTING

€ 125.50

3

0916029008
ref: 3

WASHER (29X48X2)

€ 6.00

4

0916029009
ref: 4

WASHER (29X48X1)

€ 5.50

5

0926329002
ref: 5

BEARING(29X39X20)

€ 28.50

6

1222049000
ref: 6

CRANKSHAFT

€ 0.00

7

1223149010
ref: 7

CRANKSHAFT

€ 0.00

8

1224149010
ref: 8

CRANKSHAFT

€ 0.00

9

1227149010
ref: 9
12241-49002

CRANKSHAFT

€ 0.00

10

1225049000
ref: 10

WEB,CRANK,MIDDLE

€ 127.50

11

1226149001
ref: 11

CRANKSHAFT,LEFT

€ 135.00

12

1228149002
ref: 12

SHAFT,TIMING CHAIN DRIVE

€ 92.50

13

1223049000
ref: 13

WEB,CRANK

€ 153.00

14

0926230033
ref: 14

BEARING(30X72X19)

€ 47.00

15

0926432005
ref: 15
09264-32009

BEARING

€ 138.00

16

0833111308
ref: 16
08331-3130A

CIRCLIP,30MM

€ 3.00

17

2111049010
ref: 17

GEAR,PRIMARY DRIVE

€ 0.00

18

0422108129
ref: 18

PIN

€ 2.00

19

0916032008
ref: 19

WASHER

€ 0.00

20

0939072004
ref: 20

C RING

€ 3.00

21

0422107129
ref: 21

PIN

€ 1.50

22

0928330021
ref: 22

SEAL,OIL(30X72X11)

€ 22.00

23

0928948002
ref: 23

SEAL,OIL(47.3X60X6.5)

€ 12.00

24-1

1211149001
ref: 24-1

PISTON

€ 103.00

24-2

1211149001050
ref: 24-2
12103-49810-050

PISTON 0.50

€ 136.50

24-3

1211149001100
ref: 24-3

PISTON(OS:1.0)

€ 142.50

25-1

1214049001
ref: 25-1

RING SET,PISTON

€ 73.50

25-2

1214049001050
ref: 25-2

RING SET,PISTON (OS:0.5)

€ 53.50

25-3

1214049001100
ref: 25-3
12140-44110

RING SET,PISTON (OS:1.0)

€ 61.50

26

1215115002
ref: 26
12151-13A00-0A0

PIN,PISTON (18MM)

€ 14.50

27

0938118002
ref: 27

CIRCLIP

€ 1.50
