CYLINDER

GS1000G 1981 (X) USA (E03)

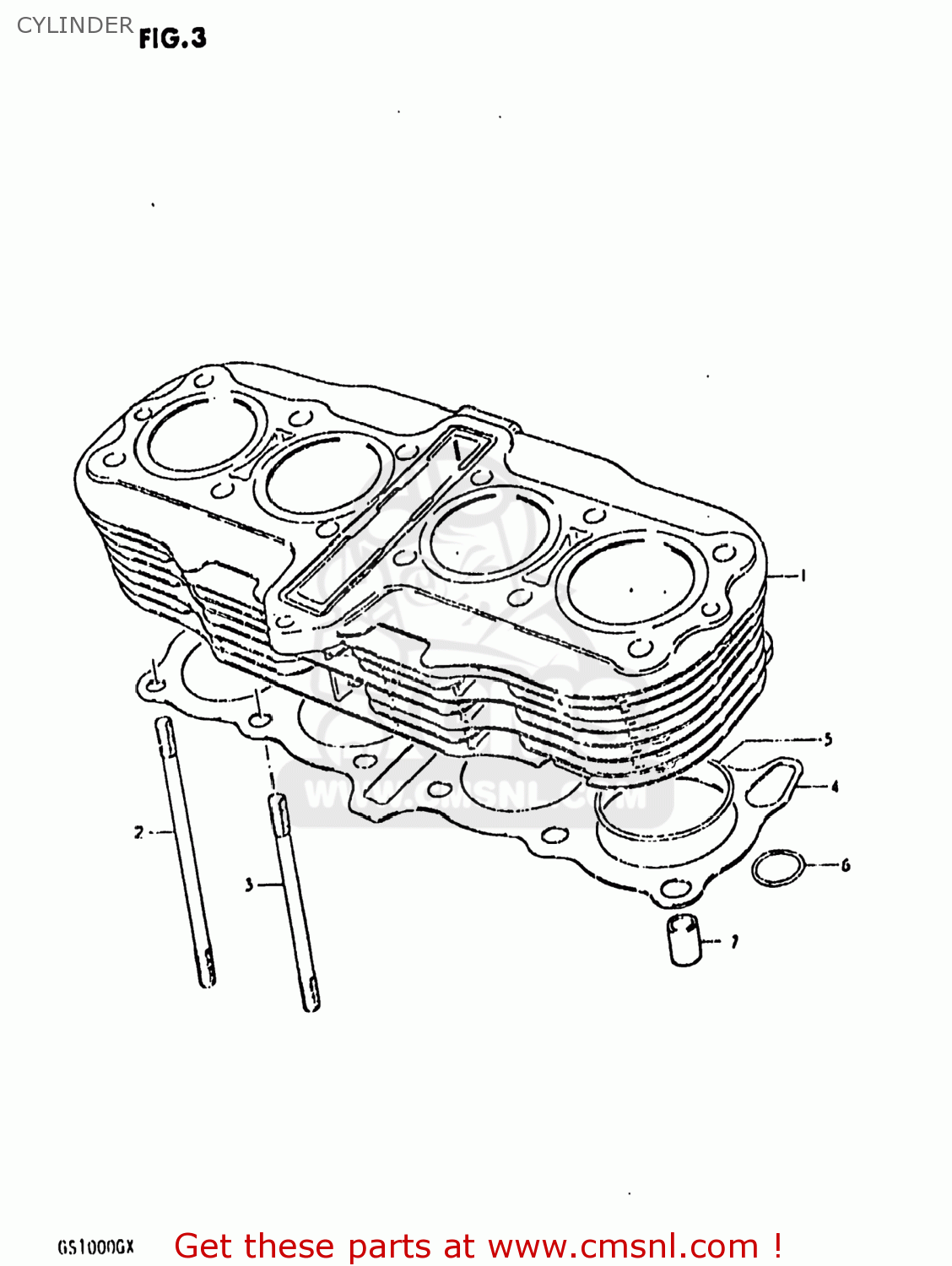

Cylinder diagram GS1000G 1981 (X) USA (E03)

CYLINDER GS1000G 1981 (X) USA (E03)

CYLINDER GS1000G 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121049002
ref: 1-1
11210-49003

CYLINDER

€ 891.00

1-2

1121049003
ref: 1-2

CYLINDER

€ 891.00

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3
09108-10112

STUD

€ 9.00

4

1124149010
ref: 4
11241-49401-H17

GASKET,CYLINDER (MCA)

€ 56.50

5

0928074002
ref: 5

O RING(D:2,ID:74)

€ 6.00

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00

7

0920613001
ref: 7
04211-13189

PIN

€ 2.50
