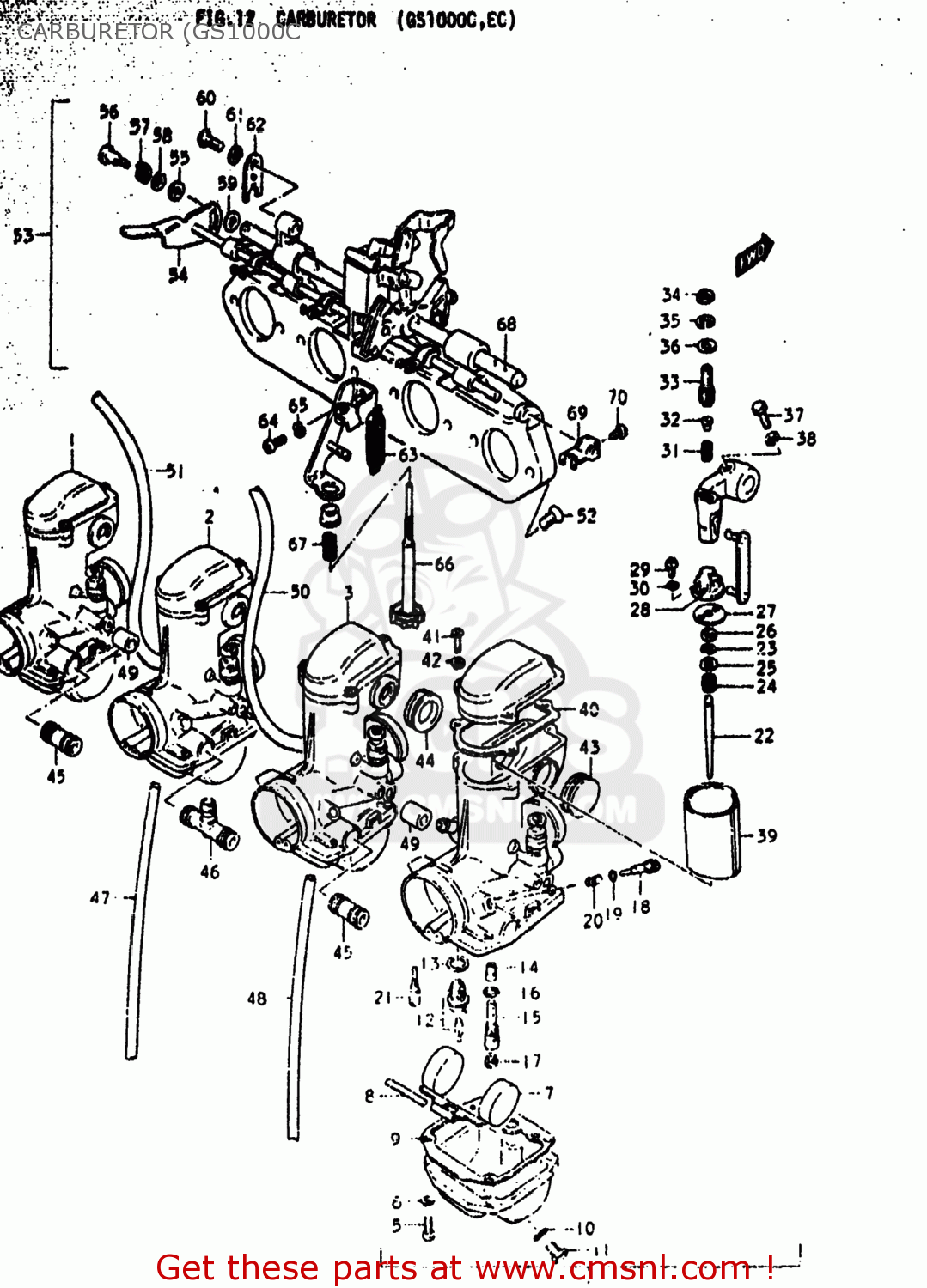

CARBURETOR (GS1000C

ref

part #

description

quantity

0

1320049000
ref: 0

CARBURETOR ASSEMBLY

€ 414.00

1

1320149000
ref: 1

CARBURETOR ASSEMBLY

€ 98.00

2

1320249000
ref: 2

CARBURETOR ASSEMBLY

€ 0.00

3

1320349000
ref: 3

CARBURETOR ASSEMBLY

€ 108.00

4

1320449000
ref: 4

CARBURETOR ASSEMBLY

€ 186.50

5

0211204168
ref: 5
02112-0416A

SCREW

€ 1.00

6

0832121048
ref: 6
08321-0104A

LOCK WASHER

€ 2.00

7

1325243010
ref: 7

FLOAT

€ 41.00

8

1325401010
ref: 8

PIN,FLOAT

€ 3.00

9

1325143011
ref: 9
13251-43010

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

10

1324643010
ref: 10

O RING

€ 4.00

11

1324745010
ref: 11

SCREW

€ 7.50

12

1337045010
ref: 12
13370-18111

VALVE ASSEMBLY,NEEDLE

€ 51.50

13

1339258600
ref: 13

GASKET,VALVE SEAT (NAS)

€ 2.00

14

0949400224
ref: 14

JET,NEEDLE

€ 10.00

15

1338545010
ref: 15

PIPE,BLEEDER

€ 36.00

16

1324643010
ref: 16

O RING

€ 4.00

17

0949195005
ref: 17

JET,MAIN(95)

€ 8.50

18

1326945010
ref: 18
13269-49020

SCREW,PILOT AIR

€ 11.50

19

1329533010
ref: 19

O RING

€ 4.50

20

1326801010
ref: 20

SPRING

€ 3.50

21

0949215005
ref: 21

JET,PILOT

€ 15.00

22

1338345030
ref: 22

NEEDLE,JET

€ 19.50

23

1339410010
ref: 23

CLIP

€ 4.50

24

1338847010
ref: 24

SPRING

€ 7.00

25

1338247010
ref: 25

WASHER,JET NEEDLE

€ 3.00

26

1338747010
ref: 26

RING

€ 7.50

27

1358147010
ref: 27

PLATE,THROTTLE VALVE

€ 5.50

28

1339845010
ref: 28

CONNECTOR

€ 18.00

29

0211103148
ref: 29
02112-0316B

SCREW

€ 1.50

30

0832121033
ref: 30
08321-2103B

WASHER,LOCK

€ 1.50

31

1354345010
ref: 31

SPRING

€ 2.50

32

1354443010
ref: 32

PIN,CARBURETOR

€ 2.50

33

1354845010
ref: 33

SCREW

€ 10.00

34

0831011055
ref: 34

NUT

€ 0.00

35

0832121058
ref: 35
08321-0105A

LOCK WASHER

€ 2.00

36

0832221058
ref: 36
08322-01057

WASHER

€ 2.50

37

0110405168
ref: 37
01500-0516B

BOLT

€ 1.50

38

0832121058
ref: 38
08321-0105A

LOCK WASHER

€ 2.00

39

1355145030
ref: 39

VALVE,THROTTLE

€ 39.00

40

1326643010
ref: 40

GASKET (NAS)

€ 7.00

41

0211204168
ref: 41
02112-0416A

SCREW

€ 1.00

42

0832121048
ref: 42
08321-0104A

LOCK WASHER

€ 2.00

43

1367843010
ref: 43

PIPE,DELIVERY

€ 4.50

44

1355645010
ref: 44

SEAL

€ 15.50

45

1368545030
ref: 45

NIPPLE

€ 24.50

46

1368545040
ref: 46

NIPPLE

€ 28.00

47

1368345010
ref: 47
13683-45070

HOSE

€ 10.00

48

1368345010
ref: 48
13683-45070

HOSE

€ 10.00

49

1368345030
ref: 49
09352-60103-600

HOSE

€ 18.00

50

1368345040
ref: 50
09355-45855-600

HOSE

€ 14.00

51

1368345050
ref: 51
09355-45855-600

HOSE 4.5X8X390

€ 14.00

52

0212206148
ref: 52
09126-06007

SCREW

€ 2.50

53

1321049000
ref: 53

CARBURETOR ASSEMBLY

€ 0.00

54

1341049000
ref: 54

SHAFT,STARTER

€ 43.50

55

1343233110
ref: 55

WASHER

€ 5.00

56

1343333110
ref: 56

SCREW,STARTER LEVER

€ 5.50

57

1342643010
ref: 57

SPRING

€ 4.50

58

1361543010
ref: 58

WASHER,STARTER SHAFT

€ 2.50

59

1361545010
ref: 59

WASHER,STARTER SHAFT

€ 3.50

60

0211205148
ref: 60

SCREW

€ 0.00

61

0832121058
ref: 61
08321-0105A

LOCK WASHER

€ 2.00

62

1355733110
ref: 62

GASKET

€ 3.50

63

1357349000
ref: 63
13573-45010

SPRING

€ 23.00

64

0211205148
ref: 64

SCREW

€ 0.00

65

0832121058
ref: 65
08321-0105A

LOCK WASHER

€ 2.00

66

1326749000
ref: 66

ADJUSTER

€ 0.00

67

1326833110
ref: 67

SPRING,THROTTLE SCREW

€ 4.00

68

1355043010
ref: 68

SHAFT ASSEMBLY

€ 44.50

69

1342243010
ref: 69

LEVER, STARTER

€ 5.50

70

1360531210
ref: 70

SCREW

€ 3.00
