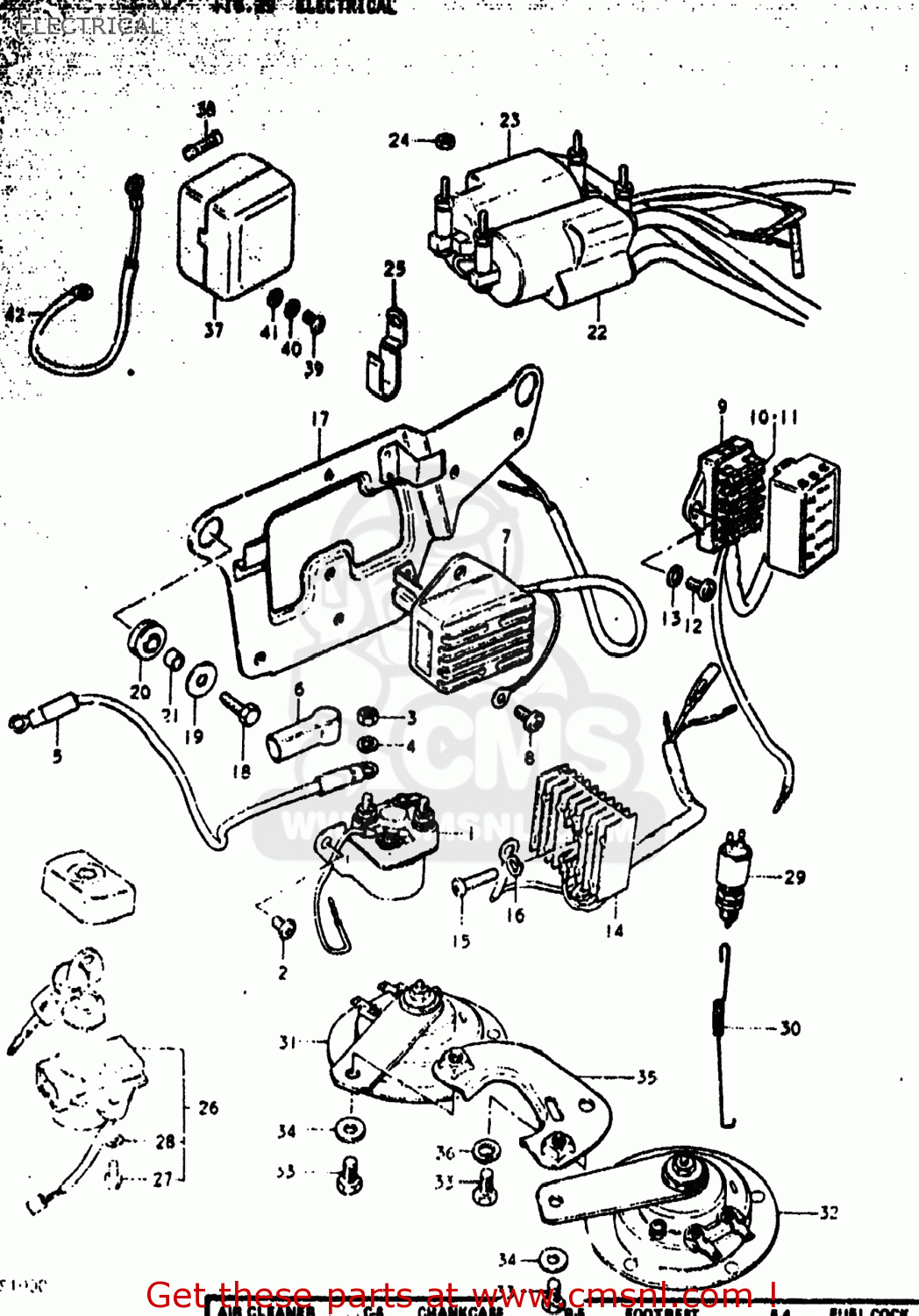

ELECTRICAL

ref

part #

description

quantity

1

3180037020
ref: 1

RELAY ASSY,STARTING MOTOR

€ 105.00

2

0211206108
ref: 2
02112-06107

SCREW

€ 1.50

3

0831022068
ref: 3
08310-00067

NUT 6MM

€ 2.50

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

3385049000
ref: 5
33850-03201

WIRE,STARTER MOTOR LEAD

€ 8.50

6

3186135100
ref: 6
31861-48B10

CAP,STARTER RELAY

€ 4.50

7

3250049010
ref: 7

REGULATOR ASSY,VOLTAGE

€ 251.50

8

0211206108
ref: 8
02112-06107

SCREW

€ 1.50

9

3674049000
ref: 9
36740-49X00

BOX ASSEMBLY,FUSE

€ 81.50

10

0948110001
ref: 10

FUSE(10A)

€ 2.00

11

0948115001
ref: 11

FUSE(15A)

€ 3.00

12

0211206128
ref: 12
02112-06127

SCREW 6X12

€ 2.00

13

0832211068
ref: 13
08322-0106B

WASHER 6MM

€ 2.00

14

3280049030
ref: 14
32800-44010

RECTIFIER ASSEMBLY

€ 269.00

15

0211206258
ref: 15
02112-06257

SCREW

€ 2.00

16

0832121068
ref: 16
08321-01067

LOCK WASHER

€ 2.50

17-1

4741049000
ref: 17-1
47410-49002

HOLDER COMP,ELECTRONIC PARTS

€ 0.00

17-2

4741049002
ref: 17-2

HOLDER COMP,ELECTRONIC PARTS

€ 0.00

18

0110706168
ref: 18
01500-06167

BOLT, UPPER

€ 3.00

19

0916006012
ref: 19
09160-06054

WASHER(6,5X22X1.6)

€ 2.00

20

0932008013
ref: 20

CUSHION

€ 4.00

21

0918006001
ref: 21

SPACER(6.2X8.3X5.7)

€ 2.00

22

3341045010
ref: 22
33410-45012

COIL ASSEMBLY,IGNITION

€ 152.50

23

3342045010
ref: 23
33410-45012

COIL ASSEMBLY,IGNITION

€ 152.50

24

0831011068
ref: 24
08310-00067

NUT

€ 2.50

25

0940306307
ref: 25

CLAMP

€ 4.50

26

3710049010
ref: 26
37100-49012

LOCK ASSEMBLY,STEERING

€ 132.00

27

3715247010
ref: 27
07130-0616B

BOLT

€ 3.00

28

0832121068
ref: 28
08321-01067

LOCK WASHER

€ 2.50

29

3761053011
ref: 29

SWITCH ASSY,BRAKE LAMP

€ 34.50

30

0944306018
ref: 30
09443-06018-XC0

SPRING

€ 4.50

31

3850064130
ref: 31
38502-49001

HORN ASSY

€ 77.00

32

3850149000
ref: 32
38501-47001

HORN ASSEMBLY,HIGH PITCH

€ 82.50

33-1

0110708128
ref: 33-1
01500-08127

BOLT 8X12

€ 2.50

33-2

0910708218
ref: 33-2

BOLT C&EC,N&EN; 8x14

€ 0.00

34

0832211088
ref: 34
08322-01087

WASHER

€ 2.00

35-1

3859049000
ref: 35-1
38590-49002

BRACKET,HORN

€ 3.50

35-2

3859049002
ref: 35-2

BRACKET,HORN

€ 3.50

36

0832121088
ref: 36
08321-01087

LOCK WASHER

€ 2.00

37

3885047000
ref: 37

TERMINAL ASSEMBLY,POWER SO

€ 94.00

38

0948110001
ref: 38

FUSE(10A)

€ 2.00

39

0211206168
ref: 39
02112-06167

SCREW

€ 2.50

40

0832121068
ref: 40
08321-01067

LOCK WASHER

€ 2.50

41

0832221068
ref: 41
08322-01067

WASHER

€ 2.00

42

3685147000
ref: 42

WIRE,POWER SOURCE LEAD

€ 8.50

43

3715549010
ref: 43
37155-49011

CAP,IGNITION SWITCH

€ 9.00
