COWLING (GS1150ES3/ESE)
GS1150 1985 (F) USA (E03)

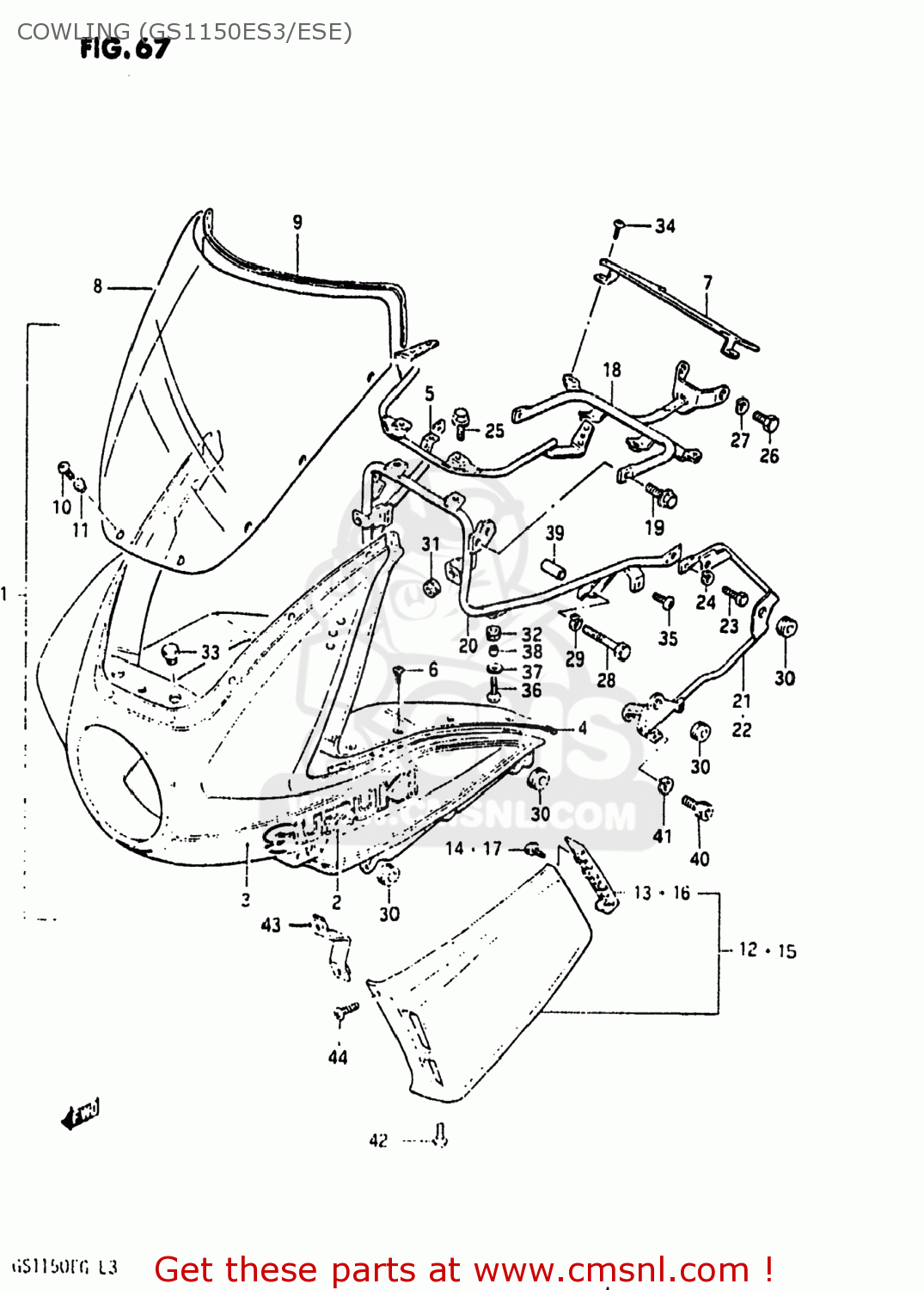

Cowling (gs1150es3/ese) diagram GS1150 1985 (F) USA (E03)
COWLING (GS1150ES3/ESE) GS1150 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440000A0191J
ref: 1-1
94400-00A01
COWLING ASSEMBLY
€ 1,245.00
1-2
9440000A017ED
ref: 1-2
94400-00A01
COWLING ASSEMBLY
€ 1,245.00
2
6811100A1060D
ref: 2
EMBLEM
€ 22.00
3-1
6819000A1093K
ref: 3-1
TAPE SET,COWLING
€ 35.00
3-2
6819000A107EL
ref: 3-2
TAPE SET,COWLING
€ 82.00
4
9442000A00
ref: 4
94420-00A01
PANEL,COWLING
€ 75.00
5
9456000A00
ref: 5
BRACE,COWLING BODY
€ 35.00
6
0323104104
ref: 6
03221-0410A
SCREW, PANEL
€ 2.00
7
9442600A00
ref: 7
94426-00A01
COVER,METER,REAR
€ 26.00
8
9461100A10
ref: 8
WINDOW,COWLING
€ 464.50
9
9463100A00
ref: 9
94631-44110
MOLDING COWLING
€ 18.00
10
0913905023
ref: 10
SCREW(5X20)
€ 2.00
11
0932005008
ref: 11
CUSHION
€ 5.00
12-1
9443000A0104Y
ref: 12-1
94430-00A01-13L
COVER,COWLING SIDE,RIGHT
€ 166.50
12-2
9443000A0117R
ref: 12-2
94430-00A01-13L
COVER,COWLING SIDE,RIGHT
€ 166.50
13
9443200A00
ref: 13
PANEL,COWL SIDE COVER RR RH
€ 8.00
14
0354104126
ref: 14
03541-0412A
SCREW
€ 1.50
15-1
9444000A0104Y
ref: 15-1
94440-00A01-13L
COVER,COWLING SIDE,LEFT
€ 120.50
15-2
9444000A0117R
ref: 15-2
94440-00A01-13L
COVER,COWLING SIDE,LEFT
€ 120.50
16
9444200A00
ref: 16
PANEL,COWLING SIDE COVER
€ 7.50
17
0354104126
ref: 17
03541-0412A
SCREW
€ 1.50
18
9451000A00
ref: 18
BRACE,COWLING,FRONT
€ 45.00
19
0151706163
ref: 19
01550-0616A
BOLT
€ 2.50
20
9452000A00
ref: 20
BRACE,COWL RR
€ 118.00
21
9453000A00
ref: 21
94530-00A01
BRACE,COWLING SIDE,RIGHT
€ 27.50
22
9454000A00
ref: 22
94540-00A01
BRACE,COWLING SIDE,LEFT
€ 27.50
23
0110706165
ref: 23
01500-0616A
BOLT 6X16
€ 2.00
24
0832121064
ref: 24
08321-0106A
WASHER,LOCK
€ 2.00
25
0151706163
ref: 25
01550-0616A
BOLT
€ 2.50
26
0110708165
ref: 26
01500-0816B
BOLT
€ 2.00
26
0110708165
ref: 26
01500-0816B
BOLT
€ 2.00
27
0832121084
ref: 27
08321-0108A
WASHER,LOCK,8.
€ 2.50
27
0832121084
ref: 27
08321-0108A
WASHER,LOCK,8.
€ 2.50
28
0110708505
ref: 28
01500-0850B
BOLT
€ 3.00
28
0110708505
ref: 28
01500-0850B
BOLT
€ 3.00
29
0832121084
ref: 29
08321-0108A
WASHER,LOCK,8.
€ 2.50
29
0832121084
ref: 29
08321-0108A
WASHER,LOCK,8.
€ 2.50
30
0932008018
ref: 30
CUSHION
€ 4.00
30
0932008018
ref: 30
CUSHION
€ 4.00
31
0932008013
ref: 31
CUSHION
€ 4.00
31
0932008013
ref: 31
CUSHION
€ 4.00
32
0932009016
ref: 32
CUSHION
€ 2.50
32
0932009016
ref: 32
CUSHION
€ 2.50
33
0925018003
ref: 33
PLUG(OD:22)
€ 2.00
33
0925018003
ref: 33
PLUG(OD:22)
€ 2.00
34
0214205105
ref: 34
02142-0510B
SCREW
€ 2.50
34
0214205105
ref: 34
02142-0510B
SCREW
€ 2.50
35
0214206125
ref: 35
02142-0612A
SCREW 6X12
€ 2.00
35
0214206125
ref: 35
02142-0612A
SCREW 6X12
€ 2.00
36
0214206205
ref: 36
02142-0620A
SCREW, CENTER
€ 2.00
36
0214206205
ref: 36
02142-0620A
SCREW, CENTER
€ 2.00
37
0916006056
ref: 37
WASHER(6.5X18X1)
€ 2.00
37
0916006056
ref: 37
WASHER(6.5X18X1)
€ 2.00
38
0918006011
ref: 38
09180-06263
SPACER (6.1X9X9)
€ 2.00
38
0918006011
ref: 38
09180-06263
SPACER (6.1X9X9)
€ 2.00
39
0918008091
ref: 39
09180-08207
SPACER (8.6X13.8X35)
€ 3.00
39
0918008091
ref: 39
09180-08207
SPACER (8.6X13.8X35)
€ 3.00
40
0711008165
ref: 40
07130-0816A
BOLT
€ 3.00
40
0711008165
ref: 40
07130-0816A
BOLT
€ 3.00
41
0832121084
ref: 41
08321-0108A
WASHER,LOCK,8.
€ 2.50
41
0832121084
ref: 41
08321-0108A
WASHER,LOCK,8.
€ 2.50
42
0913905029
ref: 42
09139-05502
SCREW
€ 1.50
42
0913905029
ref: 42
09139-05502
SCREW
€ 1.50
43
9455000A00
ref: 43
BRACE,SIDE,FRONT
€ 4.00
43
9455000A00
ref: 43
BRACE,SIDE,FRONT
€ 4.00
44
0214206167
ref: 44
SCREW
€ 2.00
44
0214206167
ref: 44
SCREW
€ 2.00
