STEERING STEM (GS1150ES3/ESE/ESF)
GS1150 1985 (F) USA (E03)

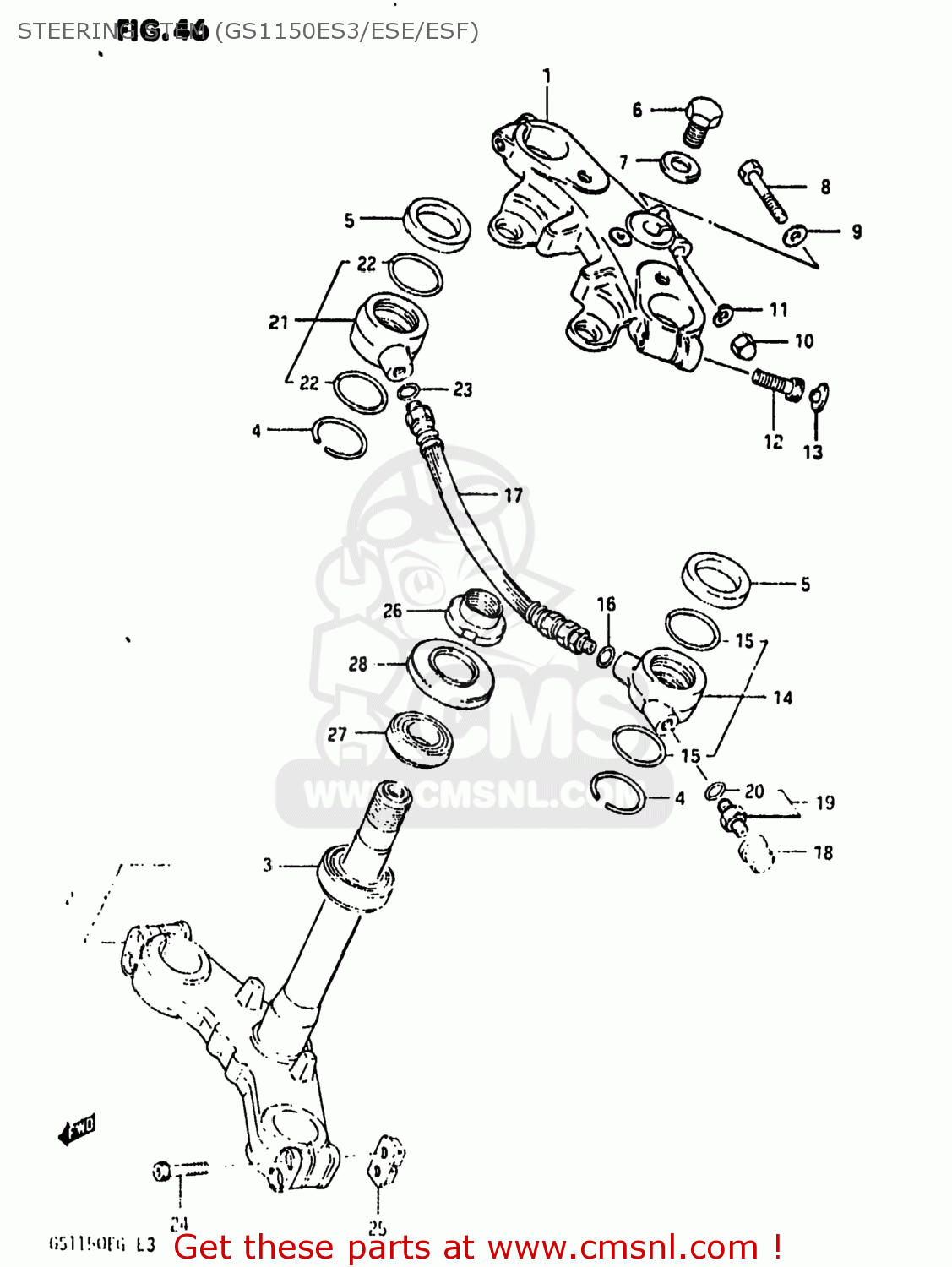

Steering stem (gs1150es3/ese/esf) diagram GS1150 1985 (F) USA (E03)
STEERING STEM (GS1150ES3/ESE/ESF) GS1150 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5131100A0015T
ref: 1
HEAD,STEERING STEM
€ 171.00
2
5141000A5015T
ref: 2
STEM,STEERING
€ 302.50
3
0926530005
ref: 3
09265-30009
BEARING
€ 49.50
4
5143849540
ref: 4
SNAP RING
€ 2.00
5
5155300A40
ref: 5
GASKET
€ 0.00
6
5135345380
ref: 6
51352-43530
NUT,STEM HEAD
€ 8.50
7
5135649400
ref: 7
51356-43530
WASHER,STEERING STEM
€ 4.00
8
0110708505
ref: 8
01500-0850B
BOLT
€ 3.00
9
0832211084
ref: 9
08322-0108A
WASHER
€ 1.50
10
0831311085
ref: 10
08313-10083
NUT,M8X1.25X12
€ 2.00
11
0832121084
ref: 11
08321-0108A
WASHER,LOCK,8.
€ 2.50
12
5135200A00
ref: 12
BOLT,FORK INNER TUBE FITTING
€ 6.00
13
0925008010
ref: 13
CAP(OD:20)
€ 2.50
14
5143200A1015T
ref: 14
JOINT,AIR,LEFT
€ 29.50
15-1
5143649470
ref: 15-1
51356-34370
O RING
€ 5.00
15-2
5135634370
ref: 15-2
O RING
€ 5.00
16
5111714210
ref: 16
09280-06005
O-RING
€ 2.50
17
5143300A10
ref: 17
JOINT,AIR TUBE
€ 37.00
18
5129449020
ref: 18
CAP,FRONT FORK AIR VALVE
€ 8.00
19
5129343400
ref: 19
62274-14400
VALVE,FRONT FORK AIR
€ 8.00
20
5111714210
ref: 20
09280-06005
O-RING
€ 2.50
21
5143100A1015T
ref: 21
JOINT,AIR,RIGHT
€ 26.00
22-1
5143649470
ref: 22-1
51356-34370
O RING
€ 5.00
22-2
5135634370
ref: 22-2
O RING
€ 5.00
23
5111714210
ref: 23
09280-06005
O-RING
€ 2.50
24
0711008455
ref: 24
07130-0845B
BOLT 8X45
€ 3.00
25
5145849000
ref: 25
NUT,FR FORK INNER TUBE
€ 5.00
26
5163134200
ref: 26
NUT,STEERING STEM
€ 23.00
27
0926525008
ref: 27
09265-25019
TAPER,ROLLER BEARING
€ 48.50
28
5164340502
ref: 28
DUST SEAL,STEERING UPR
€ 8.00
