CYLINDER (GS1150ES3/ESE ~E.NO.101424)

GS1150EF2 1984 (E) USA (E03)

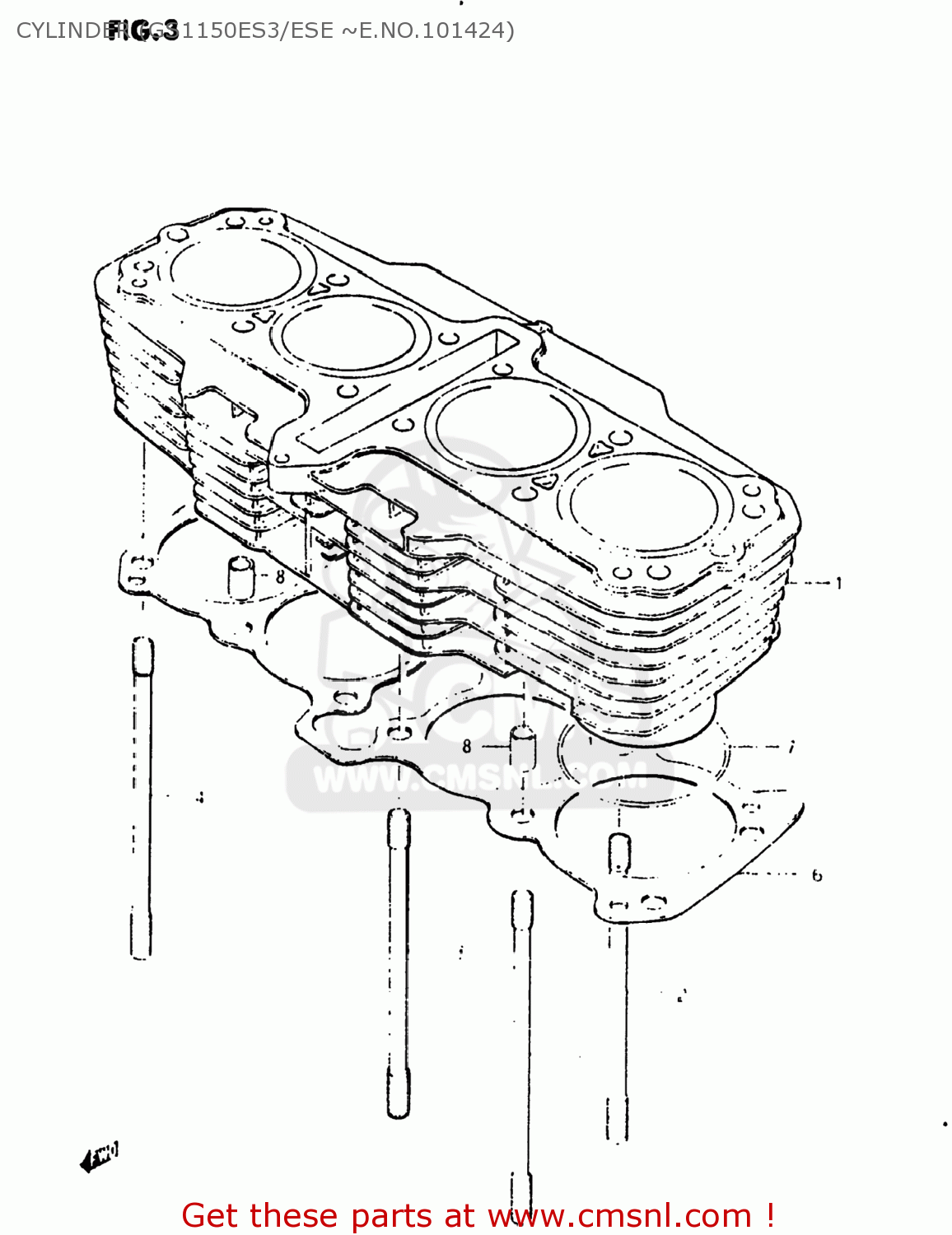

Cylinder (gs1150es3/ese ~e.no.101424) diagram GS1150EF2 1984 (E) USA (E03)

prices are in EUR

ref

part #

description

quantity

1121000A05
ref: 1
11210-00A06

CYLINDER

€ 1,033.00

0910810060
ref: 2

BOLT,STUD

€ 0.00

0910810057
ref: 3
09108-10069

STUD

€ 7.00

0910810028
ref: 4
09108-10112

STUD

€ 9.00

0910810068
ref: 5

BOLT,STUD

€ 6.50

1124100A02
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 20.50

0928077002
ref: 7

O RING(D:2,ID:77)

€ 6.00

0920613006
ref: 8
09206-13017

PIN

€ 9.00
